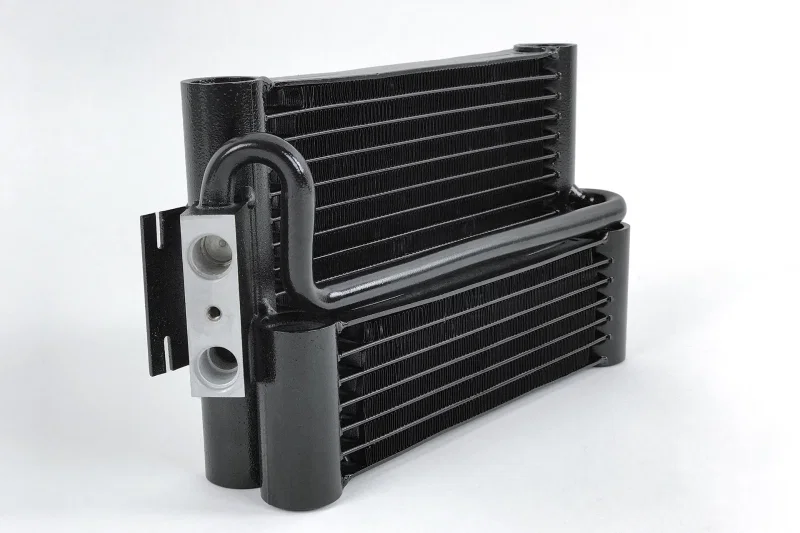

CSF 11-16 BMW 135i(X) 5 Door F20 / M135i(X) 3 Door F21 Race-Spec Oil Cooler
Part # 8145SKU CSF8145
Set your vehicle above for a fit verdict. 10 vehicles listed below.
| Brand | CSF |
|---|---|
| Part type | Engine Oil Cooler |
| UPC / GTIN | 00710353081457 |
- "Drop-In Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including Oil-Line Connections, Mounting Brackets and Shroud/Ducting
- Requires Additional Half Quart for Proper Fill-up During Installation (OEM Cooler: 7 Qts./ CSF's Upgrade Race-Spec N55 Oil Cooler: 7.5 Quarts)
- Secondary In-Series Backside Cooler has an Additional 5 Rows of Cooling for a 40% Increase in Heat Rejection
- Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 26mm Multi-Channel Microtube
- World's 1st and Only True "Plug-And-Play" Upgraded Engine Oil Cooler for the BMW N55 Engine
- Converted to a Single-Pass Design with High Pressure Return Line for Optimal Flow
- High-Density Multi-Louvered Fin Design for Maximum Surface Area Contact
- Track Tested and Proven by Hittman Racing's M235iR Endurance Race Car
- Innovative 2-Core In-Series System
Description
Utilizing CSF's AC Condenser technology, their innovative dual-core in-series system features an additional 5 rows of super-high pressure multi-channel micro-tubes on the rear side of the oil cooler. The high performance tube spec, along with the high-efficiency multi-louvered fin design allows for maximum surface area contact and an approximate 40% increase in heat rejection. The High-Performance Race-Spec Oil Cooler directly replaces the factory unit, easily bringing engine oil temperatures down to a consistent and manageable level, even under extreme & extensive driving conditions.
More from CSF
| 8032 | $783.04 |
| 8275 | $882.88 |
| 8042 | $683.20 |
| 8041 | $569.09 |
| 8025 | $854.35 |
| 8103 | $569.09 |
| Year | Make | Model |
|---|---|---|
| 2012 - 2015 | BMW | 335i |
| 2014 - 2016 | BMW | 335i GT xDrive |
| 2012 - 2015 | BMW | 335i xDrive |
| 2014 - 2016 | BMW | 435i |
| 2015 - 2016 | BMW | 435i Gran Coupe |
| 2014 - 2016 | BMW | 435i xDrive |
| 2015 - 2016 | BMW | 435i xDrive Gran Coupe |
| 2013 - 2015 | BMW | ActiveHybrid 3 |
| 2014 - 2016 | BMW | M235i |
| 2015 - 2016 | BMW | M235i xDrive |
