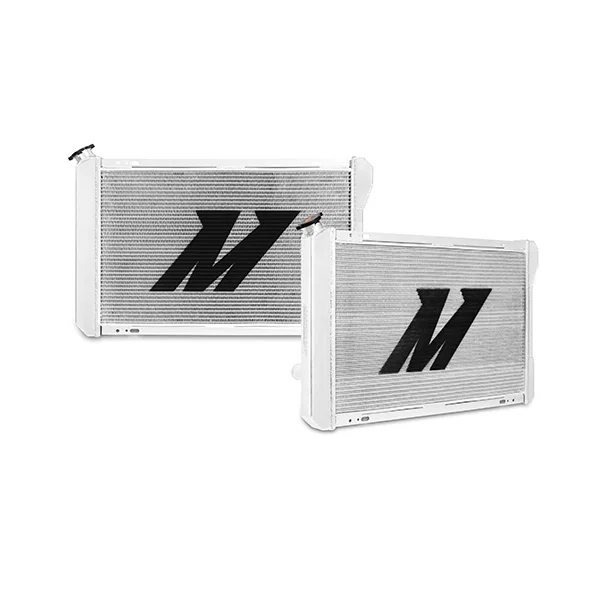

Mishimoto 2-Row Performance Aluminum Radiator, fits Chevrolet Camaro / Firebird 1982-1992
Part # MMRAD-CAM-82SKU MISMMRAD-CAM-82
Set your vehicle above for a fit verdict. 11 vehicles listed below.
| Brand | Mishimoto |
|---|---|
| Part type | Radiator |
| Position | Primary |
| Core Finish | Uncoated |
| Core Height | 16.5 in |
| Core Length | 26.2 in |
| Core Material | Aluminum |
| Core Row Quantity | 2 |
| Core Thickness | 1.96 in |
| Down Flow Or Cross Flow Type | Cross Flow |
| Drain Plug Included | Yes |
| Drain Plug Thread Size | M12 - 1.5 |
| Fluid Capacity | 4.63 gal |
| Inlet Diameter | 1.37 in |
| Inlet Location | Top Left |
| Install Difficulty | 3 |
| Outlet Diameter | 1.57 in |
| Outlet Location | Bottom Right |
| Overall Height | 31.5 in |
| Overall Length | 19.5 in |
| Overall Width | 4.5 in |
| Radiator Cap Included | Yes |
| SellingPoint01 | Full aluminum radiator featuring robust TIG-welded construction |
| SellingPoint02 | Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip |
| SellingPoint03 | Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint04 | Polished aluminum end tanks enhance engine bay aesthetics |
| SellingPoint05 | Includes Mishimoto M12 x 1.25-in Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint06 | Mishimoto Lifetime Warranty |
| TechSpec Applications | 1982-1992 Chevrolet Camaro L6 & V8--1982-1992 Pontiac Firebird Trans Am |
| TechSpec Core Height (in) | 16.5 |
| TechSpec Core Length (in) | 26.2 |
| TechSpec Core Thickness (in) | 1.96 |
| UPC / GTIN | 00748666003194 |
| Warranty | Lifetime Warranty |
- Full aluminum radiator featuring robust TIG-welded construction
- Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip
- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Description
A street or track muscle car demands a reliable cooling system. Outfit your Chevrolet Camaro or Pontiac Firebird with the best upgrade in cooling efficiency that fits in your tight budget. The Mishimoto Aluminum Radiator utilizes a 2 row core with precision TIG welded aluminum end tanks for increased reliability and cooling efficiency. Not only will the Mishimoto radiator keep coolant temperatures at bay but the built in transmission cooler will improve the performance and extend the life of your transmission. The Mishimoto Aluminum Radiator is a direct fit product that requires no cutting or trimming and is protected by our lifetime warranty.
More from Mishimoto
| R2703 | $357.99 |
| MMRAD-CAM-70 | $548.99 |
| MMRAD-MUS-79 | $484.99 |
| MMRAD-CK-47X | $639.99 |
| MMRAD-BEL-55X | $558.99 |
| MMRAD-BEL-50X | $548.99 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1982 | Chevrolet | Camaro | Berlinetta, Sport, Z28, Z28 Indianapolis 500 Pace Car |
| 1983 - 1986 | Chevrolet | Camaro | Berlinetta, Sport, Z28 |
| 1987 | Chevrolet | Camaro | LT, Sport, Z28 |
| 1988 | Chevrolet | Camaro | Base, Iroc-Z |
| 1989 - 1990 | Chevrolet | Camaro | Iroc-Z, RS |
| 1991 | Chevrolet | Camaro | RS, Z28 |
| 1992 | Chevrolet | Camaro | RS, RS Heritage Edition, Z28, Z28 Heritage Edition |
| 1982 - 1986 | Pontiac | Firebird | Base, S/E, Trans Am |
| 1987 - 1988 | Pontiac | Firebird | Base, Trans Am |
| 1989 | Pontiac | Firebird | Base, Formula, Trans Am, Trans Am GTA, Trans Am GTA SE |
| 1990 - 1992 | Pontiac | Firebird | Base, Formula, Trans Am, Trans Am GTA |
