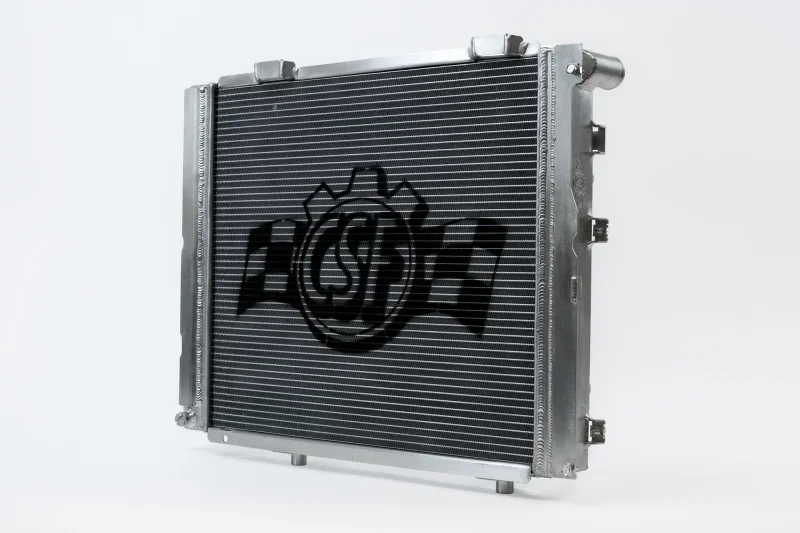

CSF 84-88 Mercedes-Benz W201 190E 2.3L - 16 w/ A/C High Performance Aluminum Radiator
Part # 7220SKU CSF7220
Set your vehicle above for a fit verdict. 1 vehicle listed below.
| Brand | CSF |
|---|---|
| Part type | Radiator |
| UPC / GTIN | 00710353072202 |
- Includes CNC Cut Fan Mounting Brackets for a 16 inch SPAL Fan (Low Profile SPAL Fan PN: 30100400 - Medium Profile SPAL Fan PN: 30101516)
- 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- 2-Row, 42mm Ultra-High-Performance Dual Pass Core
- 100% All Aluminum TIG-Welded Construction
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
- Satin Finish
Description
The CSF radiator features a 2-Row 42mm aluminum core that not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. With nearly double the number of cooling fins and tubes the CSF Radiator will outperform the OEM unit by a significant margin. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The radiator mounts in the factory location and requires no modifications or cutting. The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions.
More from CSF
| 3472 | $237.20 |
| 10811 | $162.67 |
| 3719 | $216.03 |
| 2929 | $182.59 |
| 2614 | $182.59 |
| 3516 | $224.38 |
| Year | Make | Model |
|---|---|---|
| 1986 - 1987 | Mercedes-Benz | 190E |
