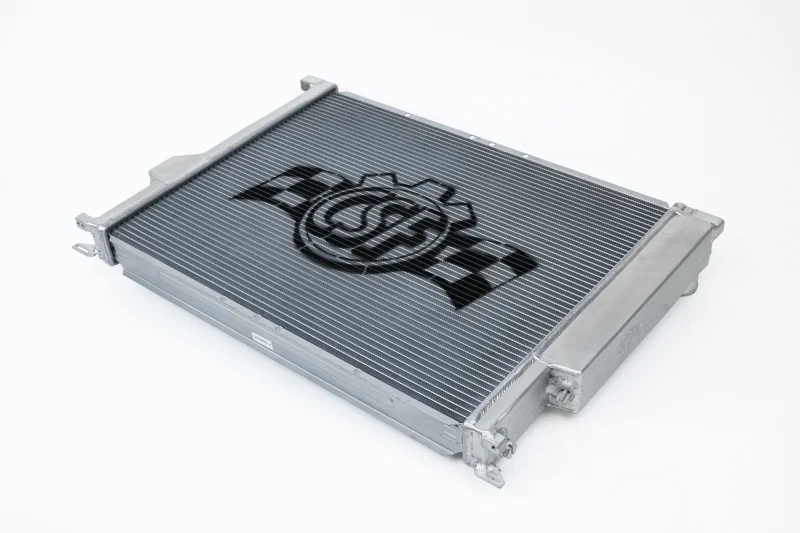

CSF BMW S54 Swap Into E36 / E46 Chassis High Performance Radiator
Part # 7211SKU CSF7211
Set your vehicle above for a fit verdict. 18 vehicles listed below.
| Brand | CSF |
|---|---|
| Part type | Radiator |
| UPC / GTIN | 00710353072110 |
- 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- Includes 2 top covers (black and satin) to cover the top plate for a clean OEM+ look
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Includes Oil Cooler Mounting Brackets that fit both the CSF #8240 & CSF #8032
- Includes fan brackets for 16 inch SPAL Fan (SPAL #30100400 - not included)
- CNC Machined Mounting Brackets, Fittings, and OEM Style Inlet/Outlet
- 100% All Aluminum TIG-Welded Construction
- 2-Row - 42mm Ultra-High-Performance Core
- Individually Leak and Pressure Tested
- All-Aluminum Race Style Drain Plug
- CSF's Exclusive B-Tube Technology
- 2-Year Limited Warranty
- Smooth Satin Finish
Description
Because the S54 requires a much more robust oil cooling system than the E36's S52, CSF made special provisions to fit two different race spec oil coolers. To do this, the height of the radiator was reduced slightly so the oil coolers can fit under it in a factory style location. The radiator includes mounting brackets which can be adjusted to fit both oil coolers (CSF #8032 & #8240). CSF also includes brackets for an electric fan conversion. These brackets are designed to fit a single 16 inch SPAL Fan (not included). While it is possible to retain a clutch type fan, it is much easier to convert to an electric fan on top of the performance benefits.
More from CSF
| 3472 | $237.20 |
| 10811 | $162.67 |
| 3719 | $216.03 |
| 2929 | $182.59 |
| 2614 | $182.59 |
| 3516 | $224.38 |
| Year | Make | Model |
|---|---|---|
| 1992 - 1998 | BMW | 318i |
| 1992 - 1997 | BMW | 318is |
| 1995 - 1999 | BMW | 318ti |
| 2000 | BMW | 323Ci |
| 1998 - 2000 | BMW | 323i |
| 1998 - 1999 | BMW | 323is |
| 2001 - 2006 | BMW | 325Ci |
| 1992 - 1995 | BMW | 325i |
| 2001 - 2005 | BMW | 325i |
| 1992 - 1995 | BMW | 325is |
| 2001 - 2005 | BMW | 325xi |
| 2000 | BMW | 328Ci |
| 1996 - 2000 | BMW | 328i |
| 1996 - 1999 | BMW | 328is |
| 2001 - 2006 | BMW | 330Ci |
| 2001 - 2005 | BMW | 330i |
| 2001 - 2005 | BMW | 330xi |
| 1995 - 1999 | BMW | M3 |
