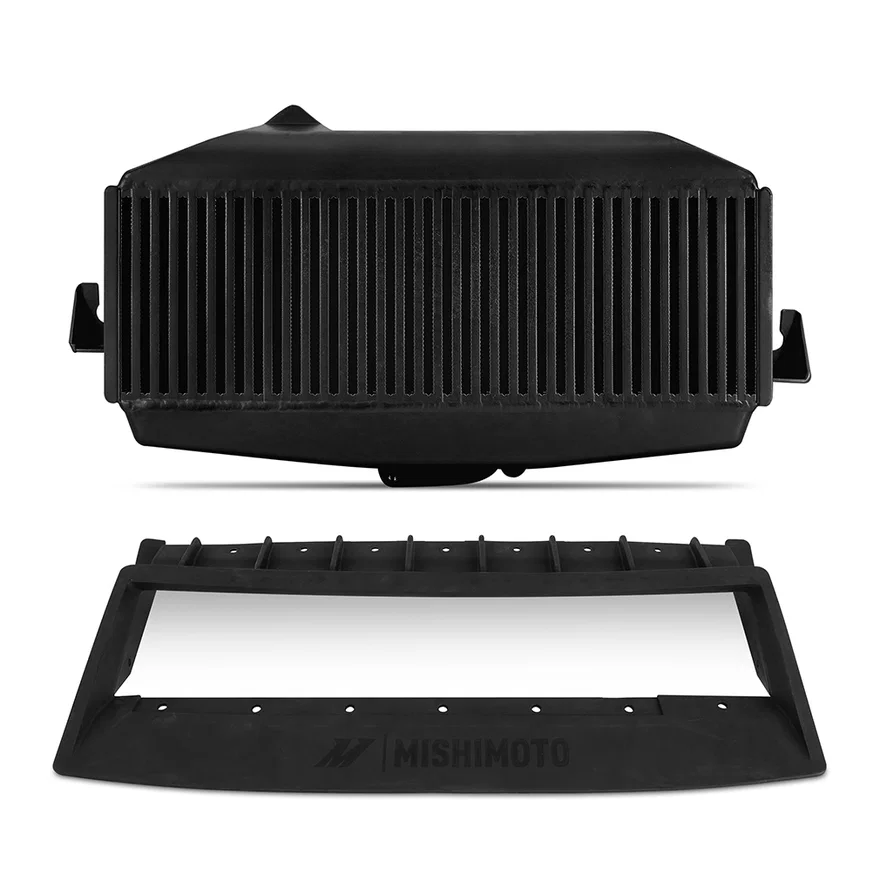

Mishimoto Center Top-Mount Intercooler, Black, fits Subaru WRX 2022+

Part # MMTMIC-WRX-22BKSKU MISMMTMIC-WRX-22BK

Set your vehicle above for a fit verdict. 3 vehicles listed below.

Specifications
BrandMishimoto
Part typeIntercooler
PositionCenter
Core ColorBlack
Core Height7 in
Core Length20.5 in
Core MaterialAluminum
Core Thickness4 in
Grade TypePerformance
Height12.96 in
Inlet Fitting GenderMale
Inlet Outside Diameter0 in
Inlet Tank MaterialAluminum
Install Difficulty1
Length24.51 in
OptionLabelBlack
Outlet Fitting GenderMale
Outlet Outside Diameter0 in
SellingPoint01Direct fit for 2022+ Subaru WRX
SellingPoint02Bar-and-plate core reduces restriction by 40.6 percent for improved efficiency
SellingPoint0388 percent increase in core volume for improved cooling efficiency
SellingPoint04Lowers outlet temps to less than 10 degrees over ambient for safe performance
SellingPoint0535.7 percent less pressure drop than stock means more boost makes it into the engine
SellingPoint0676 percent increase in fin surface area for superior heat transfer
SellingPoint07Includes expanded shrouding for maximum airflow and coverage
SellingPoint08Cold-side tank include 1/8-NPT port for boost or temp sensors
SellingPoint09Cast aluminum end tanks reduce failure points for high boost applications
SellingPoint10Includes everything needed for installation, including shroud hardware
SellingPoint11Patent Pending
SellingPoint12Mishimoto Lifetime Warranty
TechSpec ApplicationsSubaru WRX H4 2.4L Turbo 2022+
TechSpec Chassis CodesVB
UPC / GTIN00840197719503
WarrantyLifetime Warranty
  • Bar-and-plate core reduces restriction by 40.6 percent for improved efficiency
  • 88 percent increase in core volume for improved cooling efficiency
  • Lowers outlet temps to less than 10 degrees over ambient for safe performance

Description

The Subaru WRX is a car that begs to be driven at ten-tenths, and as enthusiasts, we're happy to oblige. At the same time, we know the WRX is capable of much more with a few well-designed upgrades. One upgrade that's sure to bring your 2022+ WRX to the next level is the Mishimoto performance top-mount intercooler. This top mount intercooler lets your FA24 breathe all the cool boost it could ever want.----The crowning jewel of this kit is our massively upgraded top-mount intercooler and shroud. We've completely revamped the plastic end tank intercooler and replaced it with cast-aluminum end tanks and a high-flow core that's 88 percent larger than stock. The larger core volume allows our intercooler to flow over 40 percent better than stock, taking the strain off your turbo and allowing it to shove more cold air into your engine. We've also added 76 percent more fin surface area to the core, allowing it to transfer heat more effectively and keep outlet temps within 10 degrees of ambient. All those improvements would be for not, though, if we didn't have a way to get cool outside air over the intercooler. To do that, we scaled the intercooler shroud up to expose the entire core to fresh air from the WRX's signature hood scoop. A pre-drilled, tapped, and plugged 1/8-NPT port allow you to easily add temp or boost pressure sensors.----This kit includes everything needed for installation, including new shroud hardware. It's available with in black or silver to match any color scheme and, with our Mishimoto Lifetime Warranty, you can drive your WRX at ten-tenths knowing Mishimoto has its and your back.

Fits these vehicles 3

YearMakeModelSubmodelEngine
2022 - 2024SubaruWRXBase, GT, Limited, Premium, Sport, Sport-tech2.4L 146 H4
2025SubaruWRXGT, Limited, Premium, Sport, Sport-tech2.4L 146 H4
2026SubaruWRXGT, High, Limited, Premium, Series.Yellow, Sport, Sport-tech, Sportwagon, TS, tS Performance2.4L 146 H4
