Part # MMTMIC-WRX-22SLSKU MISMMTMIC-WRX-22SL
Set your vehicle above for a fit verdict. 3 vehicles listed below.
| Brand | Mishimoto |
|---|---|
| Part type | Intercooler |
| Position | Center |
| Core Color | Silver |
| Core Height | 7 in |
| Core Length | 20.5 in |
| Core Material | Aluminum |
| Core Thickness | 4 in |
| Grade Type | Performance |
| Height | 12.96 in |
| Inlet Fitting Gender | Male |
| Inlet Outside Diameter | 0 in |
| Inlet Tank Material | Aluminum |
| Install Difficulty | 1 |
| Length | 24.51 in |
| OptionLabel | Silver |
| Outlet Fitting Gender | Male |
| Outlet Outside Diameter | 0 in |
| SellingPoint01 | Direct fit for 2022+ Subaru WRX |
| SellingPoint02 | Bar-and-plate core reduces restriction by 40.6 percent for improved efficiency |
| SellingPoint03 | 88 percent increase in core volume for improved cooling efficiency |
| SellingPoint04 | Lowers outlet temps to less than 10 degrees over ambient for safe performance |
| SellingPoint05 | 35.7 percent less pressure drop than stock means more boost makes it into the engine |
| SellingPoint06 | 76 percent increase in fin surface area for superior heat transfer |
| SellingPoint07 | Includes expanded shrouding for maximum airflow and coverage |
| SellingPoint08 | Cold-side tank include 1/8-NPT port for boost or temp sensors |
| SellingPoint09 | Cast aluminum end tanks reduce failure points for high boost applications |
| SellingPoint10 | Includes everything needed for installation, including shroud hardware |
| SellingPoint11 | Patent Pending |
| SellingPoint12 | Mishimoto Lifetime Warranty |
| TechSpec Applications | Subaru WRX H4 2.4L Turbo 2022+ |
| TechSpec Chassis Codes | VB |
| UPC / GTIN | 00840197719497 |
| Warranty | Lifetime Warranty |

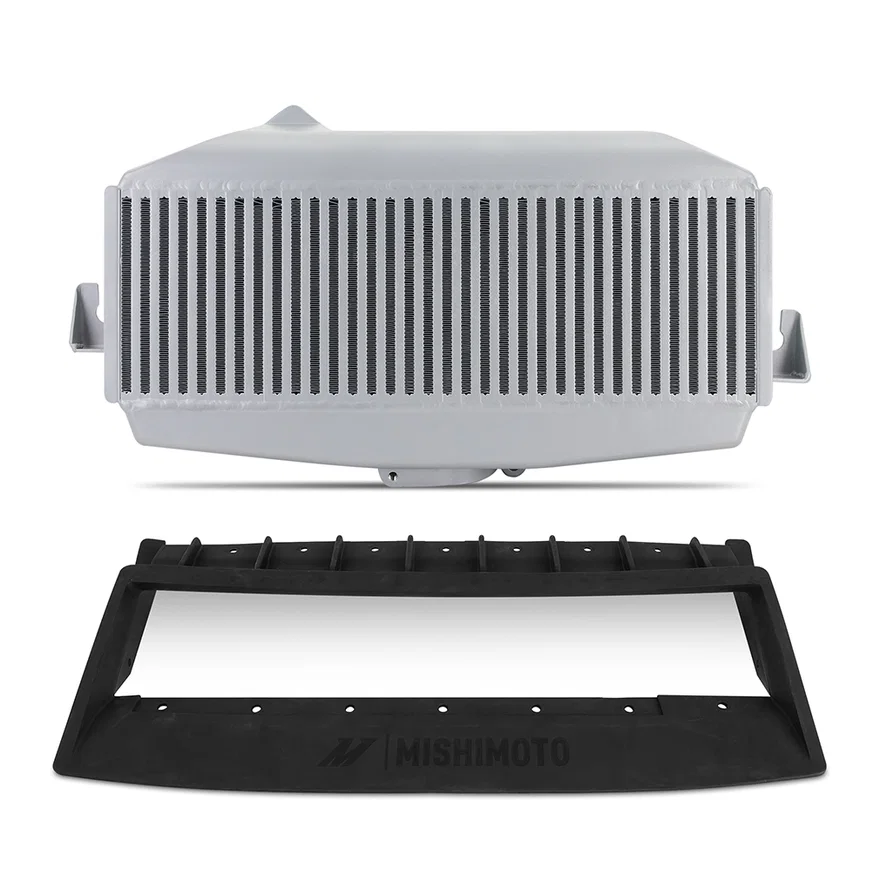

The Subaru WRX is a car that begs to be driven at ten-tenths, and as enthusiasts, we're happy to oblige. At the same time, we know the WRX is capable of much more with a few well-designed upgrades. One upgrade that's sure to bring your 2022+ WRX to the next level is the Mishimoto performance top-mount intercooler. This top mount intercooler lets your FA24 breathe all the cool boost it could ever want.----The crowning jewel of this kit is our massively upgraded top-mount intercooler and shroud. We've completely revamped the plastic end tank intercooler and replaced it with cast-aluminum end tanks and a high-flow core that's 88 percent larger than stock. The larger core volume allows our intercooler to flow over 40 percent better than stock, taking the strain off your turbo and allowing it to shove more cold air into your engine. We've also added 76 percent more fin surface area to the core, allowing it to transfer heat more effectively and keep outlet temps within 10 degrees of ambient. All those improvements would be for not, though, if we didn't have a way to get cool outside air over the intercooler. To do that, we scaled the intercooler shroud up to expose the entire core to fresh air from the WRX's signature hood scoop. A pre-drilled, tapped, and plugged 1/8-NPT port allow you to easily add temp or boost pressure sensors.----This kit includes everything needed for installation, including new shroud hardware. It's available with in black or silver to match any color scheme and, with our Mishimoto Lifetime Warranty, you can drive your WRX at ten-tenths knowing Mishimoto has its and your back.
| MMINT-A2W-DPR-2 | $1,159.99 |
| MMINT-F2D-11BK | $1,340.99 |
| MMINT-USG | $519.99 |
| MMINT-A2W-DPR-1 | $825.99 |
| MMINT-A2W-DP-1 | $825.99 |
| MMINT-F2D-17BL | $2,346.99 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2022 - 2024 | Subaru | WRX | Base, GT, Limited, Premium, Sport, Sport-tech | 2.4L 146 H4 |
| 2025 | Subaru | WRX | GT, Limited, Premium, Sport, Sport-tech | 2.4L 146 H4 |
| 2026 | Subaru | WRX | GT, High, Limited, Premium, Series.Yellow, Sport, Sport-tech, Sportwagon, TS, tS Performance | 2.4L 146 H4 |
