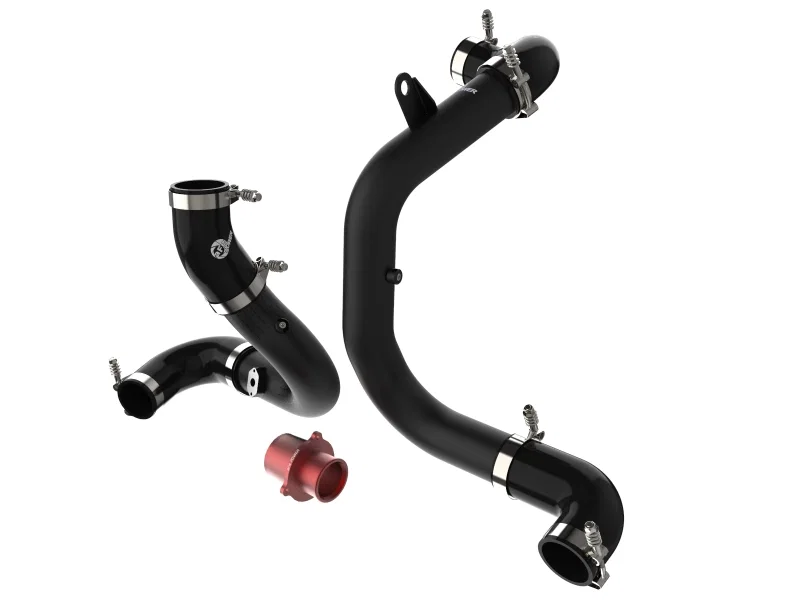

aFe 15-20 VW GTI Charge Pipe Kit

Part # 46-20415-BSKU AFE46-20415-B

Set your vehicle above for a fit verdict. 6 vehicles listed below.

Specifications
BrandaFe
Part typeIntercooler
UPC / GTIN00802959468067
  • Directly replace the restrictive plastic intercooler tubes with the BladeRunner free-flowing, heat-resistant aluminum tubes.
  • Features Premium Stainless-Steel Spring-Loaded T-Bolt Clamps And 5-Ply Silicone Couplings
  • Includes an Oversized Two-Piece 2-1/4” Billet Aluminum Turbo Muffler Delete
  • 1/8" NPT Ports Provided for Connecting Sensors or Water Methanol Injection
  • TIG-Welded 2-1/2" Hot Side and 2-3/4" Cold Side Aluminum Tubes
  • Powder Coated Wrinkle Black for Heat and Corrosion Resistance
  • Dyno-Proven Gains of +23 HP and +28 Lbs. x Ft. TQ
  • Outflows Factory Tubes by 34%

Description

Smooth transitions in the mandrel-bent aluminum tubing decrease turbulence and minimize pressure loss, increasing horsepower and torque. The BladeRunner I/C tube kit provides a smooth transition between the turbo and the engine for lower operating temperatures and increased power. This oversized 2-1/4in OD Turbo Muffler Delete replaces the factory turbo muffler located between the turbo compressor outlet and the hot side intercooler tube. The straight through oversized design tremendously increases flow and turbocharger sound by creating a smooth transition between the turbo and intercooler tube. CNC machined from 6061-T6 aluminum then finished in red anodizing also provides superior strength and long lasting durability. This tube kit includes high-quality, stainless-steel, spring-loaded T-bolt clamps and heavy-duty, 5-ply, polyester reinforced silicone couplings for superior strength and durability. Finished in Wrinkle Black powder coating with a unique laser-etched aFe power logo for a custom look.

Fits these vehicles 6

YearMakeModel
2017 - 2020AudiA3
2015 - 2020AudiA3 Quattro
2015 - 2020AudiS3
2015 - 2019VolkswagenGolf R
2015 - 2021VolkswagenGTI
2019 - 2020VolkswagenJetta
