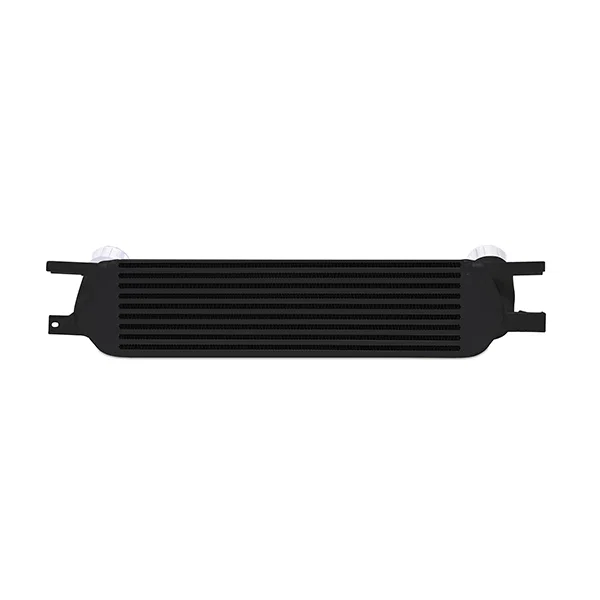

Mishimoto Front Intercooler, Black, fits Ford Mustang EcoBoost 2015-2023

Part # MMINT-MUS4-15BKSKU MISMMINT-MUS4-15BK

Set your vehicle above for a fit verdict. 1 vehicle listed below.

Specifications
BrandMishimoto
Part typeIntercooler
PositionFront
CARB EO NumberD-759-23
Core ColorBlack
Core Height5.75 in
Core Length21.06 in
Core MaterialAluminum
Core Thickness0 in
Grade TypePerformance
Height6.8 in
Inlet Fitting GenderMale
Inlet Outside Diameter2.56 in
Inlet Tank MaterialAluminum
Install Difficulty3
Length30.3 in
OptionLabelBlack
Outlet Fitting GenderMale
Outlet Outside Diameter2.56 in
SellingPoint01Direct fit for the 2015-2023 Ford Mustang EcoBoost
SellingPoint0235 F (19.45 C) reduction in AIT
SellingPoint0358-percent increase in core size
SellingPoint0425-percent increase in internal core volume and 165-percent increase in external fin surface area
SellingPoint05Cast end tanks and in-tank diverter provide optimal flow through intercooler
SellingPoint06Stock location prevents airflow blockage to radiator and AC condenser
SellingPoint07Installs in under 2 hours without having to remove front bumper cover
SellingPoint08Retains stock active grille shutters, maintaining ideal aerodynamics when cooling demands are lower
SellingPoint09Bar-and-plate construction
SellingPoint10All-aluminum, TIG-welded
SellingPoint11Available in Sleek Silver or Stealth Black
SellingPoint12Fits with the Mishimoto Mustang EcoBoost Oil Cooler Kit
SellingPoint13Mishimoto Lifetime Warranty
UPC / GTIN00748354019056
WarrantyLifetime Warranty
  • 35 F (19.45 C) reduction in AIT
  • 58-percent increase in core size
  • 25-percent increase in internal core volume and 165-percent increase in external fin surface area

Description

For the first time in over 30 years, the iconic Ford Mustang is available with a turbocharged 4-cylinder engine producing over 300 horsepower! Turbocharged 4-cylinder engines produce extremely hot charge air temperatures very quickly within a few laps on the track or aggressive street driving and stock tube-and-fin intercoolers also heat soak very easily. Mishimoto has developed a highly efficient bar-and plate intercooler engineered specifically for the Mustang EcoBoost to keep your air intake temperatures consistently low, run after run. This intercooler is a direct-fit unit requires no modification to your Mustang. The Engineers at Mishimoto designed this intercooler to fit with the stock active grille shutters, as well as prevent airflow blockage to the radiator and AC condenser by mounting it in the stock location. This cooler is constructed with cast end tanks that are CFD tested for maximum airflow and includes an in-tank air diverter, on the hot side, to provide optimal flow through the intercoole r. The Mustang EcoBoost Performance Intercooler reduces intake temperatures by 35 F (19.45 C) with minimal pressure loss, has a 25-percent increase in core volume and 165-percent increase in external fin surface area, providing maximum cooling for your Mustang. This intercooler features precision TIG-welding and is available with a Sleek Silver or Stealth Black finish. As with all our products, the Mishimoto Mustang EcoBoost Performance Intercooler includes the Mishimoto Lifetime Warranty.

Fits these vehicles 1

YearMakeModelSubmodelEngine
2015 - 2023FordMustangEcoBoost, EcoBoost Premium2.3L 140 I4
