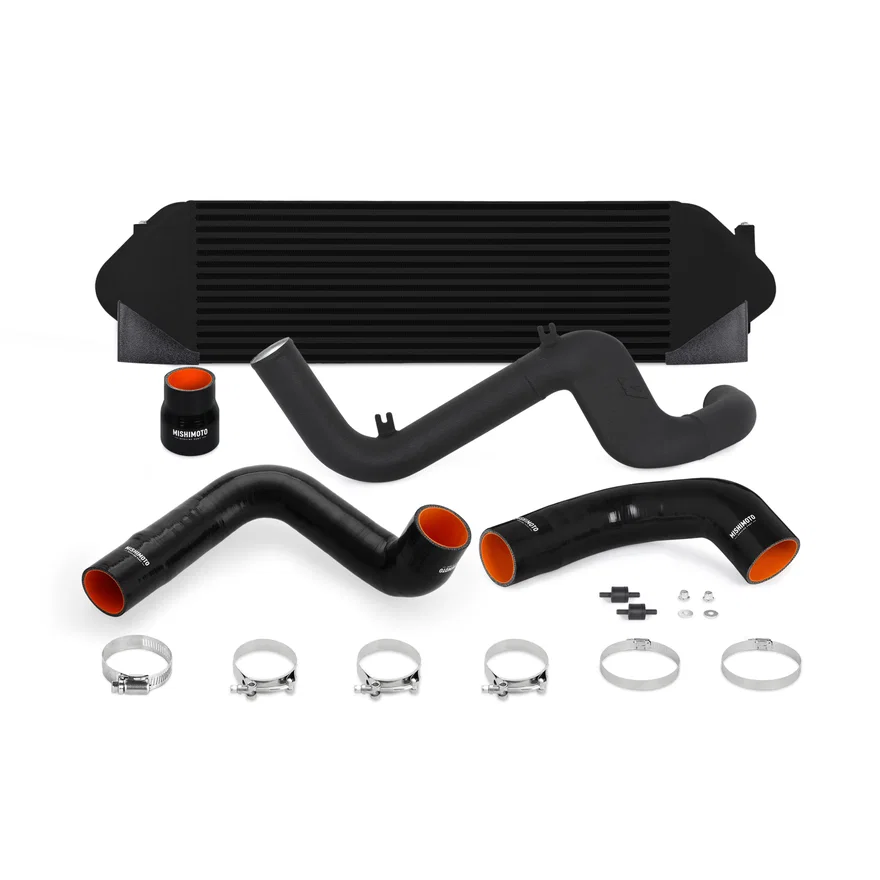

Mishimoto Intercooler Kit, Black/Black, fits Ford Focus RS 2016-2018

Part # MMINT-RS-16KBKSKU MISMMINT-RS-16KBK

Set your vehicle above for a fit verdict. 1 vehicle listed below.

Specifications
BrandMishimoto
Part typeIntercooler Kit
Cold Side Pipe Inside Diameter2.75 in
Core ColorBlack
Core ConstructionBar-and-Plate
Core Height8.3 in
Core Length25.6 in
Core MaterialAluminum
Core Thickness0 in
Coupler ColorBlack
Coupler MaterialSilicone
End Tank ConstructionCast
End Tank MaterialAluminum
Grade TypePerformance
Hose Clamps IncludedYes
Hot Side Pipe Inside Diameter2.75 in
Inlet Diameter2.75 in
Install Difficulty3
Intercooler TypeAir-to-Air
Maximum Boost Pressure0 PSI
Maximum Horsepower600 hp
OptionLabelStealth Black
Outlet Diameter2.75 in
Pipe ColorBlack
Pipe FinishPowder Coated
Pipe MaterialAluminum
SellingPoint01Direct fit for the 2016-2018 Ford Focus RS
SellingPoint0280-percent increase in core size
SellingPoint0336-percent increase in internal core volume and 214-percent increase in external fin surface area
SellingPoint0446-percent and 45-percent less pressure drop than stock cold-side and hot-side pipe, respectively
SellingPoint0531-percent and 40-percent increase in internal volume compared to stock cold-side and hot-side pipe, respectively
SellingPoint06Designed to not block off cooling to the PTU
UPC / GTIN00748354038804
WarrantyLifetime Warranty
  • 80-percent increase in core size
  • 36-percent increase in internal core volume and 214-percent increase in external fin surface area
  • 46-percent and 45-percent less pressure drop than stock cold-side and hot-side pipe, respectively

Description

Say hello to our performance intercooler kit for the 2016-2018 Ford Focus RS! Whether you are a track junkie, occasionally taking your RS for some spirited driving, or making your RS a car to steal the show, this intercooler will suit your needs. Our intercooler has been beefed up with a 36-percent increase in core volume and a 214-percent increase in external fin surface area, which means increased air-cooling efficiency for your RS. Our core reduces air outlet temperature by almost 40-percent while minimizing the inlet/outlet pressure drop across the core, and provides gains of 7hp and 8ft-lbs! The hefty, direct-fit, bar-and-plate core is durable enough to wIt'stand any type of abuse you throw at it, while improving the heat transfer process both at idle and cruising speeds.This kit also includes the Mishimoto performance intercooler piping kit to further improve the flow of the charged air through your 2.3l EcoBoost. The piping kit replaces the stock hot-side pipe with our custom design which not only features a 40-percent increase in internal volume, but also is specifically shaped to direct airflow over the stock PTU cooler. Our cold-side pipe features 5-layers of wire reinforced silicone, with a larger diameter to increase the flow of the charged air, but also longevity of your turbocharging system.The Performance Intercooler Kit is available with either a silver or black, and, with all of our products, is covered under the Mishimoto Lifetime Warranty to keep you pushing the limits in your RS for a lifetime.

Fits these vehicles 1

YearMakeModelSubmodel
2016 - 2018FordFocusRS
