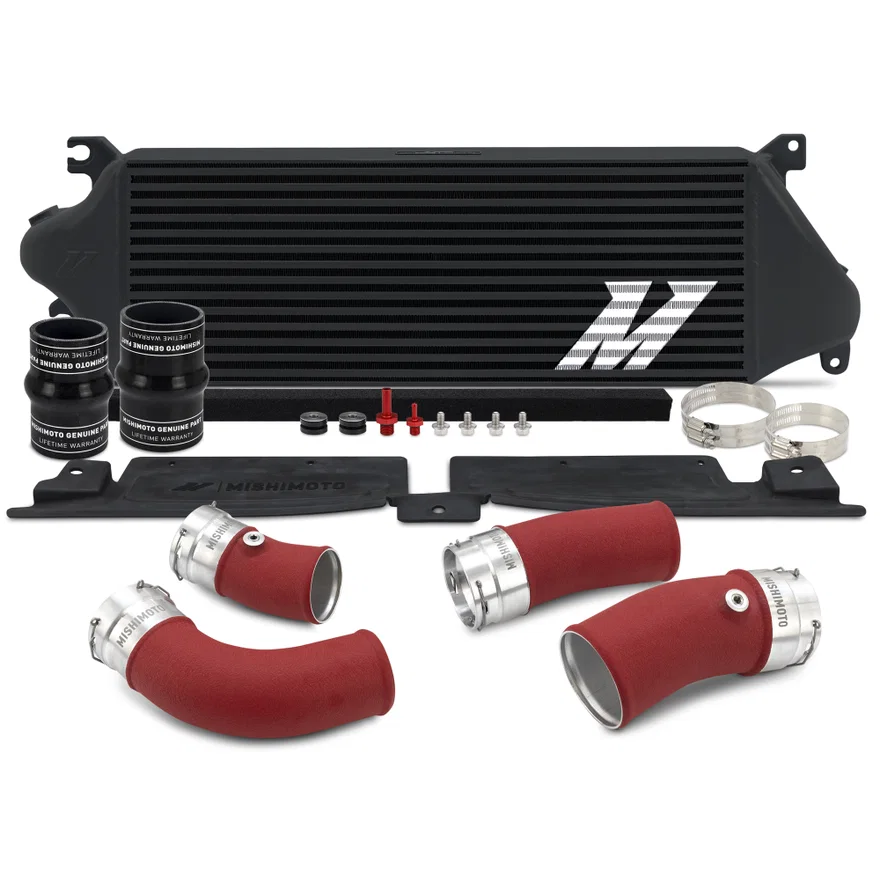

Mishimoto Intercooler Kit, Black/Red, fits Toyota Tacoma 2024+

Part # MMINT-TAC-24KBKRDSKU MISMMINT-TAC-24KBKRD

Set your vehicle above for a fit verdict. 5 vehicles listed below.

Specifications
BrandMishimoto
Part typeIntercooler Kit
Cold Side Pipe Inside Diameter2.22 in
Core ColorBlack
Core ConstructionBar-and-Plate
Core Height8.87 in
Core Length24.13 in
Core MaterialAluminum
Core Thickness3.5 in
Coupler ColorBlack
Coupler MaterialSilicone
End Tank ConstructionCast
End Tank MaterialAluminum
Grade TypePerformance
Hose Clamps IncludedYes
Hot Side Pipe Inside Diameter2.03 in
Inlet Diameter2.03 in
Install Difficulty4
Intercooler TypeAir-to-Air
Maximum Boost Pressure50 PSI
Maximum Horsepower650 hp
OptionLabelBlack Intercooler, Black Pipes
Outlet Diameter2.22 in
Pipe ColorBlack
Pipe FinishPowder Coated
Pipe MaterialAluminum
SellingPoint01Cuts charge air temps by up to 36°F at wide-open throttle — a 55% larger bar-and-plate core provides the heat-sink capacity the factory tube-and-fin unit loses under repeated WOT pulls, towing grades, and sustained off-road operation.
SellingPoint02Reduces turbocharger stress with 30% lower pressure drop than OEM — optimized airflow through the 3.50-in thick core maintains boost pressure and consistent power across the RPM range under sustained demand.
SellingPoint03Included custom shroud ensures full airflow reaches every row of the oversized core — no trimming, no gaps, and no performance loss from an undirected core face that would otherwise undercut the 55% volume increase.
SellingPoint04Complete kit includes aluminum charge pipes, DuraCore™ silicone couplers, and constant-tension clamps — everything for a full intercooler system upgrade in a single purchase, with matched Wrinkle Black or Wrinkle Red pipe finishes.
SellingPoint05Cast end tanks and billet aluminum ORB ports replace the factory unit's construction — updated mounting bushings and an included crush washer ensure a sealed, rattle-free install matched to OEM mounting points.
SellingPoint06Drops in with zero sensor relocation and full Toyota adaptive cruise control function preserved — confirmed direct fit for the 2024+ Toyota Tacoma (T24A-FTS, N400) and 2024+ Toyota Land Cruiser LC250.
UPC / GTIN00840197726297
WarrantyLifetime Warranty
  • Cuts charge air temps by up to 36°F at wide-open throttle — a 55% larger bar-and-plate core provides the heat-sink capacity the factory tube-and-fin unit loses under repeated WOT pulls, towing grades, and sustained off-road operation.
  • Reduces turbocharger stress with 30% lower pressure drop than OEM — optimized airflow through the 3.50-in thick core maintains boost pressure and consistent power across the RPM range under sustained demand.
  • Included custom shroud ensures full airflow reaches every row of the oversized core — no trimming, no gaps, and no performance loss from an undirected core face that would otherwise undercut the 55% volume increase.

Description

The 2024+ Tacoma's T24A-FTS builds heat soak under repeated load - the factory tube-and-fin intercooler loses cooling capacity across consecutive WOT runs, towing grades, and sustained trail use. The Mishimoto Intercooler and Charge Pipe Kit addresses the full charge air system in one purchase: a 55% larger bar-and-plate core paired with aluminum charge piping, DuraCore™ couplers, and constant-tension clamps, matched from intercooler to throttle body.--The bar-and-plate core cuts intake air temps by up to 36°F at wide-open throttle and delivers 30% lower pressure drop than stock, reducing turbocharger strain and maintaining boost efficiency under load. An inclu ded custom shroud directs full airflow to every row of the oversized core - no trimming required. Cast end tanks, billet aluminum ORB ports, updated mounting bushings, and an included crush washer complete the hardware package for a sealed, long-term install.--The system preserves Toyota's adaptive cruise control with no sensor relocation. Fits the 2024+ Toyota Tacoma (T24A-FTS, N400) and 2024+ Toyota Land Cruiser LC250. Available in Silver or Stealth Black intercooler finish with matching Wrinkle Black or Wrinkle Red charge pipes. Compatible with OEM and Mishimoto components for future coolin g system expansion. Backed by the Mishimoto Lifetime Warranty.

Fits these vehicles 5

YearMakeModelSubmodelEngine
2024ToyotaLand Cruiser1958, Base, First Edition2.4L 146 I4
2025 - 2026ToyotaLand Cruiser1958, Base2.4L 146 I4
2024ToyotaTacomaHEV, Limited, SR, SR5, Sport, TRD Off-Road, TRD PreRunner, TRD Pro, TRD Sport, Trailhunter2.4L 146 I4
2025ToyotaTacomaLimited, SR, SR5, TRD Off-Road, TRD PreRunner, TRD Pro, TRD Sport, TRD Sport Premium, Trailhunter2.4L 146 I4
2026ToyotaTacomaLimited, SR, SR5, TRD Off-Road, TRD PreRunner, TRD Pro, TRD Sport, Trailhunter2.4L 146 I4
