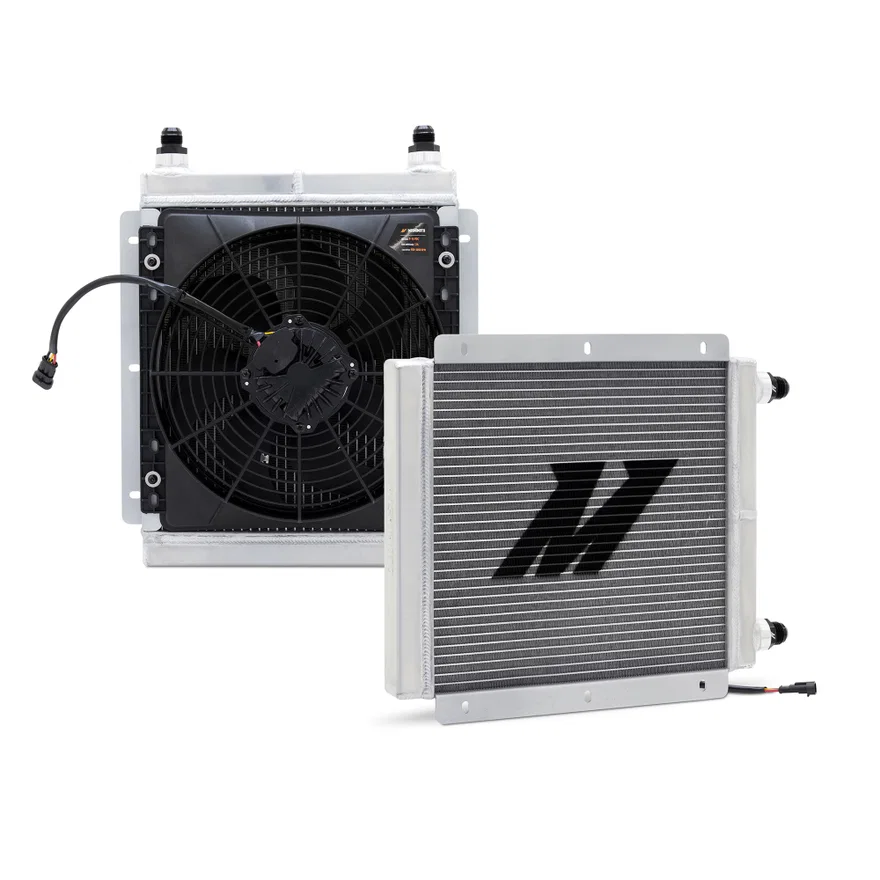

Mishimoto MMHE-UNI-BRLS-K Universal Heat Exchanger Kit, w/Integrated 12 in Brushless Fan
Part # MMHE-UNI-BRLS-KSKU MISMMHE-UNI-BRLS-K
Universal fit
| Brand | Mishimoto |
|---|---|
| Part type | Turbocharger Heat Exchanger |
| Amp Draw (Running) | 9.2 (Peak Amps: 12) |
| Amp Draw (Start) | 1 |
| Grade Type | Performance |
| SellingPoint01 | Universal design can be set up to cool EV applications, coolant, oil, and more |
| SellingPoint02 | Includes 12” brushless fan rated for 1177 CFM with integrated shroud for superior heat dissipation |
| SellingPoint03 | Compatible with our Universal PWM Fan Controller (Hyperlink to MMFAN-PWM-UBK) |
| SellingPoint04 | Features a durable high-pressure tube-and-fin style core for long-lasting performance |
| SellingPoint05 | Includes all necessary fittings and mounting brackets |
| SellingPoint06 | Note: Controller for brushless fan not included. |
| SellingPoint07 | Mishimoto Lifetime Warranty |
| TechSpec CFM | 1177 |
| TechSpec Core Construction | Tube-And-Fin |
| TechSpec Core Height (in) | 13.7 |
| TechSpec Core Length (in) | 14.2 |
| TechSpec Core Thickness (in) | 1.9 |
| TechSpec Includes | Attached Fan--(2) Fittings--Heat Exchanger--Mishimoto Lifetime Warranty |
| TechSpec Inlet | 1 1/16"-12 ORB |
| TechSpec Max Amps | 12 |
| TechSpec Notes | 100psi working pressure |
| TechSpec Outlet | 1 1/16"-12 ORB |
| TechSpec Overall Height (in) | 16.2 |
| TechSpec Overall Length (in) | 18.1 |
| TechSpec Overall Width (in) | 3.76 |
| TechSpec Rows | 34 |
| TechSpec RPM | 900 - 3050 |
| TechSpec Voltage | 9-16 VDC |
| UPC / GTIN | 00840197725290 |
| Warranty | Lifetime Warranty |
- Universal design can be set up to cool EV applications, coolant, oil, and more
- Includes 12 brushless fan rated for 1177 CFM with integrated shroud for superior heat dissipation
- Compatible with our Universal PWM Fan Controller (Hyperlink to MMFAN-PWM-UBK)
Description
Handle your cooling needs with confidence using the Mishimoto Universal Heat Exchanger Kit. Designed to support a wide range of applications, this heat exchanger is the perfect solution for electric vehicle systems, coolant systems, oil cooling, and more. It features a high-efficiency tube-and-fin core engineered to handle high pressure while delivering reliable, long-term performance. A powerful 12 brushless fan rated for 1,177 CFM comes pre-mounted in an integrated shroud to ensure optimal airflow and superior heat dissipation in even the most demanding environments. This system is fully compatible with our Universal Fan Controller(hyperlink to MMFAN-PWM-UBK) for precise thermal management. All necessary hardware and mounting brackets are included, and this heat exchanger comes back by the Mishimoto Lifetime Warranty, so you can buy with peace of mind.
