Part # MMINT-ULBKSKU MISMMINT-ULBK
Universal fit
| Brand | Mishimoto |
|---|---|
| Part type | Intercooler |
| Core Color | Black |
| Core Height | 12.14 in |
| Core Length | 26.57 in |
| Core Material | Aluminum |
| Core Thickness | 3.93 in |
| Grade Type | Performance |
| Height | 12.89 in |
| Inlet Fitting Gender | Male |
| Inlet Outside Diameter | 2.4 in |
| Inlet Tank Material | Aluminum |
| Install Difficulty | 3 |
| Length | 40.22 in |
| OptionLabel | Black |
| Outlet Fitting Gender | Male |
| Outlet Outside Diameter | 2.4 in |
| SellingPoint01 | Durable bar-and-plate core provides superior heat transfer and effectively reduce charge air temps |
| SellingPoint02 | Massive, 4"-thick core and 2.4" inlet/outlet support up to 1,000 horsepower |
| SellingPoint03 | Robust, one-piece cast aluminum end tanks withstand up to 60 PSI of boost pressure |
| SellingPoint04 | Three integrated mounting points with pre-threaded M6 holes make mounting easy |
| SellingPoint05 | Included bracket for harnesses or sensors keeps wiring safe and secure |
| SellingPoint06 | Precision TIG-welded joints won't crack under pressure |
| SellingPoint07 | Available in durable stealth black or sleek silver powder-coated finish |
| SellingPoint08 | Mishimoto Lifetime Warranty |
| TechSpec Core Height (in) | 12.14 |
| TechSpec Core Length (in) | 26.57 |
| TechSpec Core Thickness (in) | 3.93 |
| TechSpec Core Type | Bar-and-Plate |
| TechSpec Includes | (1) Universal L-Line Intercooler-- Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) | 2.4 |
| TechSpec Maximum Recommended Boost Pressure (PSI) | 60 |
| UPC / GTIN | 00840197720905 |
| Warranty | Lifetime Warranty |

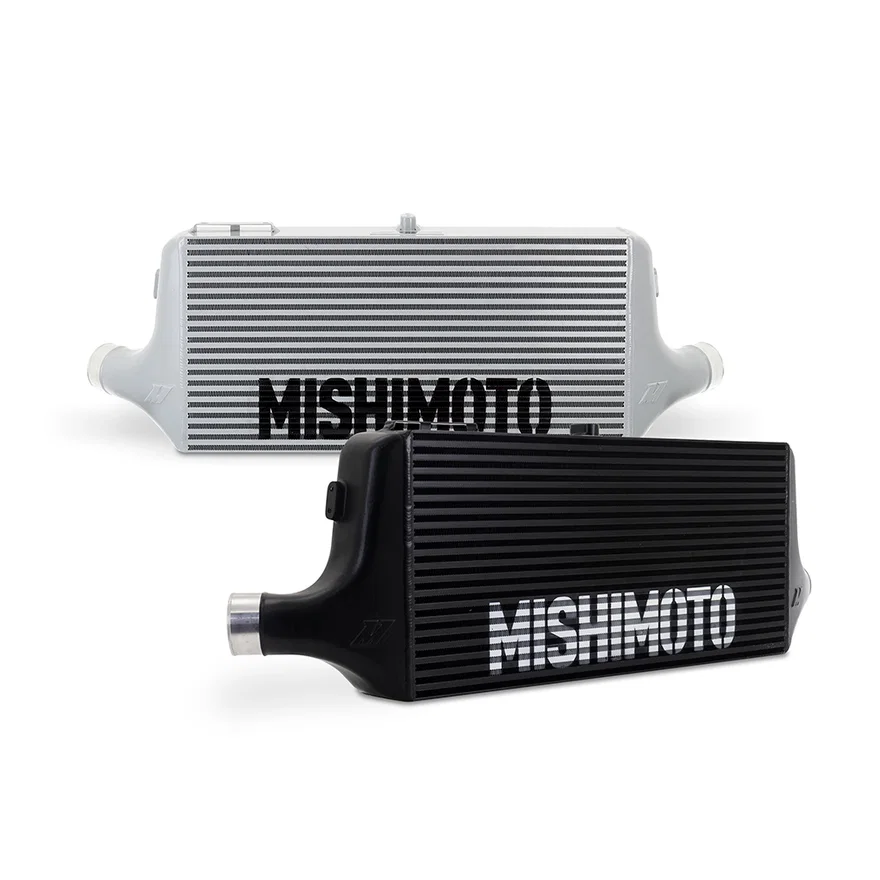

Big power requires big cooling, and Mishimoto is here to deliver. This Mishimoto universal L-line intercooler features a massive 4"-thick core that's capable of supporting up to 1,000 horsepower. The one-piece, cast-aluminum end tanks are far stronger than cut-and-weld tanks, making them capable of holding up to 60 PSI of boost. Large 2.4" inlet and outlets ensure ample flow, while the 26.57"x12.4" bar-and-plate core effectively transfers heat out of your charge air. Unlike many stock plastic end tank intercoolers, our end tanks are precision TIG-welded to the core for durability and reliability, pass after pass.----This universal L-line intercooler features three integrated mounts with pre-threaded M6 holes to make fabricating mounts and installing easy. The center support mount also ensure the intercooler is properly supported for aggressive driving. An integrated harness/sensor mount makes keeping your wires safe and tidy easy. This intercooler is available in a durable sleek silver or stealth black powder-coated finish. Like all our performance products, this universal L-line bar-and-plate intercooler is backed by our Mishimoto Lifetime Warranty.
