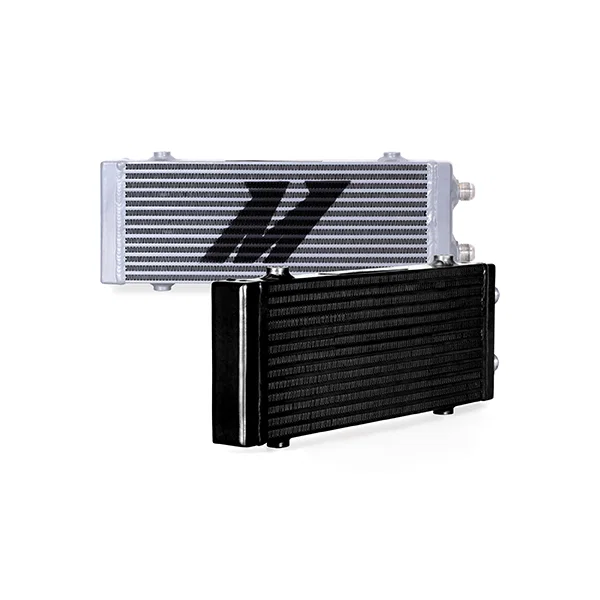

Mishimoto MMOC-DP-MBK Universal Oil Cooler, Dual Pass Bar and Plate, Black, Medium

Part # MMOC-DP-MBKSKU MISMMOC-DP-MBK

Universal fit

Specifications
BrandMishimoto
Part typeEngine Oil Cooler
Base Height6.3 in
ColorBlack
Core ColorBlack
Core Height5.51 in
Core Row Quantity0
Core Thickness1.57 in
Core TypeBar-and-Plate
Core Width0 in
FinishAnodized
Fluid Capacity0.65 gal
Grade TypePerformance
Inlet Fitting GenderMale
Inlet Fitting TypeAN Flare
Inlet Outside Diameter0.625 in
OptionLabelBlack
Outlet Fitting GenderMale
Outlet Fitting TypeAN Flare
Outlet Outside Diameter0.625 in
SellingPoint01Durable Bar and Plate cooler design for use in custom applications
SellingPoint02Dual Pass design for optimal fluid temperature reduction
SellingPoint03M8x1.25 Welded bungs to use for attaching brackets
SellingPoint0410AN fittings for attaching oil lines
SellingPoint05100-percent aluminum construction with CNC end tanks
SellingPoint06Reduces oil temperatures with minimal pressure loss
SellingPoint07Increased oil system capacity for increased cooling capability
SellingPoint08Available in Sleek Silver or Stealth Black
SellingPoint09Mishimoto Lifetime Warranty
TechSpec Core Height (in)5.51
TechSpec Core Thickness (in)1.57
TechSpec Fluid Capacity (qts)0.65
UPC / GTIN00748354030853
WarrantyLifetime Warranty
  • Durable Bar and Plate cooler design for use in custom applications
  • Dual Pass design for optimal fluid temperature reduction
  • M8x1.25 Welded bungs to use for attaching brackets

Description

As anyone who's spent some time on the track will tell you, one of the most important things to keep under control while pushing the limits of your vehicle is oil temperature. Oil that gets too hot will lose its viscosity, which is the very characteristic that makes it thick, slippery, and useful for lubrication. Adding a Mishimoto race oil cooler to your ride will ensure that your oil stays cool enough to do its job, extending the life of the high-wear components within your block and letting you focus not on keeping things cool, but taking home the checkered flag. Available in your choice of sleek silver or stealth black, this particular oil cooler features a dual pass core ? oil enters one side, travels around the core, and exits again on the same side. Ideal for most builds, Mishimoto's medium-sized dual pass oil cooler will help keep temperatures in check while you shoot for the podium finish.
