Part # MMINT-CAM4-16KWBKSKU MISMMINT-CAM4-16KWBK
Set your vehicle above for a fit verdict. 7 vehicles listed below.
| Brand | Mishimoto |
|---|---|
| Part type | Intercooler Kit |
| Cold Side Pipe Inside Diameter | 2.4 in |
| Core Color | Black |
| Core Construction | Bar-and-Plate |
| Core Height | 0 in |
| Core Length | 0 in |
| Core Material | Aluminum |
| Core Thickness | 2 in |
| Coupler Color | Black |
| Coupler Material | Silicone |
| End Tank Construction | Cast |
| End Tank Material | Aluminum |
| Grade Type | Performance |
| Hose Clamps Included | Yes |
| Hot Side Pipe Inside Diameter | 2.4 in |
| Inlet Diameter | 2.4 in |
| Install Difficulty | 4 |
| Intercooler Type | Air-to-Air |
| Maximum Boost Pressure | 0 PSI |
| Maximum Horsepower | 450 hp |
| OptionLabel | Wrinkle Black Piping |
| Outlet Diameter | 2.4 in |
| Pipe Color | Black |
| Pipe Finish | Powder Coated |
| Pipe Material | Aluminum |
| SellingPoint01 | Direct fit for the 2016-2024 Chevrolet Camaro 2.0T and 2013-2019 Cadillac ATS 2.0T |
| SellingPoint02 | 2-in thick intercooler design optimized for maximum airflow with minimal pressure drop |
| SellingPoint03 | 45-percent increase in internal core volume and 239-percent increase in external fin surface area |
| SellingPoint04 | 78-percent increase in core size |
| SellingPoint05 | Cast end tanks with internal air diverter provide optimal airflow through intercooler |
| SellingPoint06 | 30-percent greater internal volume than stock |
| UPC / GTIN | 00811580030437 |
| Warranty | Lifetime Warranty |

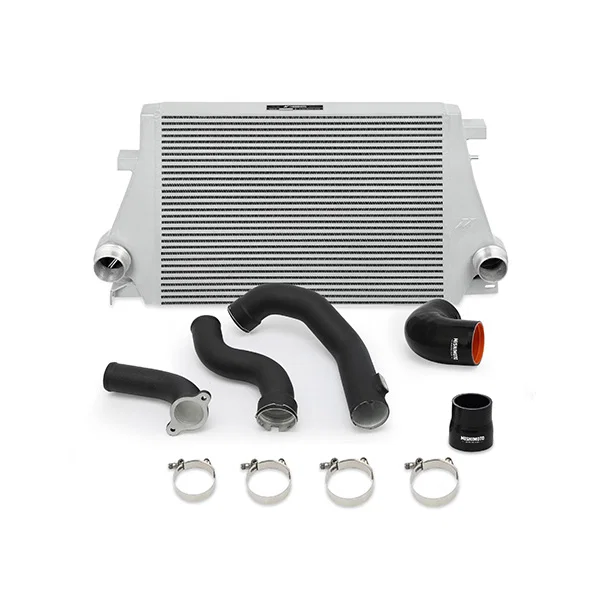

It's time to give the intercooling system in your 2016-2024 Chevrolet Camaro 2.0T or 2013-2019 Cadillac ATS a complete overhaul with the Mishimoto Performance Intercooler Kit. Our bar-and-plate constructed core picks up the slack for the stock unit by offering increased heat rejection characteristics, as well as a boost in airflow. On top of the new construction, our design increases the internal core volume by 45-percent, and offers a whopping 239-percent gain in external fin surface area, making sure that the charged air running through your LTG is as chilled as possible. Our kit also includes a set of our mandrel-bent intercooler piping featuring a range of 2.25-2.75? diameters equating in a 30-percent increase in volume and 10-percent better flow of the charged air. All together, our piping kit gits your LTG powered Camaro or ATS up to 11 additional horsepower and 9 ft-lbs of torque. We have also included a pre-welded NPT port on the cold side piping that not only allows for easy installation of your stock equipment, but also adding an aftermarket boost gauge or meth-injection is a breeze. The Mishimoto Performance Intercooler Kit for your 2013-2019 ATS or 2016-2024 Camaro is available with your choice of polished or wrinkle black piping, and as always this kit is covered under the Mishimoto Lifetime Warranty.
| MMINT-BR27-21HKBKBK | $3,073.99 |
| MMINT-FOST-13KPGD | $1,630.99 |
| MMINT-DMAX-06KBK | $2,871.99 |
| MMINT-DMAX-17KSLBK | $2,867.99 |
| MMINT-F150-11KPSL | $2,444.99 |
| MMTMIC-WRX-15XSL | $930.99 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2013 - 2014 | Cadillac | ATS | Base, Luxury, Performance, Premium, Premium Sport | 2.0L 122 I4 |
| 2015 - 2016 | Cadillac | ATS | Base, Luxury, Performance, Premium | 2.0L 122 I4 |
| 2017 | Cadillac | ATS | Base, Luxury, Performance, Premium Performance | 2.0L 122 I4 |
| 2018 | Cadillac | ATS | Base, Coupe, Luxury, Sedan | 2.0L 122 I4 |
| 2019 | Cadillac | ATS | Base, Coupe, Luxury | 2.0L 122 I4 |
| 2016 | Chevrolet | Camaro | LT | 2.0L 122 I4 |
| 2017 - 2023 | Chevrolet | Camaro | LS, LT | 2.0L 122 I4 |
