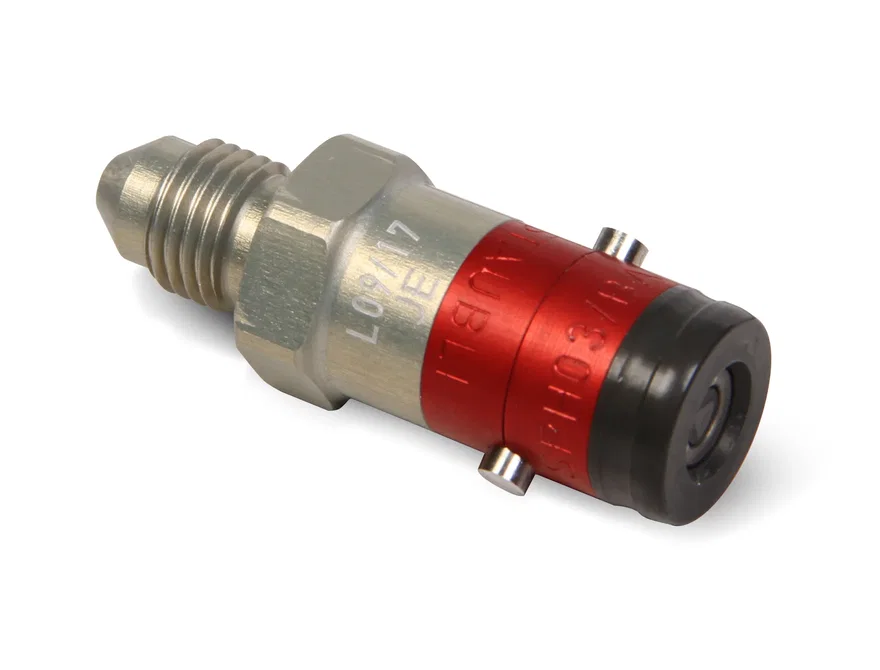

Earl's Performance SPH Bayonet Locking Dry Break
Part # JE270103ERLSKU EARJE270103ERL
Universal fit
| Brand | Earl's Performance |
|---|---|
| Part type | Hose Coupler |
| Adapter AN Size | 3 AN MALE |
| Adapter AN Size ( A ) | 3 AN MALE |
| Adapter Type | Dry Break Socket |
| Body Size | #3 |
| Brand | Earl's |
| Category | Hardware and Service Supplies |
| Dry Break Series | SPH |
| Emission Code | 5 |
| Finish | Anodized |
| Fluid Type | Brake Fluid |
| Inside Diameter | .125" |
| Material | Aluminum |
| Max Working Pressure | 2900 PSI |
| part type | Hose Coupler |
| Product Type | Accessory |
| Seal Material | EDPM |
| Sub Category | Hoses and Pipes |
| Temperature Range | -4° F to 302° F |
| Thread Size | 3AN |
| UPC / GTIN | 00090127665817 |
| Warranty | Manufacturer’s Limited 90 Day Warranty |
- High durability & dependability
Description
-3 AN Male Socket with 3/8-24 JIC End Fitting; EPDM Seals
Staubli SPH aluminum twist lock dry break couplings are available to transfer brake fluids, engine fuels and engine oils. The quick twist of the bayonet locks the coupler together. Available in standard and panel mount body styles in three different flow sizes. SPH flush face break couplers have a minimum loss of fluid leakage or air inclusion with double shut off ends which eliminates the need to purge the system. Internal design with large inside diameter provides optimal flow within the minimum outside diameter. Staubli SPH couplers that use Fluorocarbon (Viton)/FPM seals are for use with oils, fuels (non-ethanol), mineral greases and nitrogen and have an operating temperature -15F to 400F. Ethylene-Propylene seals (EPDM) are designed to work with all Glycol base brake fluids with operating temperature -4F to 302F.
