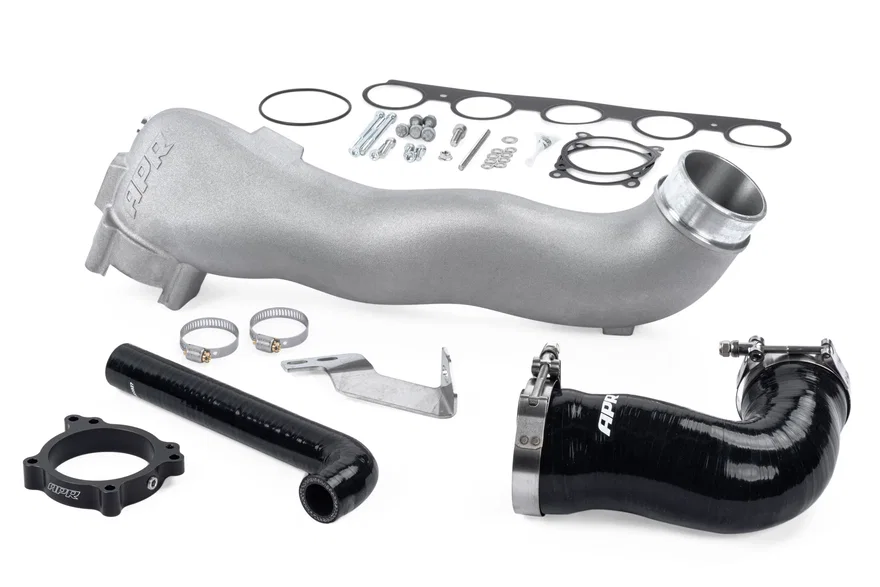

APR Throttle Body Inlet System - 2.5T EA855 EVO for Audi
Part # MS100198SKU APRMS100198
Set your vehicle above for a fit verdict. 2 vehicles listed below.
| Brand | APR |
|---|---|
| Part type | Intercooler Hose |
| Brand | APR |
| Category | Belts and Cooling |
| Construction | Billet, Cast |
| Emission Code | 7 |
| Hose Clamp Type | T-Bolt |
| Hose Type | Silicone |
| Material | 6061 Aluminum |
| Product Type | Charge Air Systems |
| Sub Category | Hoses and Pipes |
| UPC / GTIN | 00810009932789 |
| Warranty | Warranted to be free from defects in the materials and workmanship prior to installation |
- Flows 34% more than stock
- Full system from intercooler to throttle body
- Full length oversized cast aluminum throttle body pipe with sweeping transitions
- Eliminates 2 boost leak points
- Multi-ply wire-reinforced fluorosilicone-lined intercooler outlet hose with EZ-flow stepped lips
- Oversized setup starting at the intercooler outlet hose at approximately 72mm vs 64mm
- Billet aluminum throttle body adapter with boost and vacuum reference point
- High strength t-bolt clamps
- New intake manifold gasket, throttle body gaskets, o-rings, and one time use bolts
- CNC-bent and laser cut mounting bracket
- Silicone diverter valve reroute hose
- Full instructions and APR support included
- Compatible with 2019+ vehicles with optional adapter
Description
The APR Throttle Body Inlet System is a comprehensive upgrade to the factory charge pipe system from the intercooler outlet to the throttle body. We replace all components and provide a new, larger, free flowing system that flows roughly 34% more than stock! This was achieved by increasing the cross sectional area of the system and by reducing the tight radius bend directly in front of the throttle body.
More from APR
| MS100220 | $1,075.99 |
| MS100221 | $1,269.99 |
| MS100194 | $268.99 |
| MS100196 | $597.99 |
| MS100114 | $342.99 |
| MS100113 | $93.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2017 - 2020 | Audi | RS3 | 2.5L 151 I5 |
| 2018 - 2022 | Audi | TT RS Quattro | 2.5L 151 I5 |
