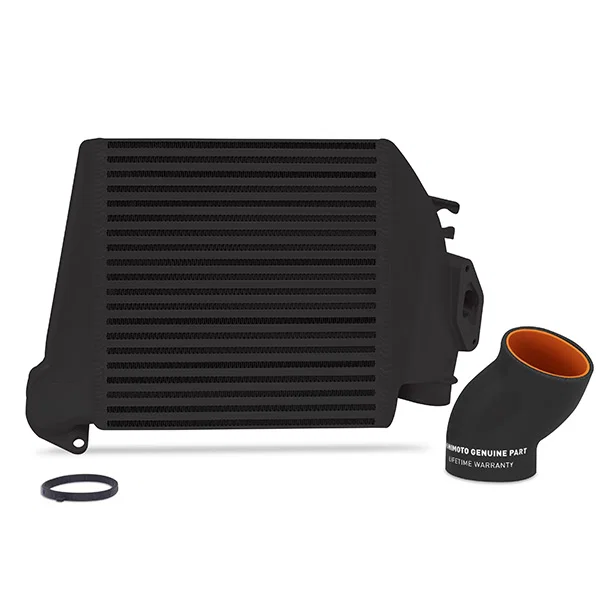

Mishimoto Top-Mount Intercooler, Black Cooler Black Hoses, fits Subaru WRX 2008-2014

Part # MMTMIC-WRX-08BKBKSKU MISMMTMIC-WRX-08BKBK

Set your vehicle above for a fit verdict. 20 vehicles listed below.

Specifications
BrandMishimoto
Part typeIntercooler Kit
CARB EO NumberD-759
Cold Side Pipe Inside Diameter2.75 in
Core ColorBlack
Core ConstructionBar-and-Plate
Core Height11 in
Core Length11 in
Core MaterialAluminum
Core Thickness3.5 in
Coupler ColorBlack
Coupler MaterialSilicone
End Tank ConstructionCast
End Tank MaterialAluminum
Grade TypePerformance
Hose Clamps IncludedYes
Hot Side Pipe Inside Diameter1.875 in
Inlet Diameter1.875 in
Install Difficulty3
Intercooler TypeAir-to-Air
Maximum Boost Pressure30 PSI
Maximum Horsepower350 hp
OptionLabelBlack Intercooler, Black Hoses
Outlet Diameter2.75 in
Pipe ColorBlack
Pipe FinishPowder Coated
Pipe MaterialAluminum
SellingPoint01Heavy-duty bar-and-plate core with cast end tanks to sustain high boost
SellingPoint02Core design optimized for optimal flow while providing excellent heat transfer
SellingPoint036 whp and 8 wtq increases
SellingPoint0412 F temperature decrease with minimal pressure drop
SellingPoint0580-percent larger core volume over stock
UPC / GTIN00748354011920
WarrantyLifetime Warranty
  • Heavy-duty bar-and-plate core with cast end tanks to sustain high boost
  • Core design optimized for optimal flow while providing excellent heat transfer
  • 6 whp and 8 wtq increases

Description

Looking for a way to reduce high intake temperatures on your stock or modified WRX? The solution is the Mishimoto direct-fit top-mount intercooler engineered specifically for the 2008--2014 Subaru WRX. The stock top-mount intercooler is prone to head soak and even failure of the stock plastic endtanks above 18psi. Mishimoto engineers spent months designing and testing this new intercooler to ensure optimum performance on both the street and track. This intercooler utilizes durable cast aluminum end tanks TIG-welded to a highly efficient, dense bar-and-plate core. The Mishimoto intercooler has a 3.75 thick core and a total volume of 584 in3. Thanks to this volume and a very dense offset fin pitch, we are able to optimize heat transfer and support vehicles from stock up to 400 whp. This intercooler endured rigorous testing, showing a 12 F temperature drop as well as a +6 whp and +8 wtq bolt-on power increase for our stock test vehicle. Installation is simple, requires no modification to any parts in the engine bay, and can be completed in under 30 minutes. Included with this intercooler are a new turbo-intercooler O-ring gasket, and Mishimoto's silicone throttle-body coupler. These components negate the need to gather supplies for installation, and they ensure years of reliable service. This intercooler is available in a durable powder-coated finish of Stealth Black or Sleek Silver, and it includes the Mishimoto Lifetime Warranty.

Fits these vehicles 20

YearMakeModelSubmodelEngine
2009SubaruForesterXT, XT Limited2.5L H4
2010SubaruForesterXT Limited, XT Premium, XT Sports2.5L H4
2011SubaruForesterXT Premium, XT Sports, XT Touring2.5L H4
2012SubaruForesterXT Limited, XT Premium, XT Sports, XT Touring2.5L H4
2013SubaruForesterXT Limited, XT Premium, XT Touring2.5L H4
2008SubaruImprezaWRX2.5L H4
2009SubaruImpreza2.5 GT, WRX, WRX Premium2.5L H4
2010SubaruImpreza2.5 GT, WRX, WRX GT, WRX Limited, WRX Premium, WRX SE2.5L H4
2011SubaruImprezaWRX, WRX Premium2.5L H4
2012 - 2014SubaruImprezaWRX, WRX Limited, WRX Premium2.5L H4
2005SubaruLegacyGT, GT Limited2.5L H4
2006SubaruLegacyGT, GT spec.B2.5L H4
2007 - 2008SubaruLegacyGT, GT Limited, GT spec.B2.5L H4
2009SubaruLegacyGT Limited, GT spec.B2.5L H4
2005 - 2007SubaruOutbackXT, XT Limited2.5L H4
2008SubaruOutback2.5 XT, XT, XT Limited2.5L H4
2009SubaruOutbackXT Limited2.5L H4
2012SubaruWRXBase2.5L H4
2013SubaruWRXBase, Limited2.5L H4
2014SubaruWRXBase, Limited, SE2.5L H4
