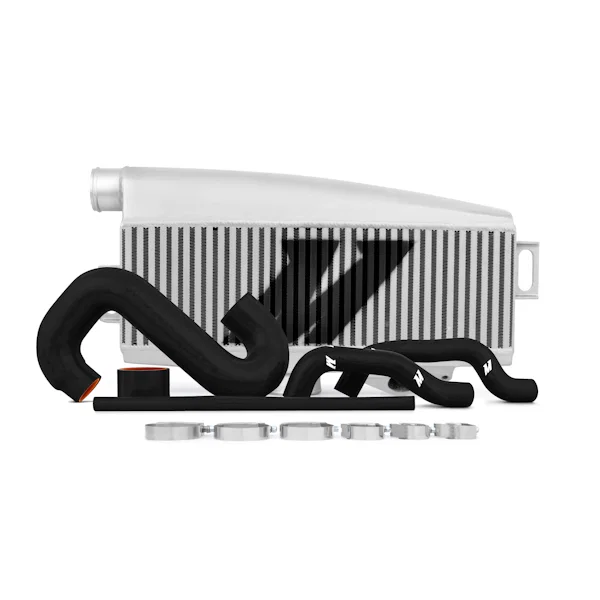

Mishimoto Top-Mount Intercooler Kit, Silver w/ Black Pipes, fits Subaru WRX/STI 2002-2007

Part # MMTMIC-WRX-01SLBKSKU MISMMTMIC-WRX-01SLBK

Set your vehicle above for a fit verdict. 6 vehicles listed below.

Specifications
BrandMishimoto
Part typeIntercooler Kit
CARB EO NumberD-759
Cold Side Pipe Inside Diameter2.75 in
Core ColorSilver
Core ConstructionBar-and-Plate
Core Height6 in
Core Length19 in
Core MaterialAluminum
Core Thickness3.5 in
Coupler ColorBlack
Coupler MaterialSilicone
End Tank ConstructionCast
End Tank MaterialAluminum
Grade TypePerformance
Hose Clamps IncludedYes
Hot Side Pipe Inside Diameter2.5 in
Inlet Diameter2.5 in
Install Difficulty3
Intercooler TypeAir-to-Air
Maximum Boost Pressure22 PSI
Maximum Horsepower305 hp
OptionLabelSilver Intercooler, Black Hoses
Outlet Diameter2.75 in
Pipe ColorBlack
Pipe FinishPowder Coated
Pipe MaterialAluminum
SellingPoint01Direct fit for the 2002-2007 Subaru WRX/STI
SellingPoint02High efficiency bar-and-plate core provides increased volume, optimal heat transfer, and significantly reduces AITs
SellingPoint03Durable and precision engineered cast aluminum end tanks provide smooth flow
SellingPoint04Includes silicone bypass hose, silicone crankcase ventilation hose, bypass valve gasket, T-bolt clamps, and all hardware for installation
SellingPoint05Unique single inlet design provides superior airflow and proper dispersion of air through the core
UPC / GTIN00748354011029
WarrantyLifetime Warranty
  • High efficiency bar-and-plate core provides increased volume, optimal heat transfer, and significantly reduces AITs
  • Durable and precision engineered cast aluminum end tanks provide smooth flow
  • Includes silicone bypass hose, silicone crankcase ventilation hose, bypass valve gasket, T-bolt clamps, and all hardware for installation

Description

Subaru WRX/STI Top-Mount Intercooler Kit provides a unique option for upgrading your charge air system. This kit utilizes a single entry inlet compared to the stock Y-pipe setup. This unique tank design provides maximum airflow and superior air dispersion through the core, a process which results in optimal AIT reduction. This intercooler uses a high efficiency bar-and-plate core which provides increased volume and improved heat transfer. The kit is completely bolt-on, requiring zero modifications to your vehicle. The Mishimoto intercooler kit includes silicone bypass hoses for both the WRX and STI, a silicone crankcase ventilation hose, a bypass valve gasket, a silicone throttle body hose, and all the T-bolt clamps and hardware necessary for installation. This intercooler kit has endured rigorous testing on both stock and modified vehicles and has proven to increase power and reduce air intake temperatures. On our 305 hp test vehicle running 20-22 psi of boost, this intercooler provided a 14 hp increase and a 30 degree drop in AITs compared to the stock STI intercooler-- for more testing details, check out the engineering report! Thanks to a precision engineered and tested core construction, this intercooler will support vehicles with up to 350 hp. This kit is available with either a Stealth Black or Sleek Silver cooler and includes the Mish imoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

Fits these vehicles 6

YearMakeModelSubmodelEngine
2005Saab9-2XAero2.0L H4
2006Saab9-2XAero2.5L H4
2002 - 2003SubaruImprezaWRX2.0L H4
2004 - 2005SubaruImprezaWRX, WRX STI2.0L H4, 2.5L H4
2006SubaruImprezaWRX, WRX Limited, WRX STI, WRX TR2.5L H4
2007SubaruImprezaWRX, WRX Limited, WRX STI, WRX STI Limited, WRX TR2.5L H4
