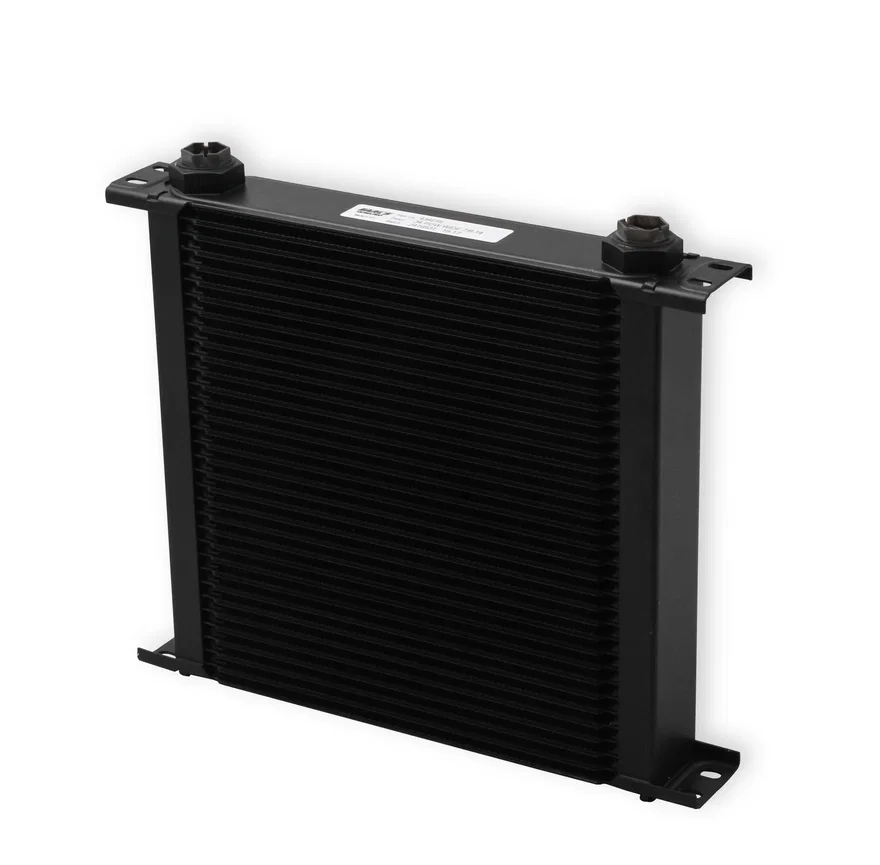

Earl's Performance UltraPro Oil Cooler - Black - 34 Rows - Wide Cooler

Part # 434ERLSKU EAR434ERL

Universal fit

Specifications
BrandEarl's Performance
Part typeEngine Oil Cooler
ApplicationEngine Oil Cooler
Body Width (Overall)13.000"
Brackets IncludedNo
BrandEarl's
CategoryCooling
ConstructionStacked Plate - Brazed
Cooler Fittings585108ERL
Cooler Fittings IncludedNo
Emission Code5
Engine HP Range400-475 HP
Engine Oil BTU Range43,000-59,000
FinishBlack
Fitting Centers9.530"
Height10.390"
MaterialAluminum
Mounting Bracket Width12.200"
Mounting Brackets400ERL
part typeEngine Oil Cooler
Port Size7/8-14 Female (-10 O-Ring Boss)
Product LineUltraPro
Product TypeOil Cooler
ROWS34 Rows
Temperature Range-40° F to 302° F
Thickness2.000"
Volume.75 Quarts
Weight4.50 Lbs
WidthWide Cooler
Width (Less Mounting Ears)11.125"
UPC / GTIN00090127040041
WarrantyManufacturer’s Limited 90 Day Warranty
  • Optional Mounting Brackets – Sold Separately

Description

Earls new premium quality UltraPro oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e. engine oil cooler, transmission cooler, power steering cooler, valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow. Black Finish.
