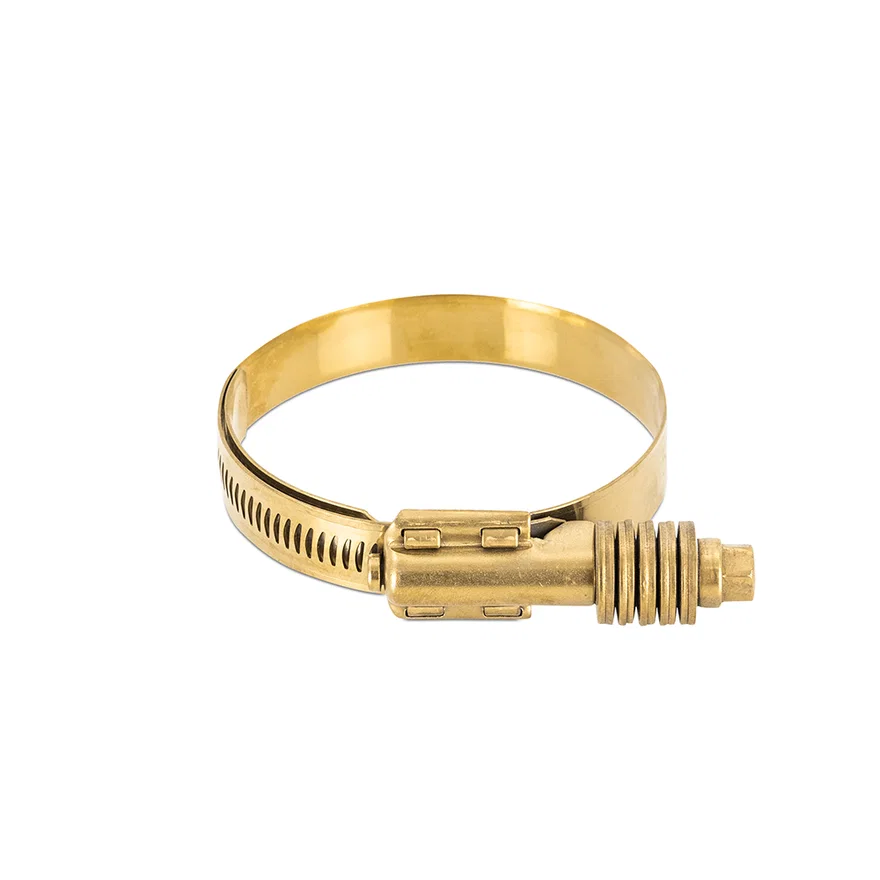

Mishimoto Worm Gear Clamp, Constant Tension, Gold, 3.27 in to 4.13in

Part # MMCLAMP-CTWG-105GDSKU MISMMCLAMP-CTWG-105GD

Universal fit

Specifications
BrandMishimoto
Part typeHose Clamp
Band Width0.62 in
ColorGold
FinishPlain
Grade TypePremium
Install Difficulty1
MaterialStainless Steel
Maximum Diameter4.13 in
Minimum Diameter3.27 in
OptionLabelGold
Recommended Torque168 lbs/in
ReusableYes
SAE Size68
SAE TypeF
SellingPoint01Securely clamps pipes, couplers, and hoses with an outer diameter from 3.27- 4.13-in (83mm-105mm)
SellingPoint02Constant tension spring maintains clamping pressure through a wide range of temperatures
SellingPoint03Worm gear design for quick and easy tightening
SellingPoint04Stainless steel construction resists corrosion longer than zinc-plated clamps
SellingPoint05Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
SellingPoint06Clamps sold individually
SellingPoint07Mishimoto Lifetime Warranty
Size4.13 in
Spring MaterialSteel
TechSpec Band Width (in)0.62
TechSpec Clamp StyleConstant Tension Worm Gear Clamp
TechSpec Includes(1) Mishimoto Constant Tension Worm Gear Clamp--Mishimoto Lifetime Warranty
TechSpec MaterialStainless Steel
TechSpec Maximum Clamp Diameter (in)4.13
TechSpec Minimum Clamp Diameter (in)3.27
TechSpec NoteIf using this clamp, we recommend purchasing:--MMICP-SS-25U----MMICP-SS-3U
TechSpec Recommended Tightening Torque14 lb-ft (20 NM)
UPC / GTIN00840197707319
WarrantyLifetime Warranty
  • Securely clamps pipes, couplers, and hoses with an outer diameter from 3.27- 4.13-in (83mm-105mm)
  • Constant tension spring maintains clamping pressure through a wide range of temperatures
  • Worm gear design for quick and easy tightening

Description

Just like our high-torque worm gear clamps, Mishimoto's Constant Tension Worm Gear Clamps are an effective solution to a wide range of clamping needs. Where this 3.27" - 4.13" (83mm - 105mm) constant tension worm gear clamp excels, however, is in high-temperature applications. The spring on the adjustment bolt allows the clamp to exert continuous pressure through a wide range of temperatures to ensure your parts stay clamped as strong as the day you installed them. This 3.27" - 4.13" (83mm - 105mm) constant tension worm gear clamp is made from stainless steel to weather any environment and ensure a tight seal for years to come. Our constant tension worm gear clamps are also available in a wide variety of other sizes to suit everything from coolant lines to intake pipes. Like all Mishimoto products, this 3.27" - 4.13" (83mm - 105mm) constant tension worm gear clamp is backed by our Mishimoto Lifetime Warranty.
