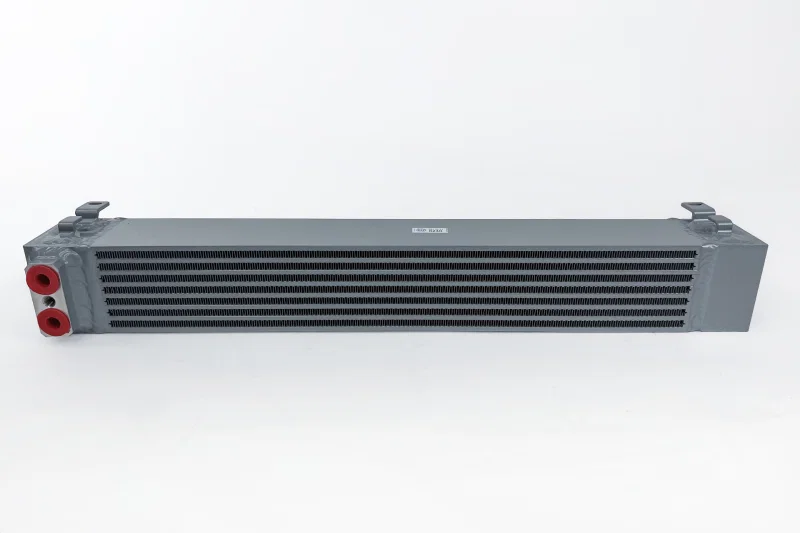

CSF BMW S54 Swap Race-Spec Oil Cooler
Part # 8240SKU CSF8240
Set your vehicle above for a fit verdict. 8 vehicles listed below.
| Brand | CSF |
|---|---|
| Part type | Engine Oil Cooler |
| UPC / GTIN | 00710353082409 |
- Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable & Durable Oil Cooler Available
- Fully TIG-Welded Extruded End Tank Design for Superior Reliability & Durability
- 8 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design
- Designed to Work with CSF's S54 Swap All-Aluminum Radiator (CSF #7211)
- Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow
- For S54 Swap Vehicles without Air Conditioning (A/C) see CSF #8032
- For S54 Swap Vehicles with Air Conditioning (A/C)
- Accepts Factory Oil-Line Connections
- Motorsport Silver Finish
Description
Enter the new CSF S54 Swap Race Spec Oil Cooler. This new oil cooler is shorter on the right hand side allowing owners to run the A/C lines in the OEM path. Even though the #8240 is slightly smaller than the #8032, you can expect similar performance levels as they both feature a dual pass design with 8 cooling rows and are the same turbulated heavy-duty bar/plate construction. Both oil coolers utilize the S54 OEM oil line connections. However, CSF will be offering a fitting kit with -10 AN hookups for customers looking to run custom oil lines. This fitting kit should be available by the second quarter of 2023.
More from CSF
| 8032 | $783.04 |
| 8275 | $882.88 |
| 8041 | $569.09 |
| 8145 | $569.09 |
| 8103 | $569.09 |
| 8104 | $569.09 |
| Year | Make | Model |
|---|---|---|
| 1998 | BMW | 323i |
| 1998 - 1999 | BMW | 323is |
| 1992 - 1995 | BMW | 325i |
| 1992 - 1995 | BMW | 325is |
| 1996 - 1998 | BMW | 328i |
| 1996 - 1999 | BMW | 328is |
| 1995 - 1999 | BMW | M3 |
| 1997 - 2002 | BMW | Z3 |
