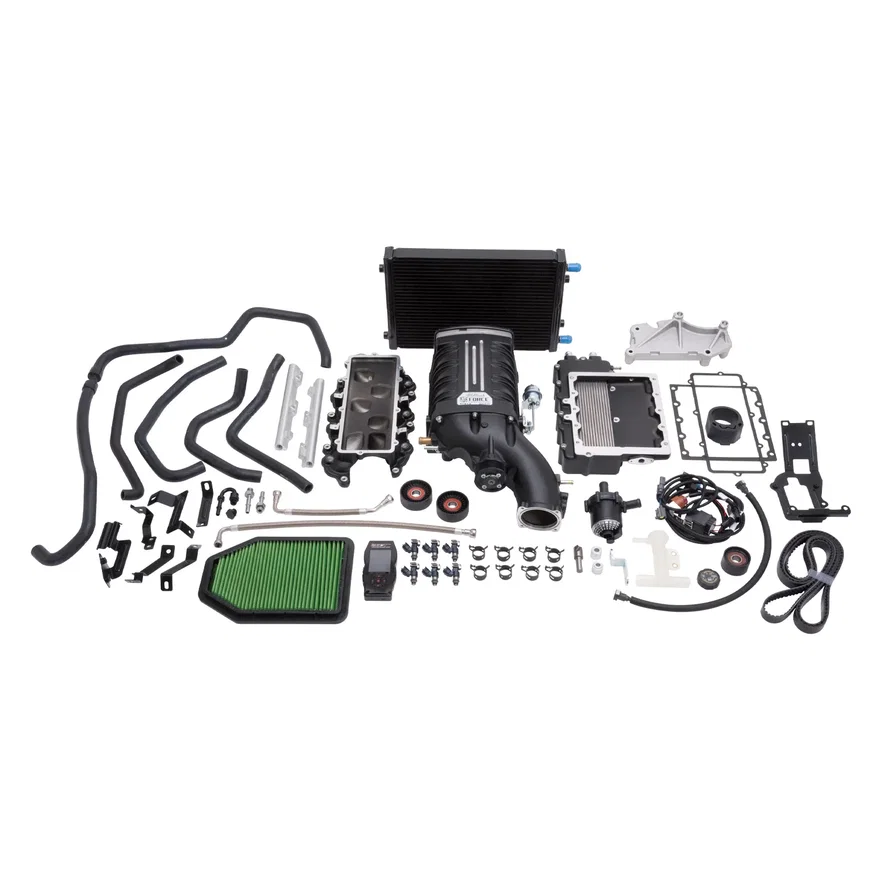

Edelbrock E-Force Supercharger for 2012-14 Jeep Wrangler JK 3.6L

Part # 1527SKU EDE1527

Set your vehicle above for a fit verdict. 1 vehicle listed below.

Specifications
BrandEdelbrock
Part typeSupercharger Kit
Air Filter IncludedYes
CalibrationYes
Center Housing Cooling TypeIntercooler
FinishBlack Powder Coated
Fuel Injector Type42
Gasket Or Seal IncludedYes
Harmonic Balancer Diameter6.1 in
Hose IncludedYes
Housing MaterialCast Aluminum
Internal Step UpYes
Maximum Boost Pressure8 PSI
Maximum Horsepower317RW (Manual Trans)/285RW (Auto Trans); With Stock Tires
Maximum Pressure Reading8 PSI
Maximum Torque277RW (Manual Trans)/235RW (Auto Trans); With Stock Tires
Mounting Bracket IncludedYes
Mounting Hardware IncludedYes
Oil Capacity125 mL
Outside Pulley Diameter2.625 in
Pulley Belt Width6-Rib
QuantityKit
Rotor TypeEaton TVS 1320
System TypeStage 1 - Street System
Universal Or Specific FitSpecific
Vehicle ModelWrangler
UPC / GTIN00085347015276

Description

The Edelbrock Supercharger System #1527 for your 2012-14 Jeep Wrangler delivers 317 RWHP and 277 RWTQ for a manual and 303 RWHP and 262 RWTQ for an automatic. This Supercharger is exclusively for the Pentastar 3.6L V6 engine with a unique design and minimal components that makes it possible to fit under the stock hood. The core of each system is the Eaton Gen VI 1320 TVS rotating assembly with a four-lobe design having 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.

Fits these vehicles 1

YearMakeModelEngine
2012 - 2014JeepWrangler3.6L 220 V6
