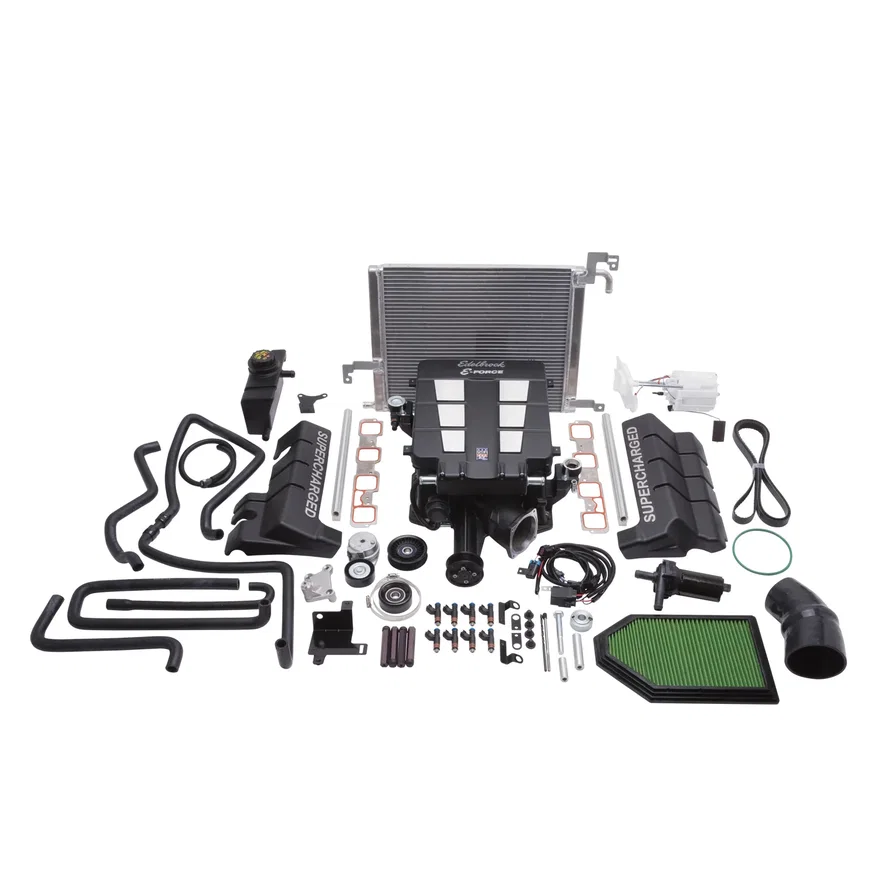

Edelbrock E-Force Supercharger for 2011-14 Chrysler/Dodge 5.7L

Part # 1534SKU EDE1534

Set your vehicle above for a fit verdict. 5 vehicles listed below.

Specifications
BrandEdelbrock
Part typeSupercharger Kit
Air Filter IncludedYes
CalibrationYes
Center Housing Cooling TypeIntercooler
FinishBlack Powder Coated
Fuel Injector Type46
Fuel Pump IncludedYes
Gasket Or Seal IncludedYes
Harmonic Balancer Diameter6.3 in
Hose IncludedYes
Housing MaterialCast Aluminum
Internal Step UpYes
Maximum Boost Pressure6 PSI
Maximum Horsepower471RW
Maximum Pressure Reading6 PSI
Maximum Torque475RW
Mounting Bracket IncludedYes
Mounting Hardware IncludedYes
Oil Capacity150 mL
Outside Pulley Diameter3.25 in
Pulley Belt Width6-Rib
QuantityKit
Rotor TypeEaton TVS 2300
System TypeStage 1 - Street System
Tensioner IncludedYes
Universal Or Specific FitSpecific
Vehicle Model300
UPC / GTIN00085347015344

Description

The Edelbrock Supercharger System part #1534 is designed for your 2011-14 5.7L HEMI Chrysler 300, Dodge Charger or Challenger and produces 471 RWHP and 475 RWTQ. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.

Fits these vehicles 5

YearMakeModelEngine
2011 - 2012Chrysler3005.7L 345 V8
2013Chrysler300
2014Chrysler3005.7L 345 V8
2011 - 2014DodgeChallenger5.7L 345 V8
2011 - 2014DodgeCharger5.7L 345 V8
