Part # 1556SKU EDE1556
Set your vehicle above for a fit verdict. 3 vehicles listed below.
| Brand | Edelbrock |
|---|---|
| Part type | Supercharger Kit |
| Air Filter Included | Yes |
| Calibration | Yes |
| Center Housing Cooling Type | Intercooler |
| Finish | Black Powder Coated |
| Gasket Or Seal Included | Yes |
| Harmonic Balancer Diameter | Stock |
| Hose Included | Yes |
| Housing Material | Cast Aluminum |
| Internal Step Up | Yes |
| Maximum Boost Pressure | 9 PSI |
| Maximum Horsepower | 242RW |
| Maximum Pressure Reading | 9 PSI |
| Maximum Torque | 186RW |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | Yes |
| Oil Capacity | 125 mL |
| Outside Pulley Diameter | 3.25 in |
| Pulley Belt Width | 6-Rib |
| Quantity | Kit |
| Rotor Type | Eaton TVS 1320 |
| System Type | Stage 1 - Street System |
| Universal Or Specific Fit | Specific |
| Vehicle Model | FRS/BRZ/FT86 |
| UPC / GTIN | 00085347015566 |

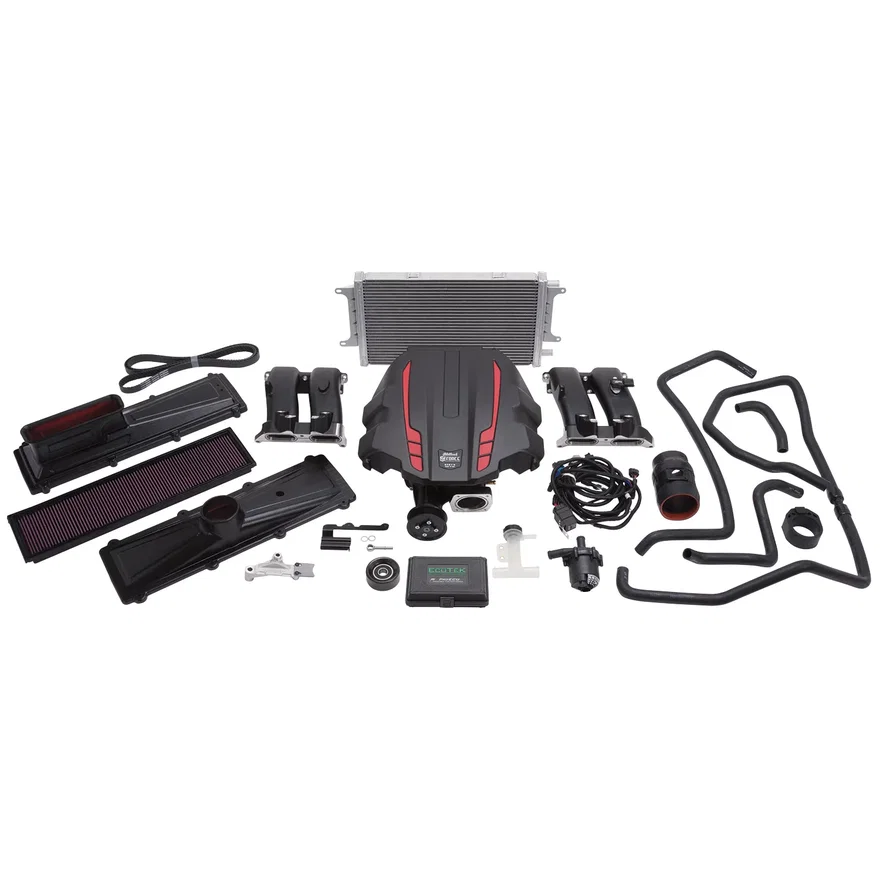

The Edelbrock Stage 1 Street Supercharger System part #1556 for 2012-19 Scion FR-S, BRZ, or Toyota GT86 increases the performance of your 2.0L engine to 242 horsepower and 186 ft-lbs of torque at the rear wheels. This Edelbrock Supercharger System is designed exclusively for the FA20/4U-GSE engine. Its unique inverted design utilizes the Eaton 1320 TVS rotor assembly for maximum efficiency in a compact package. This system features an efficient high flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance. An air-to-water intercooler and front mount heat exchanger deliver a cool, dense air charge resulting in dramatically improved performance, especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. The supercharger assembly is finished with a durable black powder coating with red accents for a unique look that will let everybody know your car is Edelbrock supercharged! The Edelbrock #1556 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
| 1518 | $13,938.99 |
| 1557 | $19,517.99 |
| 15284 | $17,126.99 |
| 15354 | $19,915.99 |
| 15356 | $21,908.99 |
| 1577 | $17,923.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2013 - 2016 | Scion | FR-S | 2.0L 122 H4 |
| 2013 - 2017 | Subaru | BRZ | 2.0L 122 H4 |
| 2017 | Toyota | 86 | 2.0L 122 H4 |
