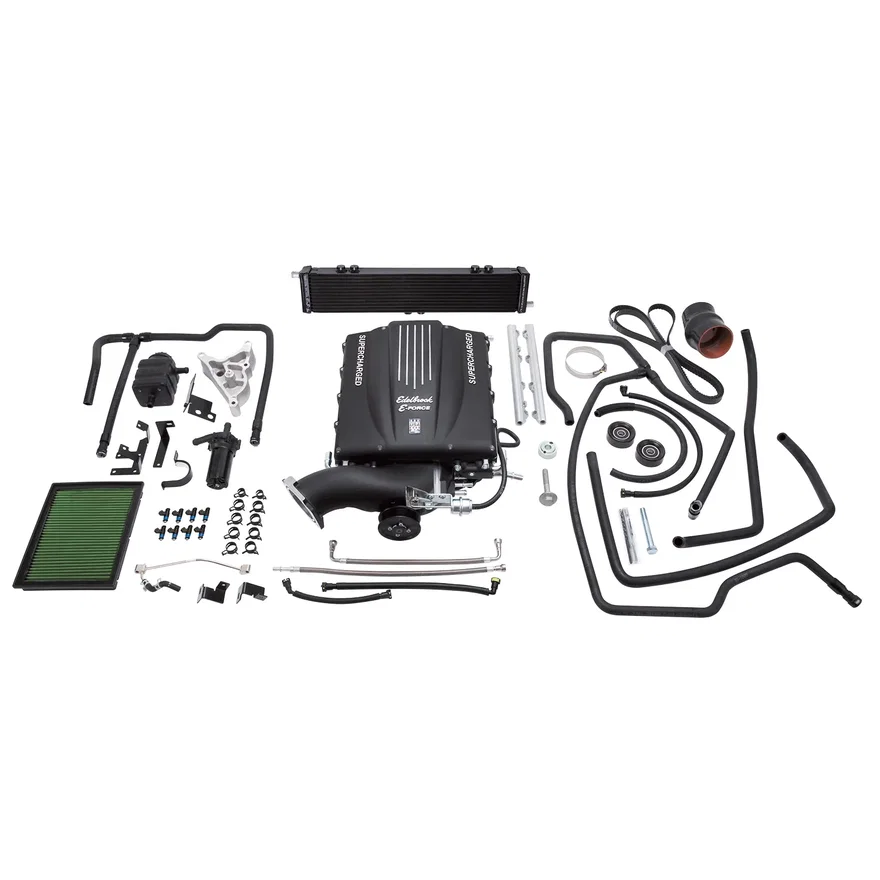

Edelbrock E-Force Supercharger for 2003-07 Silverado/Sierra 4.8L/5.3L/6.0L (no Tune)

Part # 15770SKU EDE15770

Set your vehicle above for a fit verdict. 4 vehicles listed below.

Specifications
BrandEdelbrock
Part typeSupercharger Kit
Air Filter IncludedYes
CalibrationNo
Center Housing Cooling TypeIntercooler
FinishBlack Powder Coated
Fuel Injector Type42
Gasket Or Seal IncludedYes
Harmonic Balancer Diameter7.5 in
Hose IncludedYes
Housing MaterialCast Aluminum
Internal Step UpYes
Mounting Bracket IncludedYes
Mounting Hardware IncludedYes
Oil Capacity150 mL
Outside Pulley Diameter4.125 in
Pulley Belt Width6-Rib
QuantityKit
Rotor TypeEaton TVS 2300
System TypeStage 1 - Street System
Universal Or Specific FitSpecific
Vehicle ModelSilverado
UPC / GTIN00085347157709

Description

The Edelbrock supercharger Stage 1 Street system part #15770 for 2003-06 Silverado and Sierra 1500 and 2007 Sierra Classic increases the performance of your 6.0L Gen III engine to 364 horsepower and 397 ft-lbs of torque at the rear wheels, when used with Edelbrock tune (kit supplied without a programmer). The Edelbrock #15770 Supercharger also works with the 4.8L & 5.3L Gen III engines, HP & Torque numbers will vary. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. The #15770 system increases the performance of your 4.8L Gen III engine to 339 horsepower and 359 ft-lbs of torque and for the 5.3L Gen III engine increases to 339 horsepower and 359 ft-lbs of torque at the rear wheels, when used with Edelbrock tune (kit supplied without a programmer).

Fits these vehicles 4

YearMakeModelEngine
2003 - 2006ChevroletSilverado 15004.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8
2007ChevroletSilverado 1500 Classic4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8
2003 - 2006GMCSierra 15004.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8
2007GMCSierra 1500 Classic4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8
