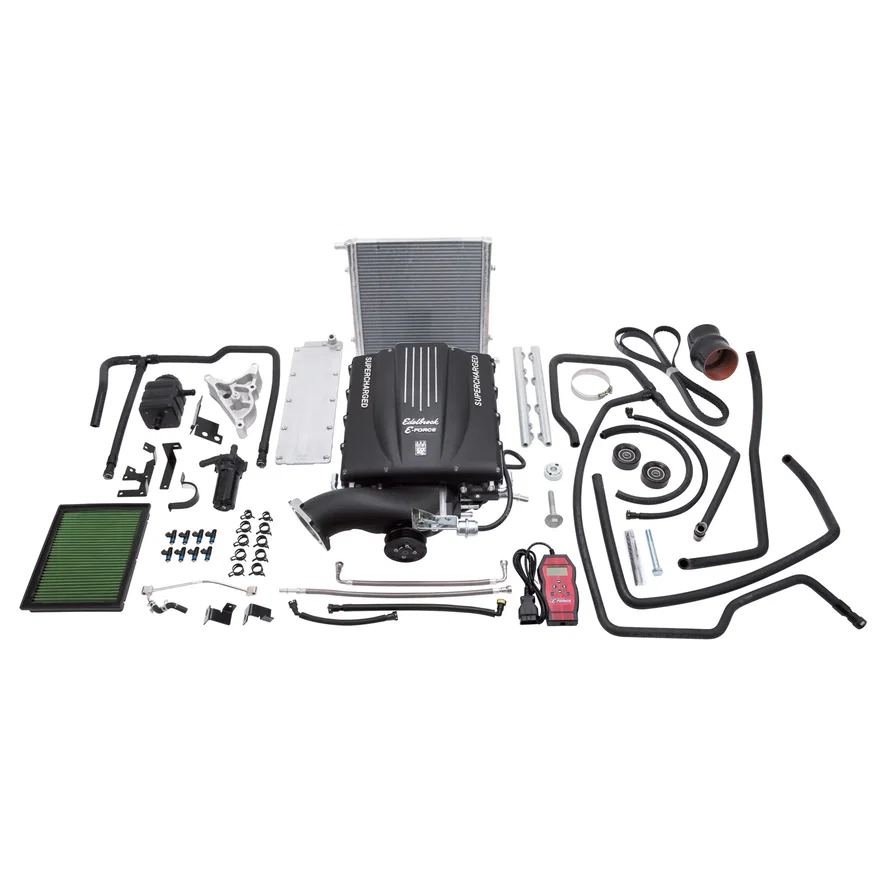

Edelbrock E-Force Supercharger for 2007-13 Silverado/Sierra 4.8L/5.3L for Chevrolet Silverado 1500

Part # 1578SKU EDE1578

Set your vehicle above for a fit verdict. 1 vehicle listed below.

Specifications
BrandEdelbrock
Part typeSupercharger Kit
Air Filter IncludedYes
CalibrationYes
Center Housing Cooling TypeIntercooler
FinishBlack Powder Coated
Fuel Injector Type42
Gasket Or Seal IncludedYes
Harmonic Balancer Diameter7.5 in
Hose IncludedYes
Housing MaterialCast Aluminum
Internal Step UpYes
Maximum Boost Pressure6 PSI
Maximum Horsepower334RW; 364RW
Maximum Pressure Reading6 PSI
Maximum Torque380RW; 397RW
Mounting Bracket IncludedYes
Mounting Hardware IncludedYes
Oil Capacity150 mL
Outside Pulley Diameter4.125 in
Pulley Belt Width6-Rib
QuantityKit
Rotor TypeEaton TVS 2300
System TypeStage 1 - Street System
Universal Or Specific FitSpecific
Vehicle ModelSierra 1500
UPC / GTIN00085347015788

Description

The Edelbrock supercharger Stage 1 Street system part #1578 is for 2007-13 Silverado and Sierra 1500 trucks. This supercharger system works with the 4.8L and 5.3L Gen III engines and increases the performance of the 4.8L engine to 334 horsepower and 380 ft-lbs of torque at the rear wheels and the 5.3L engine to 364 horsepower and 397 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1578 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Fits these vehicles 1

YearMakeModelEngine
2007 - 2013ChevroletSilverado 15004.8L 294 V8, 5.3L 325 V8
