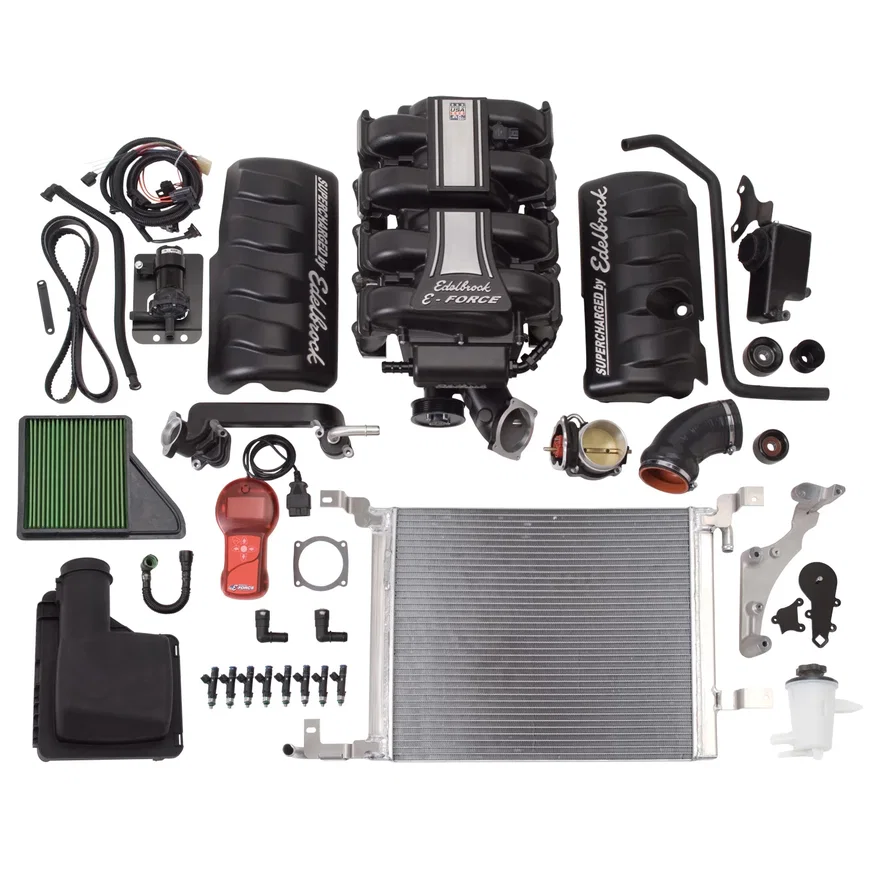

Edelbrock E-Force Supercharger for 2010 Mustang GT 4.6L 3V - Stage 1

Part # 1582SKU EDE1582

Set your vehicle above for a fit verdict. 1 vehicle listed below.

Specifications
BrandEdelbrock
Part typeSupercharger Kit
Air Filter IncludedYes
CalibrationYes
Center Housing Cooling TypeIntercooler
FinishBlack Powder Coated
Fuel Injector Type41
Gasket Or Seal IncludedYes
Harmonic Balancer Diameter6.67 in
Hose IncludedYes
Housing MaterialCast Aluminum
Internal Step UpYes
Maximum Boost Pressure4.75 PSI
Maximum Horsepower466
Maximum Pressure Reading4.75 PSI
Maximum Torque439
Mounting Bracket IncludedYes
Mounting Hardware IncludedYes
Oil Capacity150 mL
Outside Pulley Diameter3.875 in
Pulley Belt Width6-Rib
QuantityKit
Rotor TypeEaton TVS 2300
System TypeStage 1 - Street System
Tensioner IncludedYes
Universal Or Specific FitSpecific
Vehicle ModelF-150
UPC / GTIN00085347015825

Description

The Edelbrock supercharger Stage 1 Street system part #1582 for 2010 Mustangs increases the performance of your 4.6L 3V engine to 466 horsepower and 439 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1582 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Fits these vehicles 1

YearMakeModelEngine
2010FordMustang4.6L 281 V8
