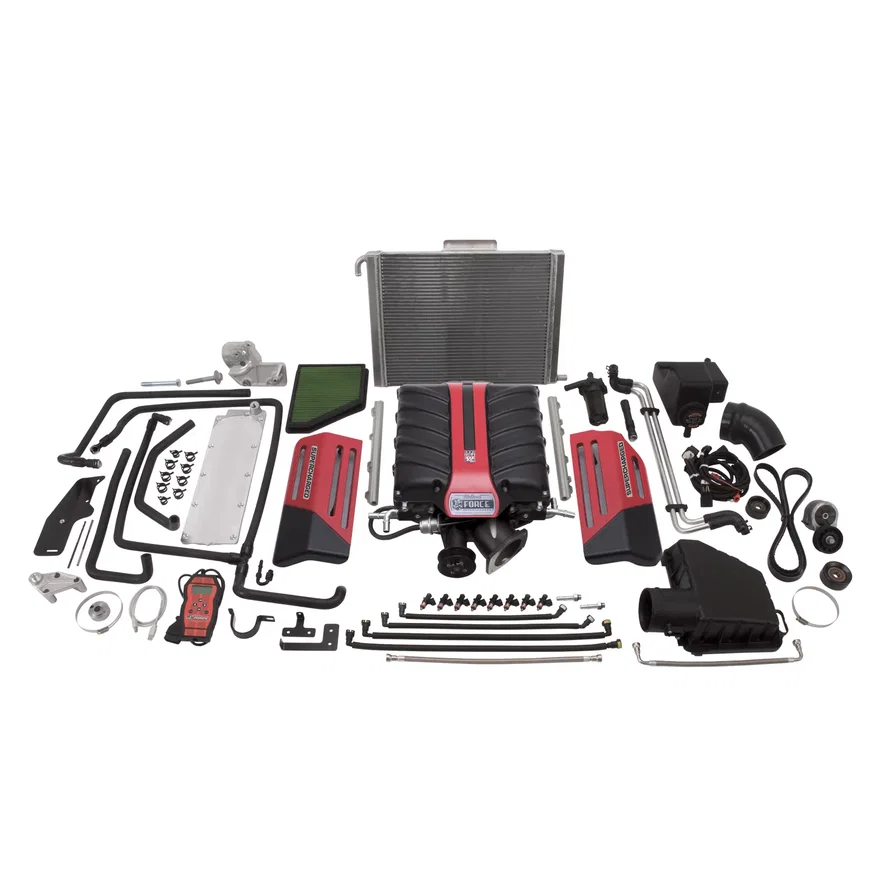

Edelbrock E-Force Supercharger for 2010-13 Camaro SS LS3 Manual Transmission

Part # 1598SKU EDE1598

Set your vehicle above for a fit verdict. 1 vehicle listed below.

Specifications
BrandEdelbrock
Part typeSupercharger Kit
Air Filter IncludedYes
CalibrationYes
Center Housing Cooling TypeIntercooler
FinishBlack Powder Coated
Fuel Injector Type52
Gasket Or Seal IncludedYes
Harmonic Balancer Diameter7.5 in
Hose IncludedYes
Housing MaterialCast Aluminum
Internal Step UpYes
Maximum Boost Pressure7.5 PSI
Maximum Horsepower599
Maximum Pressure Reading7.5 PSI
Maximum Torque547
Mounting Bracket IncludedYes
Mounting Hardware IncludedYes
Oil Capacity150 mL
Outside Pulley Diameter3.5 in
Pulley Belt Width6-Rib
QuantityKit
Rotor TypeEaton TVS 2300
System TypeStage 1 - Street System
Tensioner IncludedYes
Transmission TypeManual
Universal Or Specific FitSpecific
Vehicle ModelCamaro
UPC / GTIN00085347015986

Description

The Edelbrock supercharger Stage 1 Street system part #1598 for 2010-2013, Manual Trans, Camaro SS increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. T he Edelbrock #1598 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. 2010-15 convertible installations will require the use of Edelbrock Convertible Brace #15956 (sold separately).

Fits these vehicles 1

YearMakeModelSubmodel
2010 - 2013ChevroletCamaroSS
