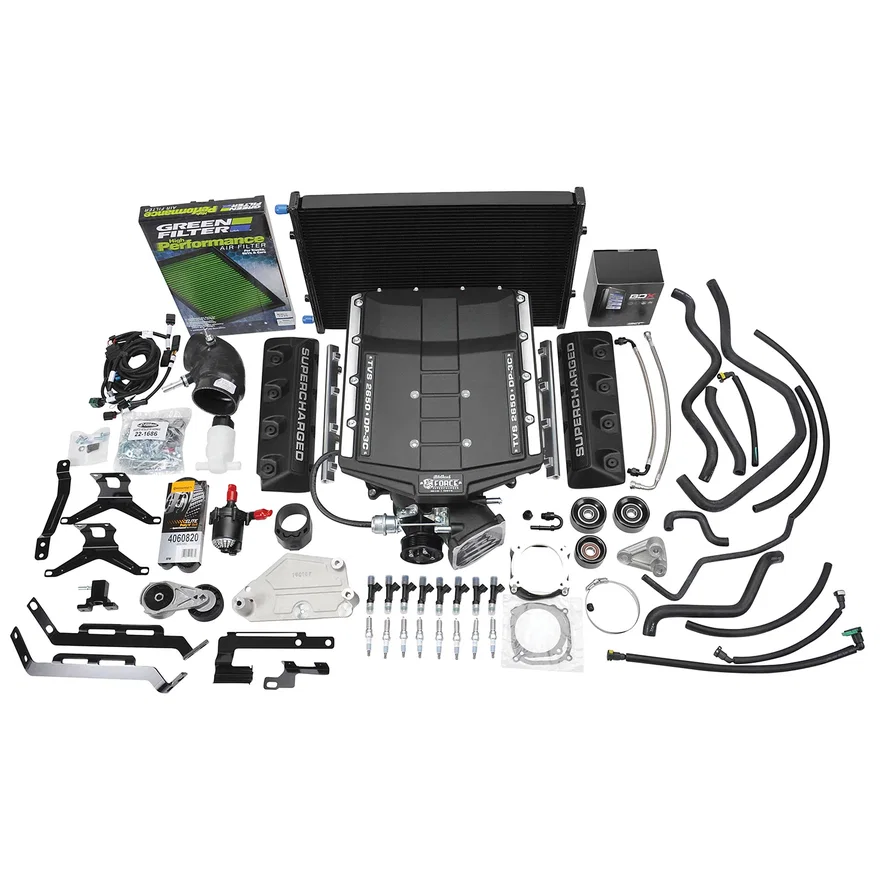

Edelbrock E-Force Supercharger System #15838 for 2015-17 Ford Mustang 5.0L

Part # 15838SKU EDE15838

Set your vehicle above for a fit verdict. 1 vehicle listed below.

Specifications
BrandEdelbrock
Part typeSupercharger Kit
Air Filter IncludedYes
CalibrationYes
Center Housing Cooling TypeIntercooler
FinishBlack Powder Coated
Fuel Injector Type50
Gasket Or Seal IncludedYes
Harmonic Balancer Diameter6.67 in
Hose IncludedYes
Housing MaterialCast Aluminum
Internal Step UpYes
Maximum Boost Pressure15.5 PSI
Maximum Horsepower690
Maximum Pressure Reading15.5 PSI
Maximum Torque588
Mounting Bracket IncludedYes
Mounting Hardware IncludedYes
Oil Capacity150 mL
Outside Pulley Diameter3.25 in
Pulley Belt Width6-Rib
QuantityKit
Rotor TypeEaton TVS 2650
Spark Plugs IncludedYes
System TypeStage 1 - Street System
Tensioner IncludedYes
Universal Or Specific FitSpecific
Vehicle ModelMustang
UPC / GTIN00085347158386

Description

Edelbrock's performance-proven modular-inlet supercharger system is now available for owners of 2015-2017 Ford Mustangs with the 5.0L Coyote engine. The new Edelbrock supercharger #15838 is a complete bolt-on kit that produces an impressive 690 horsepower with 588 ft-lbs of torque. At the heart of this system is Eaton's biggest R2650 TVS rotor assembly housed in a new manifold with an integrated high-capacity DP3C (dual-pass, three-core) air-to-water intercooler for lower inlet air temperatures and increased power potential. The 170-degree high-twist lobes, bigger bearings and beefier timing gears e nsure maximum reliability with smooth acceleration throughout the powerband. The Edelbrock supercharger for the 5.0L V8 fits under the stock hood with absolutely no cutting or modifications required. And if you're concerned about the effect on MPG, the increase in power comes with little to no loss in fuel economy thanks to the supercharger's integrated bypass valve that mitigates parasitic power loss during normal driving. This new kit is a true bolt-on that requires no additional modifications to the stock engine. For those who want more power, an Edelbrock Stage 2 Upgrade Kit #15884 can be added to transform your Mustang into a track-ready beast! The Edelbrock supercharger for the 2015-17 Mustang has a self-contained lubrication system with a 100,000-mile service interval and comes finished in a durable black powder-coating that blends nicely into the engine compartment. Each kit includes a complete set of preformed hoses, hardware and a full-color manual that provides clear step-by-step instructions for ease of installation. This system is designed and manufactured in the USA and is covered by Edelbrock's industry-leading 3-year/36,000-mile warranty.

Fits these vehicles 1

YearMakeModelEngine
2015 - 2017FordF-1505.0L 302 V8
