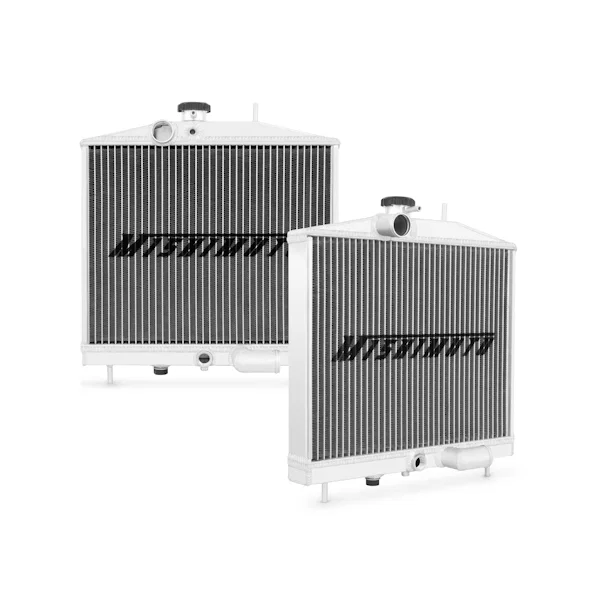

Mishimoto Performance Aluminum Radiator, fits Honda Civic EG W/K-Swap 1992-1995
Part # MMRAD-K20-EGSKU MISMMRAD-K20-EG
Set your vehicle above for a fit verdict. 3 vehicles listed below.
| Brand | Mishimoto |
|---|---|
| Part type | Radiator |
| Position | Primary |
| Core Finish | Uncoated |
| Core Height | 11.61 in |
| Core Length | 14.88 in |
| Core Material | Aluminum |
| Core Row Quantity | 2 |
| Core Thickness | 1.57 in |
| Down Flow Or Cross Flow Type | Down Flow |
| Drain Plug Included | Yes |
| Drain Plug Thread Size | M12 - 1.5 |
| Fluid Capacity | 0 gal |
| Inlet Diameter | 1.25 in |
| Inlet Location | Top Left |
| Install Difficulty | 3 |
| Outlet Diameter | 1.25 in |
| Outlet Location | Bottom Center |
| Overall Height | 15.04 in |
| Overall Length | 16.73 in |
| Overall Width | 4.02 in |
| Radiator Cap Included | Yes |
| SellingPoint01 | Designed specifically for the 1992-1995 Honda Civic EG chassis with K-series engine swap |
| SellingPoint02 | Provides a bolt-in cooling solution, simplifying the engine swap process |
| SellingPoint03 | Full aluminum construction with durable, TIG-welded end tanks |
| SellingPoint04 | Features a two-row, 1.57-in thick, efficient brazed aluminum core |
| SellingPoint05 | Substantial fluid capacity and optimal heat dissipation |
| SellingPoint06 | Provides efficient heat exchange for naturally aspirated and forced induction vehicles |
| SellingPoint07 | Includes threaded fan switch port to function with stock sensor |
| SellingPoint08 | Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint09 | Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance |
| SellingPoint10 | Mishimoto Lifetime Warranty |
| UPC / GTIN | 00748666001336 |
| Warranty | Lifetime Warranty |
- Designed specifically for the 1992-1995 Honda Civic EG chassis with K-series engine swap
- Provides a bolt-in cooling solution, simplifying the engine swap process
- Full aluminum construction with durable, TIG-welded end tanks
Description
Mishimoto is proud to release a brand new radiator for EG chassis Civics with K-Series engine swaps.Our half size radiator is designed specifically for your swapped vehicle with high performance driving in mind.This radiator is a direct drop in unit that does not require any trimming, drilling or mount alterations.The Mishimoto radiator will simplify a cooling solution for your K-swap and includes ports for the fan switch and coolant temperature sensor. All Mishimoto radiators include a high pressure 1.3 bar Mishimoto radiator cap and a lifetime warranty.
More from Mishimoto
| R2703 | $357.99 |
| MMRAD-CK-47X | $639.99 |
| R2294-AT | $284.99 |
| MMRAD-ECL-95TX | $662.99 |
| MMRAD-CAM-82 | $595.99 |
| MMRAD-MUS-79 | $484.99 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992 - 1995 | Honda | Civic | CX, DX, EX, LX, Si, VX |
| 1993 | Honda | Civic del Sol | S, Si |
| 1994 - 1997 | Honda | Civic del Sol | S, Si, VTEC |
