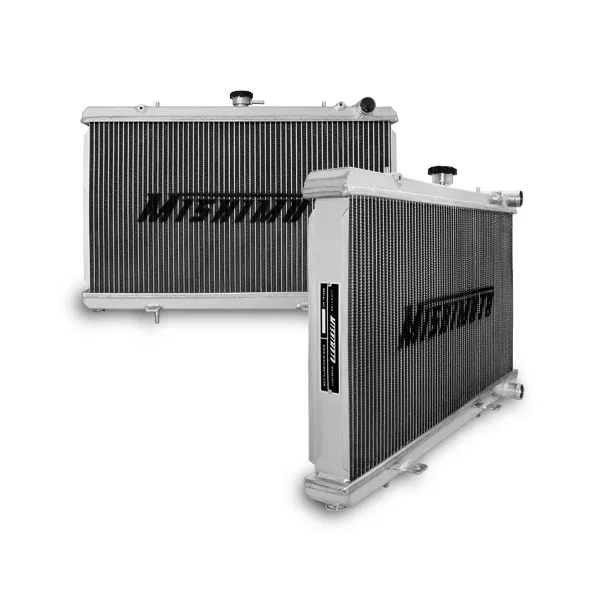

Mishimoto Performance Aluminum Radiator, fits Nissan 240SX KA Engine 1989-1994
Part # MMRAD-240-89KASKU MISMMRAD-240-89KA
Set your vehicle above for a fit verdict. 4 vehicles listed below.
| Brand | Mishimoto |
|---|---|
| Part type | Radiator |
| Position | Primary |
| Core Finish | Uncoated |
| Core Height | 13.13 in |
| Core Length | 25.12 in |
| Core Material | Aluminum |
| Core Row Quantity | 2 |
| Core Thickness | 1.97 in |
| Down Flow Or Cross Flow Type | Down Flow |
| Drain Plug Included | Yes |
| Drain Plug Thread Size | M12 - 1.5 |
| Fluid Capacity | 2 gal |
| Inlet Diameter | 1.25 in |
| Inlet Location | Top Right |
| Install Difficulty | 3 |
| Outlet Diameter | 1.25 in |
| Outlet Location | Bottom Right |
| Overall Height | 19.6 in |
| Overall Length | 26.3 in |
| Overall Width | 2.4 in |
| Radiator Cap Included | Yes |
| SellingPoint01 | Direct fit for the 1989-1994 Nissan 240SX W/ KA24 Engine |
| SellingPoint02 | Full aluminum construction featuring high-quality, durable TIG-welding |
| SellingPoint03 | Two-row, 1.97-in thick brazed aluminum core provides ideal fluid temperatures on and off the track |
| SellingPoint04 | Includes 1.3 Bar High-Pressure Radiator Cap, which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint05 | Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint06 | Mishimoto Lifetime Warranty |
| TechSpec Applications | 1991-1992 Nissan 240sx LE--1989-1994 Nissan 240sx SE |
| TechSpec Chassis Codes | S13 |
| TechSpec Core Height (in) | 13.13 |
| TechSpec Core Length (in) | 25.12 |
| UPC / GTIN | 00748354797343 |
| Warranty | Lifetime Warranty |
- Full aluminum construction featuring high-quality, durable TIG-welding
- Two-row, 1.97-in thick brazed aluminum core provides ideal fluid temperatures on and off the track
- Includes 1.3 Bar High-Pressure Radiator Cap, which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Description
The Mishimoto performance aluminum radiator for the Nissan 240SX is designed and engineered to maximize cooling efficiency by up to 30-percent, boost engine functions, and most importantly, protect your car from overheating whether you drive your vehicle daily or take it for track runs.The Mishimoto aluminum Nissan 240SX radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required, making this the ideal upgrade to the stock Nissan 240SX radiator.Check out the Mishimoto lightweight aluminum Nissan 240sx fan shroud for even more cooling efficiency.
More from Mishimoto
| R2703 | $357.99 |
| MMRAD-CK-47X | $639.99 |
| R2294-AT | $284.99 |
| MMRAD-ECL-95TX | $662.99 |
| MMRAD-CAM-82 | $595.99 |
| MMRAD-MUS-79 | $484.99 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1989 - 1990 | Nissan | 240SX | SE, XE |
| 1991 - 1992 | Nissan | 240SX | Base, LE, SE |
| 1993 | Nissan | 240SX | Base, SE |
| 1994 | Nissan | 240SX | SE |
