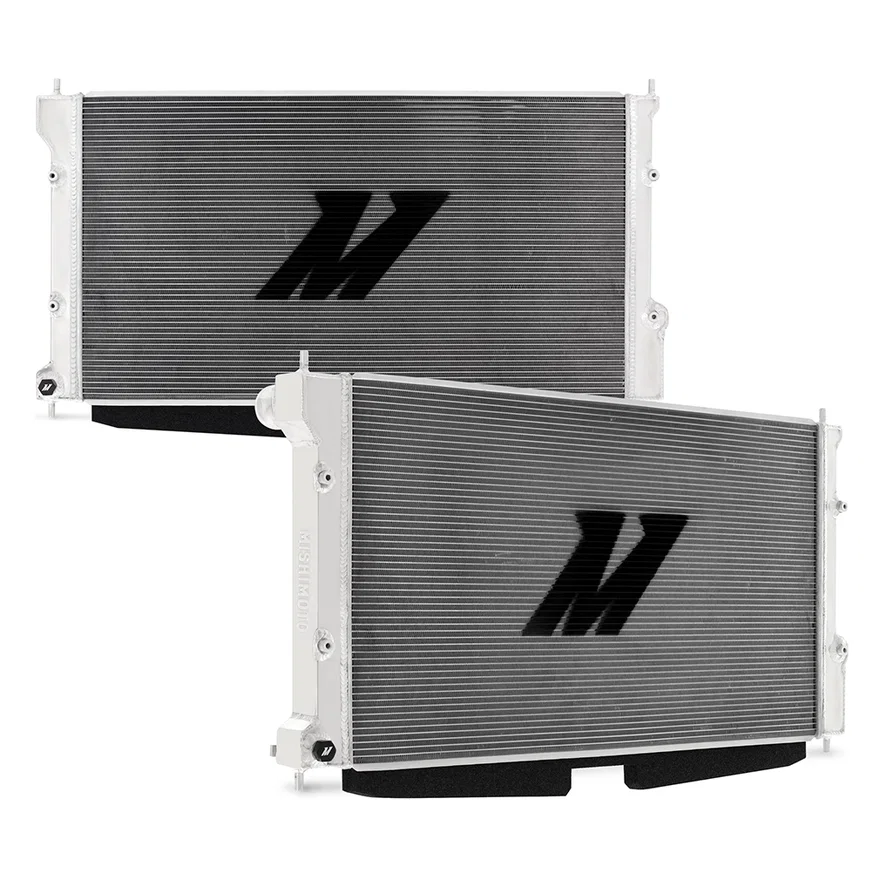

Mishimoto Performance Aluminum Radiator, fits Subaru BRZ/Toyota GR86 2022+

Part # MMRAD-BRZ-22SKU MISMMRAD-BRZ-22

Set your vehicle above for a fit verdict. 10 vehicles listed below.

Specifications
BrandMishimoto
Part typeRadiator
PositionPrimary
Core FinishUncoated
Core Height14.02 in
Core Length25.55 in
Core MaterialAluminum
Core Row Quantity2
Core Thickness1.42 in
Down Flow Or Cross Flow TypeCross Flow
Drain Plug IncludedYes
Drain Plug Thread SizeM12 - 1.5
Fluid Capacity0.54 gal
Inlet Diameter1.58 in
Inlet LocationTop Right
Install Difficulty3
Outlet Diameter1.58 in
Outlet LocationBottom Left
Overall Height15.98 in
Overall Length30.1 in
Overall Width4.43 in
Radiator Cap IncludedNo
SellingPoint01Direct fit for 2022+ Subaru BRZ and Toyota GR86
SellingPoint0234 percent increase in core volume lets you spend more time on the track without overheating
SellingPoint0351 percent increase in fin surface area improves heat transfer
SellingPoint0436mm-thick core with louvered fins makes the most of air moving through the grille
SellingPoint05Two-row core balances optimal flow and heat transfer
SellingPoint06Included foam shrouding directs air through the core for maximum cooling
SellingPoint07Precision TIG-welded end tanks resist vibration and impacts on the track or street
SellingPoint08Slotted drain plug makes maintenance mess-free
SellingPoint09Mishimoto Lifetime Warranty
TechSpec Applications2021+ Subaru BRZ H4 2.4L--2021+ Toyota GR86 H4 2.4L--2013-2020 Subaru BRZ H4 2.0L--2013-2016 Scion FR-S H4 2.0L--2017-2020 Toyota GT86 H4 2.0L
UPC / GTIN00840197718810
WarrantyLifetime Warranty
  • 34 percent increase in core volume lets you spend more time on the track without overheating
  • 51 percent increase in fin surface area improves heat transfer
  • 36mm-thick core with louvered fins makes the most of air moving through the grille

Description

Sliding sideways, banging off the limiter, and having fun are what the BRZ and GR86 were made for. But all that fun translates to a lot of heat, and keeping your FA24 engine cool with limited airflow through the BRZ's small grille is a monumental challenge. Luckily, Mishimoto has developed a performance aluminum radiator for the 2022+ Subaru BRZ and Toyota GR86 that's up to the task.----This all-aluminum performance radiator is a drop-in upgrade for your BRZ that will help keep coolant temps down when you're blasting the corners on the track or just having fun (within the speed limit) on your favorite back road. Our radiator features a 36mm-thick, 2-row core that balances optimal coolant flow with improved heat transfer capability. With a core volume 34 percent greater than stock, our radiator pulls more heat out of a larger volume of coolant than stock to keep your engine cool under even the most demanding conditions. Louvered fins provide a 51 percent increase in cooling sur face area over the stock radiator and help slow incoming air, while circulating it across the coolant tubes, improving heat transfer and making the most of every gram of air coming through the grille.----We've even thought of the little things with our 2022+ BRZ/GR86 radiator. The included foam shrouding helps direct air through the core, instead of around it, so none of it is wasted. Our slotted drain plug helps keep maintenance mess-free and your shop floor or driveway dry. And, like all Mishimoto radiators, this 2022+ Subaru BRZ and Toyota GR86 performance aluminum radiator is backed by our Mishimoto Lifetime Warranty for a lifetime of cooling and smiles around every corner.

Fits these vehicles 10

YearMakeModelSubmodelEngine
2022SubaruBRZBase, Limited, Premium, Sport-tech2.4L 146 H4
2023SubaruBRZBase, Limited, Limited EyeSight, Premium, Sport-tech2.4L 146 H4
2024SubaruBRZBase, Limited, Premium, Sport-tech2.4L 146 H4
2025SubaruBRZBase, Limited, Limited EyeSight, Premium, Sport-tech, TS, tS EyeSight2.4L 146 H4
2026SubaruBRZLimited, Series.Yellow, Sport-tech, TS2.4L 146 H4
2022ToyotaGR86Base, Premium2.4L 146 H4
2023ToyotaGR8610th Anniversary Special Edition, Base, Premium2.4L 146 H4
2024ToyotaGR86Base, Premium2.4L 146 H4
2025ToyotaGR86Base, Hakone Edition, Premium2.4L 146 H4
2026ToyotaGR86Base, Premium, Yuzu Edition2.4L 146 H4
