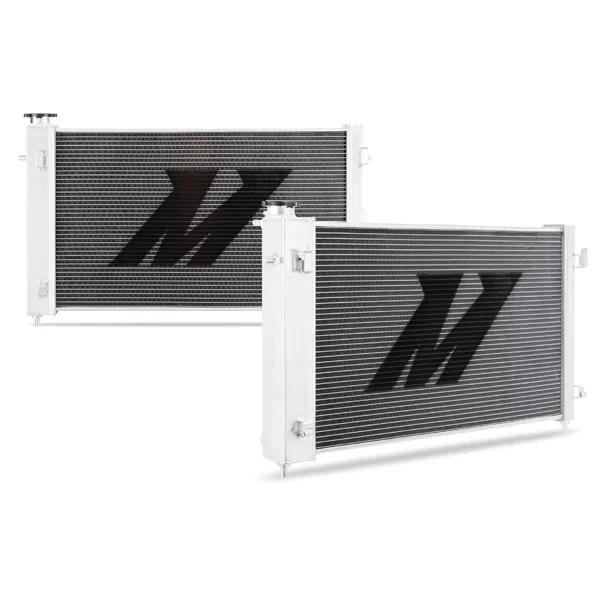

Mishimoto Performance Aluminum Radiator, fits Pontiac GTO 2005-2006

Part # MMRAD-GTO-05SKU MISMMRAD-GTO-05

Set your vehicle above for a fit verdict. 1 vehicle listed below.

Specifications
BrandMishimoto
Part typeRadiator
PositionPrimary
Core FinishUncoated
Core Height17 in
Core Length26.55 in
Core MaterialAluminum
Core Row Quantity2
Core Thickness1.96 in
Down Flow Or Cross Flow TypeCross Flow
Drain Plug IncludedYes
Drain Plug Thread SizeM12 - 1.5
Fluid Capacity3.58 gal
Inlet Diameter1.375 in
Inlet LocationLeft
Install Difficulty3
Outlet Diameter1.375 in
Outlet LocationBottom Right
Overall Height31.95 in
Overall Length19.65 in
Overall Width6.38 in
Radiator Cap IncludedYes
SellingPoint01Direct fit for the 2005-2006 Pontiac GTO
SellingPoint02Reduces coolant temperatures by 15 F (6 C)
SellingPoint03Large two-row brazed aluminum core increases fluid capacity by 0.64 L and provides ideal coolant temperatures on and off the track
SellingPoint04All-aluminum construction with TIG-welded end tanks provides optimal heat dissipation and reliability
SellingPoint05Applicable for both manual and automatic vehicles
SellingPoint06Includes magnetic drain plug and 1.3 bar high-pressure radiator cap
SellingPoint07Mishimoto Lifetime Warranty
TechSpec Applications2005-2006 Vauxhall Monaro (5.7L/6.0L)--2005-2006 Holden Monaro (6.0L Engine Only)
TechSpec Core Height (in)17
TechSpec Core Length (in)26.55
UPC / GTIN00748354010916
WarrantyLifetime Warranty
  • Reduces coolant temperatures by 15 F (6 C)
  • Large two-row brazed aluminum core increases fluid capacity by 0.64 L and provides ideal coolant temperatures on and off the track
  • All-aluminum construction with TIG-welded end tanks provides optimal heat dissipation and reliability

Description

Keep your Pontiac GTO on the road and out of the shop by upgrading to the Mishimoto Pontiac GTO Performance Aluminum Radiator. Stock plastic radiators are prone to significant wear from constant temperature variation. Our radiator is constructed from high-quality aluminum for optimal heat dissipation and superior reliability. This radiator features a large, efficient, and robust 2-row brazed aluminum core which provides optimal coolant temperatures on the street and track. The Mishimoto Pontiac GTO Performance Aluminum Radiator features an in-tank transmission fluid cooler compatible with stock transmission cooler lines, making this a true bolt-on performance radiator. This radiator includes a Mishimoto Magnetic Oil Drain Plug M12 x 1.5 which removes any metal fragments from your coolant system. For further cooling system protection this radiator includes the Mishimoto 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of your coolant, providing a safer and more efficient system. This radiator also features an increase in capacity of 0.64 L of fluid and provides a proven reduction in coolant temperatures of 15 degrees Fahrenheit. Whether you are making a pull down the highway or cruising through the mountains, the Mishimoto Pontiac GTO Performance Alumin um Radiator will keep your GTO cool. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

Fits these vehicles 1

YearMakeModelSubmodel
2005 - 2006PontiacGTOBase
