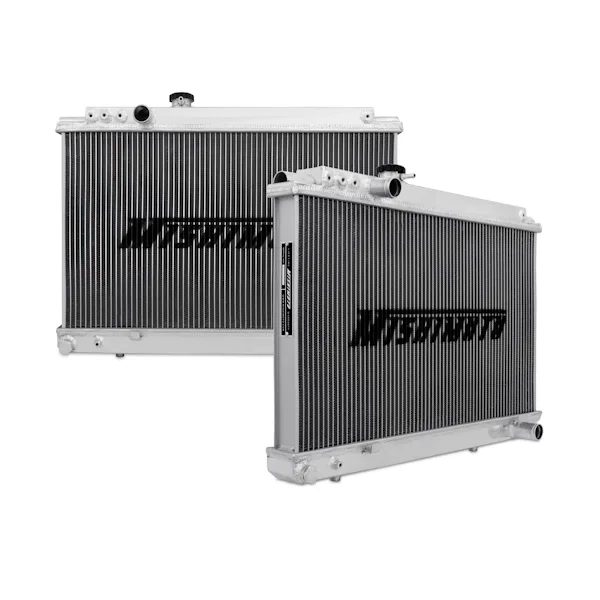

Mishimoto Performance Aluminum Radiator, fits Toyota Supra 1986-1992
Part # MMRAD-SUP-86SKU MISMMRAD-SUP-86
Set your vehicle above for a fit verdict. 2 vehicles listed below.
| Brand | Mishimoto |
|---|---|
| Part type | Radiator |
| Position | Primary |
| Core Finish | Uncoated |
| Core Height | 25.12 in |
| Core Length | 14.76 in |
| Core Material | Aluminum |
| Core Row Quantity | 2 |
| Core Thickness | 2.2 in |
| Down Flow Or Cross Flow Type | Down Flow |
| Drain Plug Included | Yes |
| Drain Plug Thread Size | M12 - 1.5 |
| Fluid Capacity | 2.45 gal |
| Inlet Diameter | 1.25 in |
| Inlet Location | Top Left |
| Install Difficulty | 3 |
| Outlet Diameter | 1.25 in |
| Outlet Location | Bottom Right |
| Overall Height | 26.5 in |
| Overall Length | 20.2 in |
| Overall Width | 2.7 in |
| Radiator Cap Included | Yes |
| SellingPoint01 | Direct fit for the 1986-1992 MKIII Toyota Supra 3.0L |
| SellingPoint02 | Applicable for both turbo and non-turbo models |
| SellingPoint03 | Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint04 | Features a two-row, 2.2-in thick, efficient brazed aluminum core |
| SellingPoint05 | Increased fluid capacity and optimal heat dissipation |
| SellingPoint06 | Provides efficient temperature reduction for use on the street or track |
| SellingPoint07 | Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint08 | Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance |
| SellingPoint09 | Mishimoto Lifetime Warranty |
| TechSpec Chassis Codes | MA70JZA70 |
| UPC / GTIN | 00748354797602 |
| Warranty | Lifetime Warranty |
- Applicable for both turbo and non-turbo models
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 2.2-in thick, efficient brazed aluminum core
Description
A Mishimoto performance aluminum radiator is the ideal upgrade to the stock Toyota Supra radiator.Designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly protect your car from overheating.It will undoubtedly extend the lifetime and performance of your Supra engine whether you drive your vehicle daily or take it for track runs.The Mishimoto aluminum Toyota Supra radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection.
More from Mishimoto
| R2703 | $357.99 |
| MMRAD-CK-47X | $639.99 |
| R2294-AT | $284.99 |
| MMRAD-ECL-95TX | $662.99 |
| MMRAD-CAM-82 | $595.99 |
| MMRAD-MUS-79 | $484.99 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1986 | Toyota | Supra | Base |
| 1987 - 1992 | Toyota | Supra | Base, Turbo |
