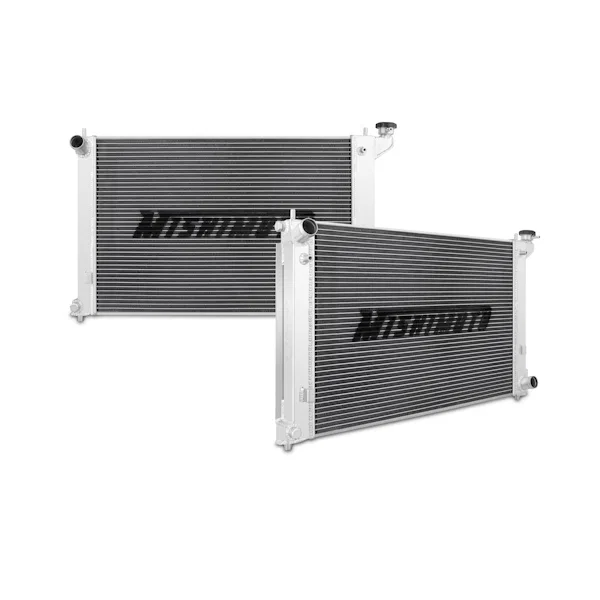

Mishimoto Performance Aluminum Radiator, fits Scion tC 2005-2010
Part # MMRAD-TC-05SKU MISMMRAD-TC-05
Set your vehicle above for a fit verdict. 3 vehicles listed below.
| Brand | Mishimoto |
|---|---|
| Part type | Radiator |
| Position | Primary |
| Core Finish | Uncoated |
| Core Height | 16.06 in |
| Core Length | 23.62 in |
| Core Material | Aluminum |
| Core Row Quantity | 2 |
| Core Thickness | 1.57 in |
| Down Flow Or Cross Flow Type | Cross Flow |
| Drain Plug Included | Yes |
| Drain Plug Thread Size | M12 - 1.5 |
| Fluid Capacity | 2.03 gal |
| Inlet Diameter | 1.34 in |
| Inlet Location | Top Left |
| Install Difficulty | 3 |
| Outlet Diameter | 1.34 in |
| Outlet Location | Bottom Right |
| Overall Height | 30.5 in |
| Overall Length | 18.2 in |
| Overall Width | 2.07 in |
| Radiator Cap Included | Yes |
| SellingPoint01 | Direct fit for the 2005-2010 Scion tC 2.4L |
| SellingPoint02 | Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint03 | Features a two-row, 1.57-in thick, efficient brazed aluminum core |
| SellingPoint04 | Increased fluid capacity and optimal heat dissipation |
| SellingPoint05 | Provides efficient temperature reduction for use on the street or track |
| SellingPoint06 | Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint07 | Engineered for use with both stock and highly modified vehicles |
| SellingPoint08 | Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint09 | Mishimoto Lifetime Warranty |
| TechSpec Applications | 2007-2008 Scion tC SPEC |
| UPC / GTIN | 00748354797626 |
| Warranty | Lifetime Warranty |
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.57-in thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
Description
The Mishimoto Performance Aluminum Radiator for the Scion tC has been designed and engineered to maximize cooling efficiency by up to 30-percent and protect your car from overheating.Mishimoto now offers the first performance radiator available for the 2005-2010 Scion tC featuring a lightweight dual core, 100-percent brazed aluminum, and polished end tanks.Every Mishimoto performance radiator is designed for a direct OEM fit making installation effortless with no cutting or modification required.This is the perfect upgrade to your stock Scion tC radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection! For even more cooling efficiency check out the Mishimoto'scion tC hose kit.
More from Mishimoto
| R2703 | $357.99 |
| MMRAD-CK-47X | $639.99 |
| R2294-AT | $284.99 |
| MMRAD-ECL-95TX | $662.99 |
| MMRAD-CAM-82 | $595.99 |
| MMRAD-MUS-79 | $484.99 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005 - 2006 | Scion | tC | Base |
| 2007 - 2008 | Scion | tC | Base, Spec |
| 2009 - 2011 | Scion | tC | Base |
