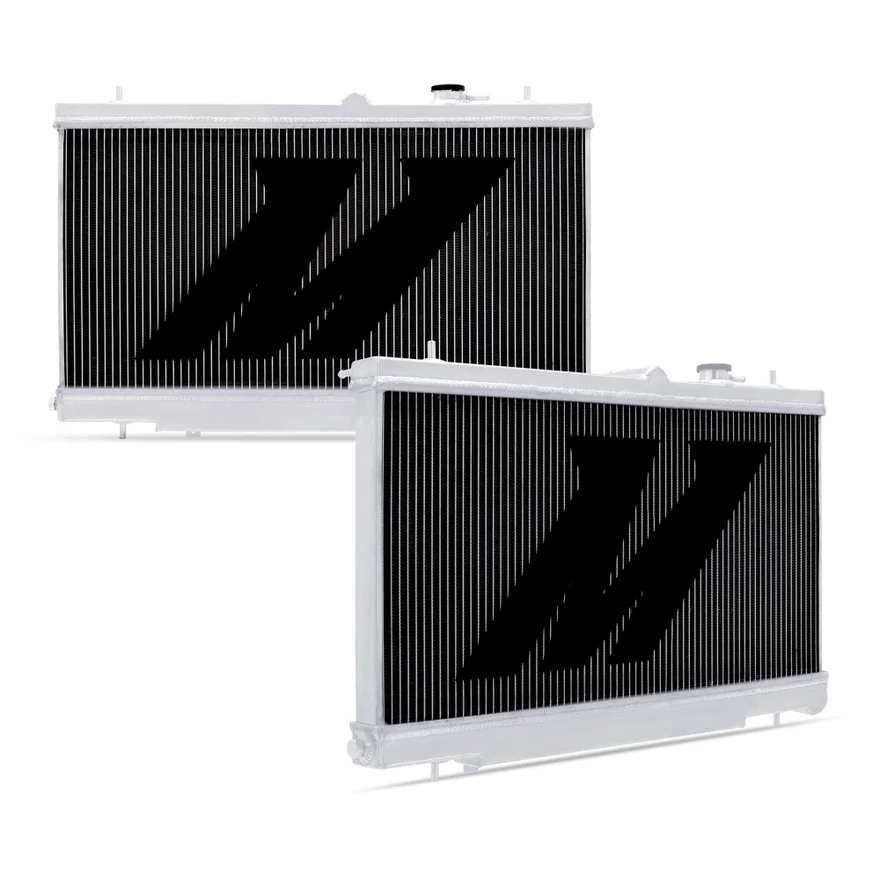

Mishimoto Performance Aluminum Radiator, fits Subaru WRX/STI 2001-2007

Part # MMRAD-WRX-01SKU MISMMRAD-WRX-01

Set your vehicle above for a fit verdict. 5 vehicles listed below.

Specifications
BrandMishimoto
Part typeRadiator
PositionPrimary
Core FinishUncoated
Core Height13.54 in
Core Length27.24 in
Core MaterialAluminum
Core Row Quantity2
Core Thickness1.65 in
Down Flow Or Cross Flow TypeDown Flow
Drain Plug IncludedYes
Drain Plug Thread SizeM12 - 1.5
Fluid Capacity2.3 gal
Inlet Diameter1.5 in
Inlet LocationTop Left
Install Difficulty3
Outlet Diameter1.5 in
Outlet LocationBottom Left
Overall Height17.2 in
Overall Length28.4 in
Overall Width2.15 in
Radiator Cap IncludedYes
SellingPoint01Full aluminum construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
SellingPoint02Manufactured with robust TIG-welded end tanks for improved strength and extended longevity
SellingPoint03100% brazed aluminum core for maximum reliability
SellingPoint04Increased coolant capacity directly results in improved cooling efficiency
SellingPoint05Now includes two 1.3 bar high-pressure caps, raising the boiling point of engine coolant to provide a safer, more efficient system
SellingPoint06Two-way expansion tank cap and one-way radiator cap ensure proper flow and function of cooling system to avoid overheating
SellingPoint07Designed to original equipment specifications for the 2001-2007 WRX and STI
SellingPoint08Includes magnetic drain plug to prevent metal fragments and debris from circulating in coolant system
SellingPoint09Mishimoto Lifetime Warranty
TechSpec ApplicationsSaab 9-2X H4 (2.0L) 2005--Saab 9-2X H4 (2.5L) 2006--Subaru WRX H4 (2.0) 2002-2005--Subaru WRX H4 (2.5) 2006-2007--Subaru WRX STI H4 (2.5) 2004-2007
UPC / GTIN00748354797633
WarrantyLifetime Warranty
  • Full aluminum construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
  • Manufactured with robust TIG-welded end tanks for improved strength and extended longevity
  • 100% brazed aluminum core for maximum reliability

Description

Whether you daily drive a stock STI or rallycross a modified WRX, an efficient cooling system is key to extending the life of your flat-four. The plastic end tanks of the stock radiator are especially prone to cracking from years of constant variation in temperature. A radiator failure can result in overheating, head gasket failure, and other engine damage that can quickly put an end to a fun day at the track. Protect your investment with the Mishimoto Performance Radiator, engineered specifically for the 2001-2007 Subaru WRX and STI. After identifying the radiator in these vehicles as a weak point, our engineers set out to provide an efficient, durable radiator that can take the abuse of competitive driving and provide the reliability you need for daily commuting. -- The Mishimoto Subaru radiator features all-aluminum construction, which provides increased heat and pressure tolerance, improved heat dissipation, and improved cooling efficiency. The 100% brazed aluminum core and TIG-welded end tanks provide optimal durability and years of efficient and reliable service. This radiator is a complete bolt-in unit that replaces the factory radiator without requiring any modification to your Subaru. The Mishimoto Subaru Performance Aluminum Radiator includes a high-pressure 1.3 bar radiator cap. This cap effectively raises the boiling point of the coolant, thus providing a higher threshold for safe temperatures and resulting in a more efficient cooling system. Additionally, a second radiator cap is included for use on the expansion tank. This radiator provides a significant increase in coolant capacity, which allows for aggressive driving while retaining safe coolant temperatures. Keep your Subaru on the street and out of the shop with the Mishimoto Subaru WRX and STI Performance Aluminum Radiator. As with all our products, this radiator includes the Mishimoto Lifetime Warranty.

Fits these vehicles 5

YearMakeModelSubmodel
2005 - 2006Saab9-2XAero
2002 - 2003SubaruImprezaWRX
2004 - 2005SubaruImprezaWRX, WRX STI
2006SubaruImprezaWRX, WRX Limited, WRX STI, WRX TR
2007SubaruImprezaWRX, WRX Limited, WRX STI, WRX STI Limited, WRX TR
