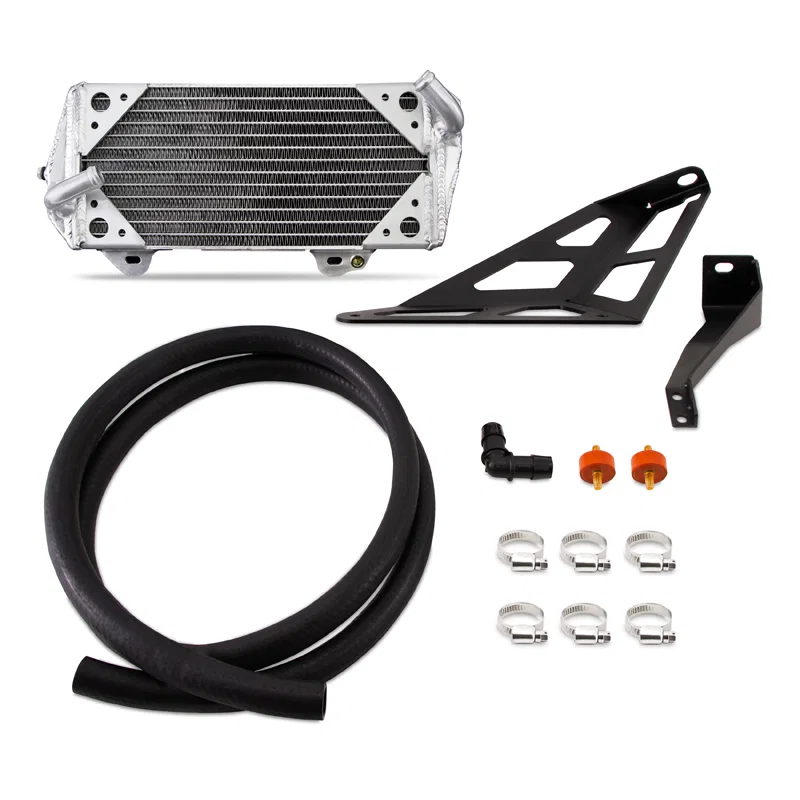

Mishimoto Secondary Race Radiator, fits Honda Civic Type R 2017-2021

Part # MMRAD-CTR-17SSKU MISMMRAD-CTR-17S

Set your vehicle above for a fit verdict. 2 vehicles listed below.

Specifications
BrandMishimoto
Part typeRadiator
PositionPrimary
Core FinishUncoated
Core Height5.04 in
Core Length11.03 in
Core MaterialAluminum
Core Row Quantity1
Core Thickness0 in
Down Flow Or Cross Flow TypeCross Flow
Drain Plug IncludedYes
Drain Plug Thread SizeM12 - 1.5
Fluid Capacity0.17 gal
Inlet Diameter0.63 in
Inlet LocationTop Left
Install Difficulty3
Outlet Diameter0.63 in
Outlet LocationBottom Left
Overall Height0 in
Overall Length0 in
Overall Width0 in
Radiator Cap IncludedNo
SellingPoint01Direct fit for the 2017-2021 Honda Civic Type R
SellingPoint02Incorporates additional radiator into factory cooling system for increased engine cooling
SellingPoint03Utilizes factory aerodynamics for airflow to unique mounting location
SellingPoint04Full aluminum construction with durable, TIG-welded end tanks
SellingPoint05Robust mounting bracket design for worry-free installation
SellingPoint06Increases coolant capacity
SellingPoint07Mishimoto Lifetime Warranty
TechSpec Applications2017+ Honda Civic Type R
TechSpec Chassis CodesFK8
TechSpec Core Height (in)5.04
UPC / GTIN00811580035159
WarrantyLifetime Warranty
  • Incorporates additional radiator into factory cooling system for increased engine cooling
  • Utilizes factory aerodynamics for airflow to unique mounting location
  • Full aluminum construction with durable, TIG-welded end tanks

Description

It's no secret now that while the 2017-2021 Civic Type R is designed to attack the track, it can?t always stand up to the heat. Nothing is quite as frustrating as having to cut your track time short, or pull off to the shoulder on a canyon carve due to simmering coolant. Luckily, Mishimoto is here to give the FK8's cooling system the backup it needs with our 2017-2021 Honda Civic Type R Secondary Race Radiator kit. Employing the use of one of our smaller, but efficient, radiator designs, we mounted an additional heat exchanger behind the K20C1 with robust steel brackets, tapping in after the Civic?s heater core. Utilizing the air flow generated through the engine bay the Secondary Race Radiator generates additional cooling power for the already overworked stock radiator, keeping you on the track longer. In addition to the supplementary cooling power, the 2017-2021 Honda Civic Type R Secondary Race Radiator also increases the overall coolant capacity. The Mishimoto Lifetime Warranty is also included with the radiator kit to keep your CTR cool and you worry free.

Fits these vehicles 2

YearMakeModelSubmodelEngine
2017 - 2020HondaCivicType R2.0L 122 I4
2021HondaCivicType R, Type R Limited Edition2.0L 122 I4
