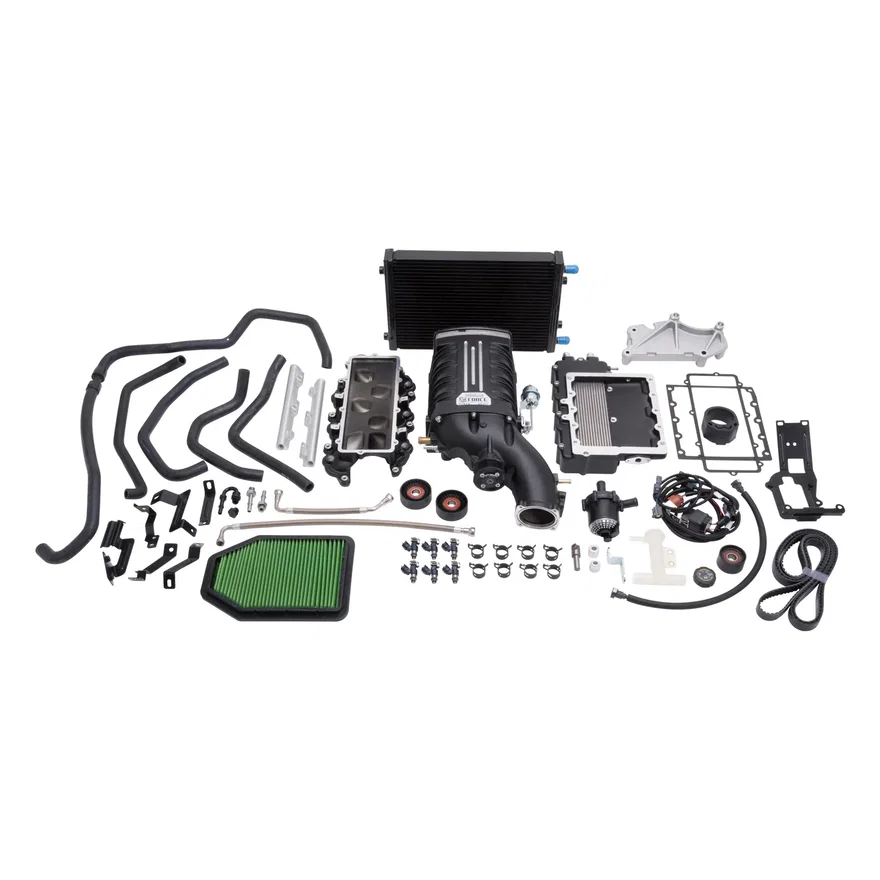

Edelbrock Stage 1 Supercharger #1528 For 2015-18 Jeep Wrangler JK 3.6L W/ Tune

Part # 1528SKU EDE1528

Set your vehicle above for a fit verdict. 1 vehicle listed below.

Specifications
BrandEdelbrock
Part typeSupercharger Kit
Air Filter IncludedYes
CalibrationYes
Center Housing Cooling TypeIntercooler
FinishBlack Powder Coated
Fuel Injector Type42
Gasket Or Seal IncludedYes
Harmonic Balancer Diameter6.1 in
Hose IncludedYes
Housing MaterialCast Aluminum
Internal Step UpYes
Maximum Boost Pressure8 PSI
Maximum Horsepower317RW (Manual Trans)/285RW (Auto Trans); With Stock Tires
Maximum Pressure Reading8 PSI
Maximum Torque277RW (Manual Trans)/235RW (Auto Trans); With Stock Tires
Mounting Bracket IncludedYes
Mounting Hardware IncludedYes
Oil Capacity125 mL
Outside Pulley Diameter2.625 in
Pulley Belt Width6-Rib
QuantityKit
Rotor TypeEaton TVS 1320
System TypeStage 1 - Street System
Universal Or Specific FitSpecific
Vehicle ModelWrangler
UPC / GTIN00085347015283

Description

The Edelbrock Supercharger System #1528 for your 2015-18 Wrangler delivers 317 RWHP and 277 RWTQ for a manual and 303 RWHP and 262 RWTQ for an automatic. This Supercharger is exclusively for the Pentastar 3.6L V6 Engine featuring a unique design with minimal components make it possible to fit under the stock hood. The core of each system is the Eaton Gen VI 1320 TVS rotating assembly with a four-lobe design and 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path that for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. Part #1528 will require the ECM and TCM to be sent into Edelbrock for modification, no handheld programmer is included with these systems. This is an 8-10 day process/waiting period from the time they are received.

Fits these vehicles 1

YearMakeModelEngine
2015 - 2017JeepWrangler3.6L 220 V6
