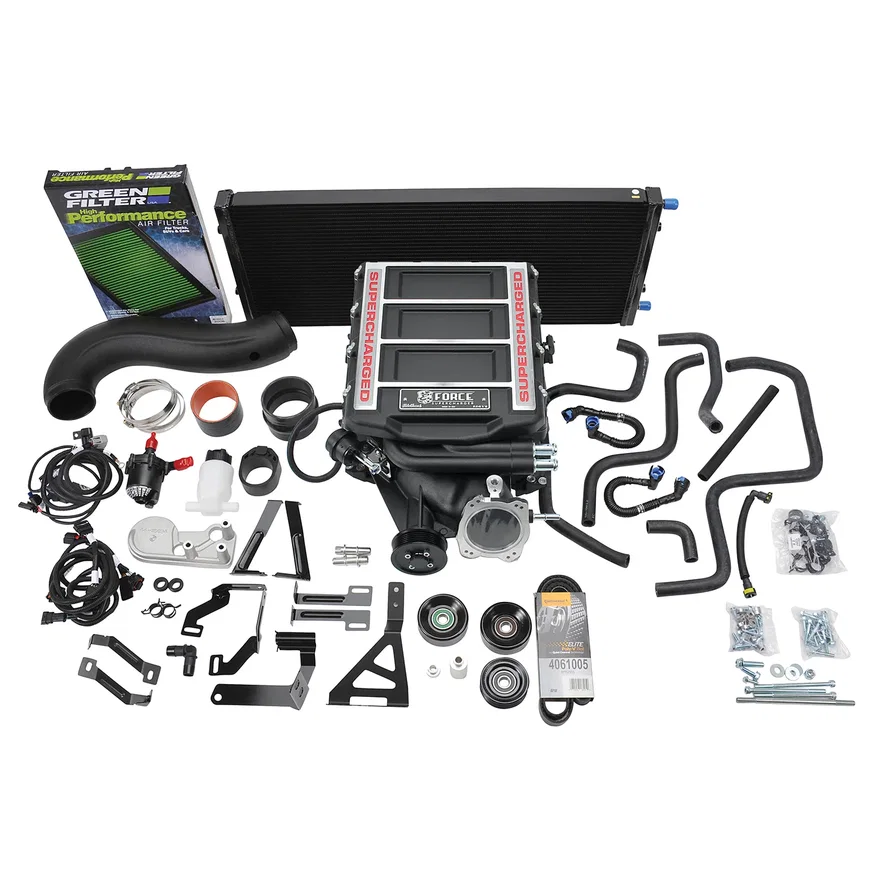

Edelbrock Supercharger #156630 14-20 GM SUV & 14-19 Truck Gen V 5.3L W/O Tune

Part # 156630SKU EDE156630

Set your vehicle above for a fit verdict. 6 vehicles listed below.

Specifications
BrandEdelbrock
Part typeSupercharger Kit
Air Filter IncludedYes
CalibrationNo
Center Housing Cooling TypeIntercooler
FinishBlack Powder Coated
Gasket Or Seal IncludedYes
Harmonic Balancer DiameterStock
Hose IncludedYes
Housing MaterialCast Aluminum
Internal Step UpYes
Mounting Bracket IncludedYes
Mounting Hardware IncludedYes
Oil Capacity150 mL
Outside Pulley Diameter3.875 in
Pulley Belt Width6-Rib
QuantityKit
Rotor TypeEaton TVS 2650
System TypeStage 1 - Street System
Universal Or Specific FitSpecific
Vehicle ModelSilverado 1500
UPC / GTIN00085347999620

Description

Joining Edelbrock's expanding line of supercharger systems are the Chevrolet & GMC 2015-2020 SUVs, 2014-2018 full size trucks, & 2019 Silverado LD & Sierra LDT (air box on right side) equipped with a Gen V 5.3L L83 engine (not a L8B hybrid). This is a true bolt-on performance kit that is emissions legal in all 50 states and produces an impressive 482 horsepower with 452 ft-lbs of torque at the rear wheel on 93-octane pump gas! Edelbrock supercharger Kit #156630 for Silverado, Sierra, Suburban, Tahoe and Yukon models equipped with a Gen V 5.3L V8 engine is a complete redesign of the previous kit featuring a manifold that now houses Eaton's R2650 TVS rotor assembly along with a high-capacity Dual Pass 3-core intercooler system. The new rotors have a 170-degree high-twist lobe design with bigger bearings and beefier timing gears for unparalleled efficiency and OEM-like reliability. Like other superchargers in the Edelbrock line, this system is designed to fit under the stock hood with no cutting or modifications required. A self-contained oiling system keeps maintenance to a minimum with a service interval of 100,000 miles. The significant increase in horsepower and torque comes with minimal loss in fuel economy thanks to the system's integrated bypass valve that mitigates parasitic power loss during normal driving conditions. This new Edelbrock supercharger kit requires no internal modifications to the engine. For higher power demands, the R2650 supercharger can support 1,000-plus horsepower at the flywheel with the right combination of parts. This kit includes everything required for a complete installation including a set of preformed h oses to simplify the process. A full-color manual provides clear step-by-step instructions for the installer. Comes finished in a durable black powder-coating that blends nicely into the engine compartment. All Edelbrock Supercharger Systems are designed and manufactured in the USA and are covered by a 3-year/36,000-mile warranty.

Fits these vehicles 6

YearMakeModelEngine
2017ChevroletSilverado 15005.3L 325 V8
2017ChevroletSuburban5.3L 325 V8
2017ChevroletTahoe5.3L 325 V8
2017GMCSierra 15005.3L 325 V8
2017GMCYukon5.3L 325 V8
2017GMCYukon XL5.3L 325 V8
