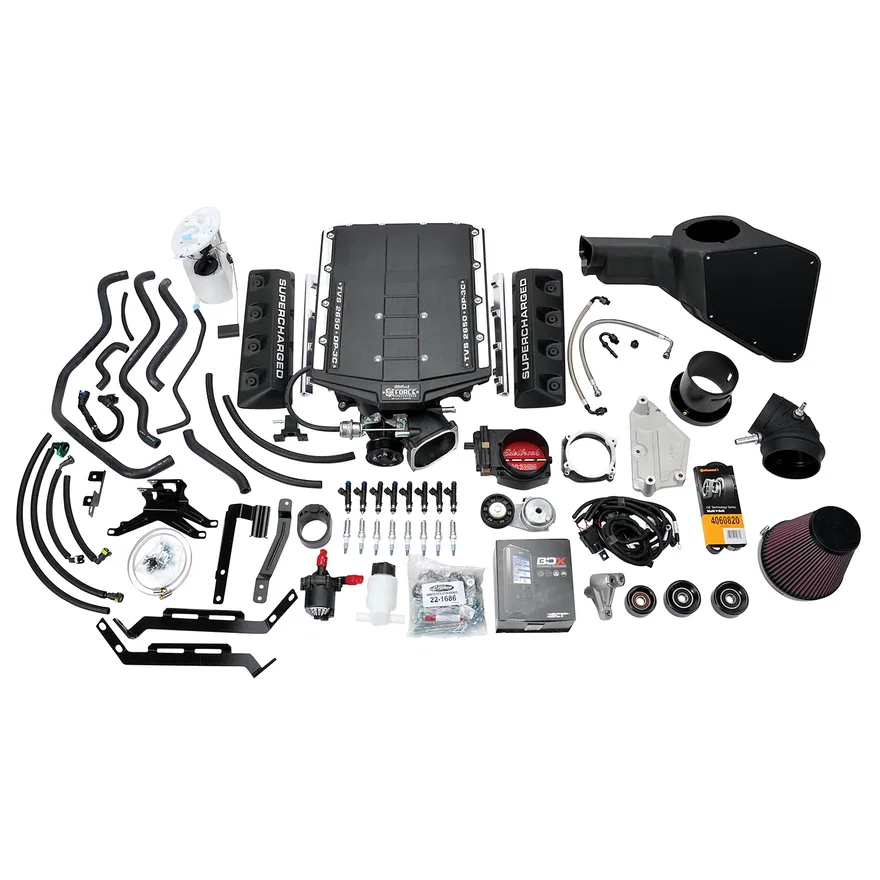

Edelbrock Supercharger Kit #15839 for 2015-17 Ford Mustang Modular Nose 5.0L V8, Stage 2

Part # 15839SKU EDE15839

Set your vehicle above for a fit verdict. 2 vehicles listed below.

Specifications
BrandEdelbrock
Part typeSupercharger Kit
Air Filter IncludedYes
CalibrationYes
Center Housing Cooling TypeIntercooler
FinishBlack Powder Coated
Fuel Injector Type78
Fuel Pump IncludedYes
Gasket Or Seal IncludedYes
Harmonic Balancer Diameter6.67 in
Hose IncludedYes
Housing MaterialCast Aluminum
Internal Step UpYes
Maximum Boost Pressure15.5 PSI
Maximum Horsepower610RW
Maximum Pressure Reading15.5 PSI
Maximum Torque499RW
Mounting Bracket IncludedYes
Mounting Hardware IncludedYes
Oil Capacity150 mL
Outside Pulley Diameter3.25 in
Pulley Belt Width6-Rib
QuantityKit
Rotor TypeEaton TVS 2650
Spark Plugs IncludedYes
System TypeStage 2 - Street/Strip System
Universal Or Specific FitSpecific
Vehicle ModelMustang
UPC / GTIN00085347158393

Description

Take your 2015-17 Mustang to the next level with the Edelbrock Stage 2 Supercharger System #15839 for the Gen 2 Ford 5.0L Coyote engine. This potent new kit adds huge gains in horsepower and torque over Stage 1 performance, all while maintaining emissions-legal status in all 50 states. At the heart of this system is the top-of-the-line R2650 TVS rotor assembly housed with an integrated high-capacity DP3C (dual-pass, three-core) air-to-water intercooler that lowers incoming air temperatures and increases power potential. To support the additional Stage 2 power increase, the fuel system components are upgraded to include larger 78 lb/hr direct-port injectors along with a drop-in 400 LPH fuel pump assembly with internal check valve. A dramatic increase in airflow over the Stage 1 kit comes from a new 103mm billet aluminum throttle body and high-flow air intake system with 113mm MAF housing. Like our Stage 1 kit for the Mustang, the Stage 2 System installs cleanly with no modifications to the hood or body and comes complete with all hardware, hoses and a handy full-color step-by-step instruction manual to streamline the installation process. This kit is backed by Edelbrock's industry-leading 3-Year/36,000-mile Powertrain Warranty.

Fits these vehicles 2

YearMakeModel
1964 - 1973FordMustang
1979 - 2020FordMustang
