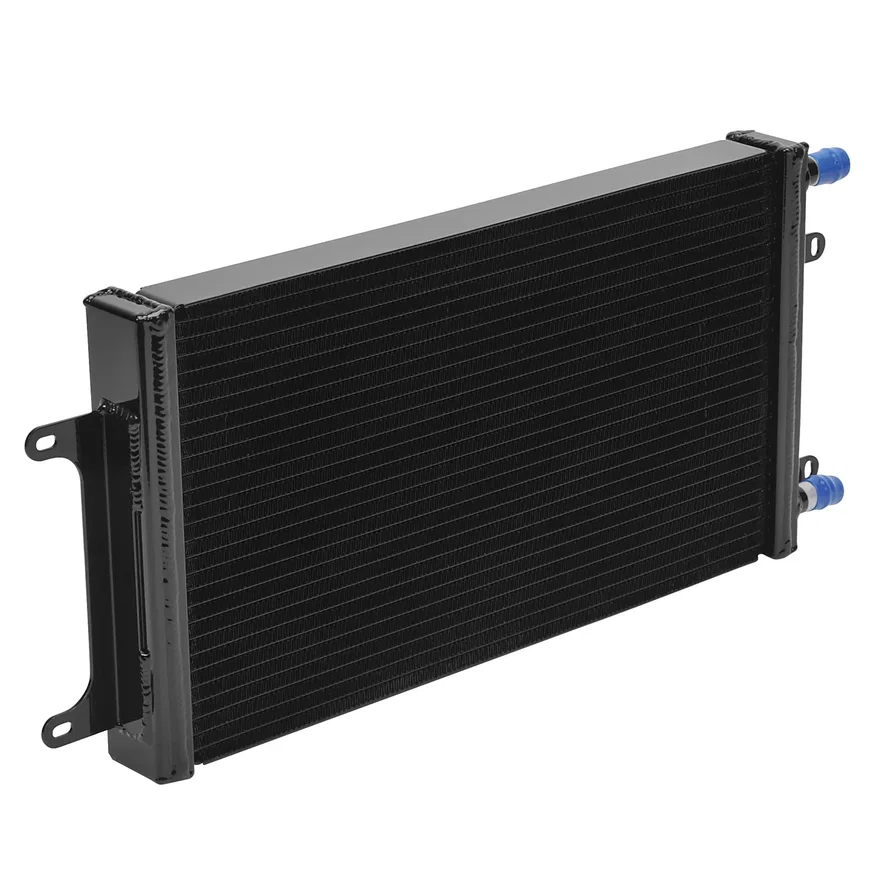

Edelbrock Dual Pass/Single Row Universal Heat Exchanger (20"W/10.75"H/2.12"D) 27,360 BTU
Part # 15568SKU EDE15568
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Supercharger Heat Exchanger |
| BTU Rating | 27360 btu/hr |
| Construction | Dual Pass |
| Finish | Natural |
| Grade Type | Performance |
| Inlet Port Outside Diameter | 0.75 in |
| Inlet Port Quantity | 1 |
| Length | 20 in |
| Material | Aluminum |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 4 |
| Outlet Port Outside Diameter | 0.75 in |
| Outlet Port Quantity | 1 |
| Quantity | Sold Individually |
| Row Quantity | Single |
| Thickness | 2.12 in |
| Width | 10.75 in |
| UPC / GTIN | 00085347155682 |
Description
Edelbrock heat exchanger part #15568 is a dual pass/single row design and delivers 27,360 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting and includes brackets. Heat exchanger part #is a Dual Pass/Single Row Universal Heat Exchanger with the following dimensions (20in. W x 10.75in. H x 2.12in. D). Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications.
