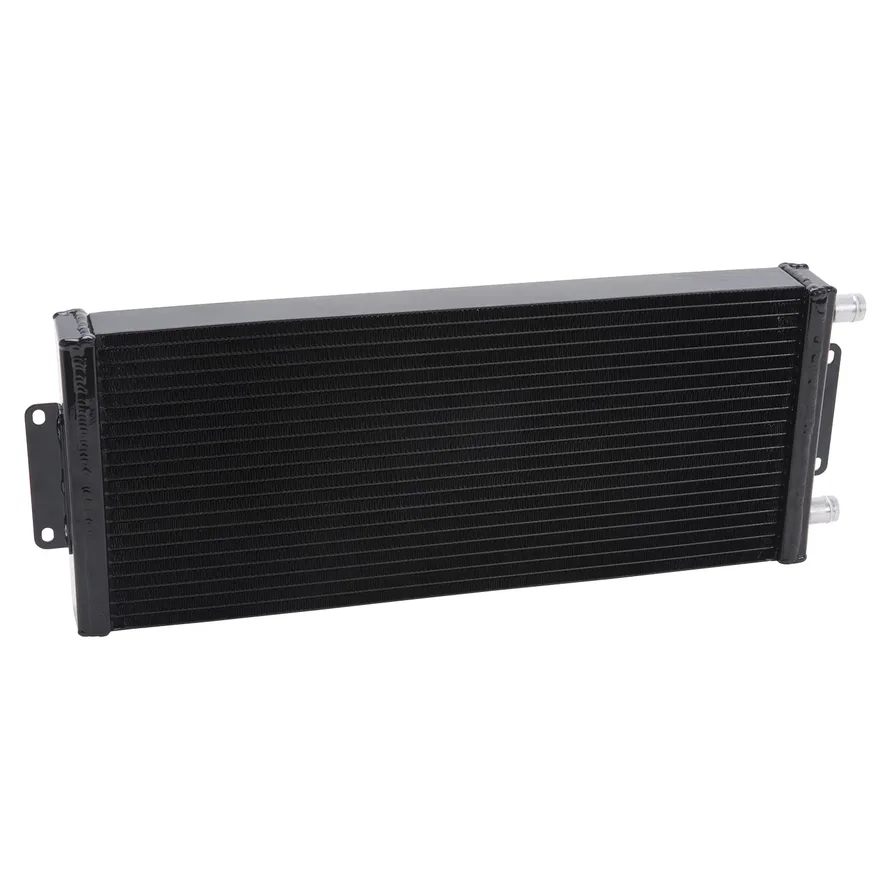

Edelbrock Dual Pass/Single Row Universal Heat Exchanger (20"W/8"H/2"D) 20,500 BTU
Part # 15549SKU EDE15549
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Supercharger Heat Exchanger |
| BTU Rating | 20500 btu/hr |
| Construction | Dual Pass |
| Finish | Black Powder Coated |
| Grade Type | Performance |
| Inlet Port Outside Diameter | 0.75 in |
| Inlet Port Quantity | 1 |
| Length | 20 in |
| Material | Aluminum |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 4 |
| Outlet Port Outside Diameter | 0.75 in |
| Outlet Port Quantity | 1 |
| Quantity | Sold Individually |
| Row Quantity | Single |
| Thickness | 2 in |
| Width | 8 in |
| UPC / GTIN | 00085347155491 |
Description
Edelbrock heat exchanger part #15549 is a dual pass/single row design and delivers 20,500 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting and includes brackets. Heat exchanger part #is a Dual Pass/Single Row Universal Heat Exchanger with the following dimensions (20in. W x 8in. H x 2in. D). Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications.
