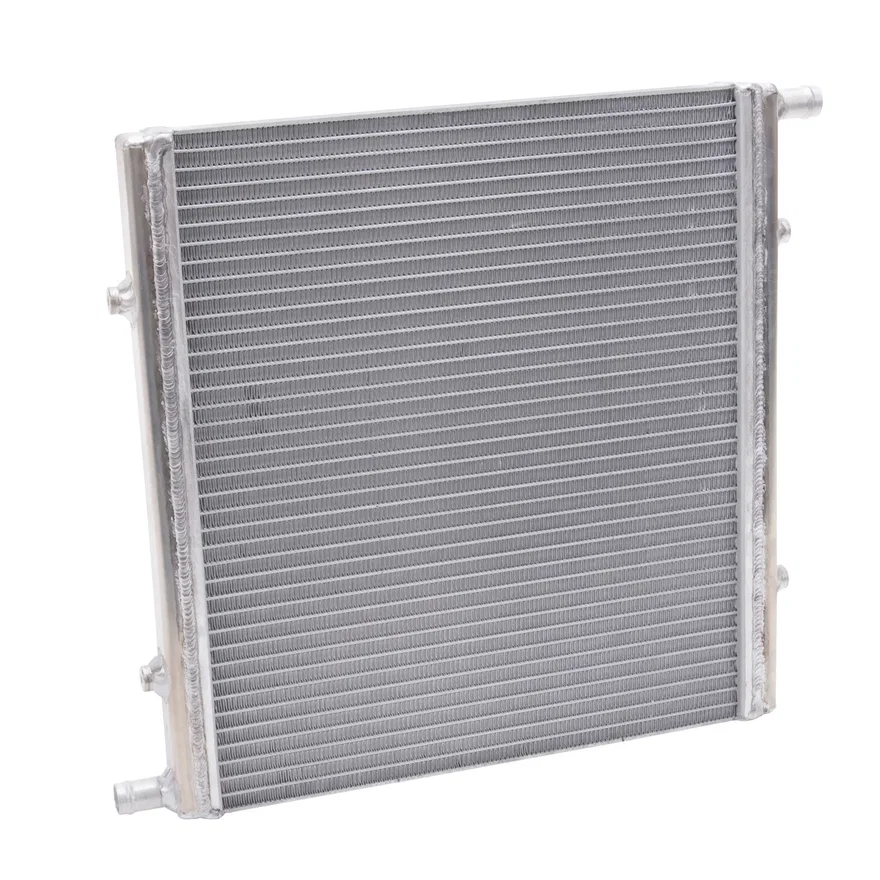

Edelbrock Single Pass/Single Row Universal Heat Exchanger (16"W/16"H/1.5"D) 22,000 BTU
Part # 15407SKU EDE15407
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Supercharger Heat Exchanger |
| BTU Rating | 22000 btu/hr |
| Construction | Single Pass |
| Finish | Natural |
| Grade Type | Performance |
| Inlet Port Outside Diameter | 0.75 in |
| Inlet Port Quantity | 1 |
| Length | 15.71 in |
| Material | Aluminum |
| Mounting Hardware Included | No |
| Mounting Hole Diameter | M6 x 1.0 |
| Mounting Hole Quantity | 6 |
| Outlet Port Outside Diameter | 0.75 in |
| Outlet Port Quantity | 1 |
| Quantity | Sold Individually |
| Row Quantity | Single |
| Thickness | 1.03 in |
| Width | 16.41 in |
| UPC / GTIN | 00085347154074 |
Description
Edelbrock heat exchanger part #15407 is a single pass/single row design and delivers 22,000 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting. Heat exchanger part #15407 is a Single Pass/Single Row Universal Heat Exchanger with the following dimensions (16in. W x 16in. H x 1.5in. D) with 6 threaded bungs. Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications.
