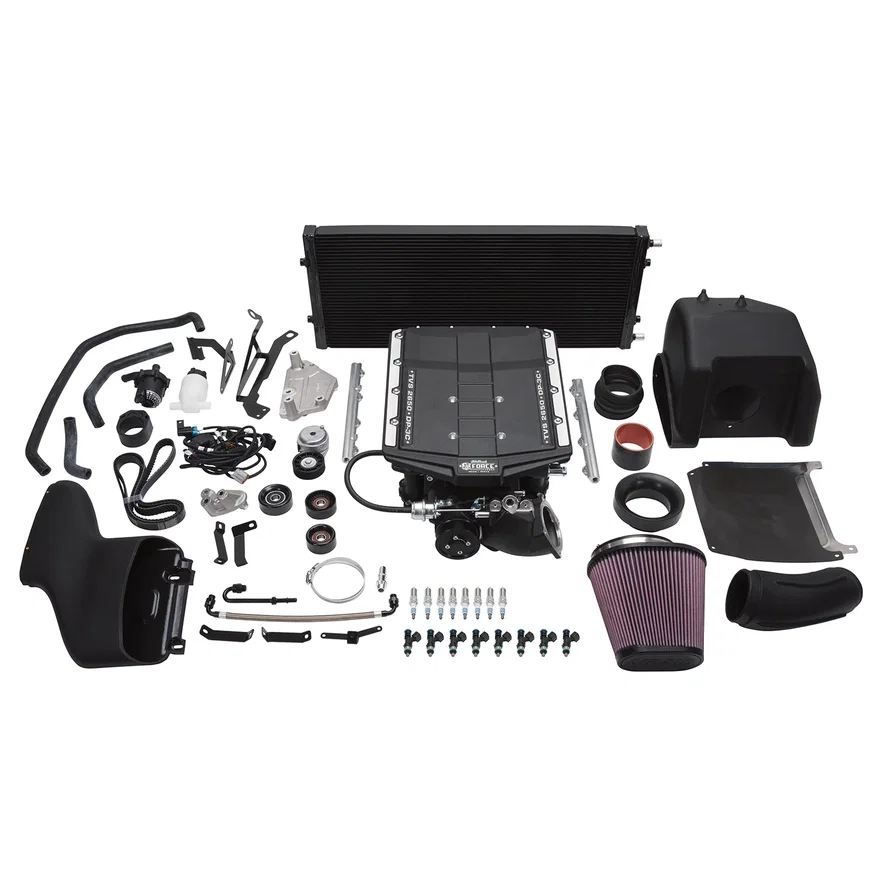

Edelbrock E-force 2650 TVS Supercharger for 2015-17 Ford F-150 5.0L - No Tune

Part # 15570SKU EDE15570

Set your vehicle above for a fit verdict. 1 vehicle listed below.

Specifications
BrandEdelbrock
Part typeSupercharger Kit
CalibrationNo
Center Housing Cooling TypeIntercooler
FinishBlack Powder Coated
Fuel Injector Type50
Gasket Or Seal IncludedYes
Harmonic Balancer DiameterStock
Hose IncludedYes
Housing MaterialCast Aluminum
Internal Step UpYes
Mounting Bracket IncludedYes
Mounting Hardware IncludedYes
Oil Capacity150 mL
Outside Pulley Diameter3.5 in
Pulley Belt Width6-Rib
QuantityKit
Rotor TypeEaton TVS 2650
System TypeStage 1 - Street System
Universal Or Specific FitSpecific
Vehicle ModelF-150
UPC / GTIN00085347155705

Description

The Edelbrock supercharger Stage 1 Street System part #15570 for 2015-17 Ford F-150 increases the performance of your 5.0L 4V engine to 533 horsepower and 482 ft-lbs of torque at the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

Fits these vehicles 1

YearMakeModelEngine
2015 - 2017FordF-1505.0L 302 V8
