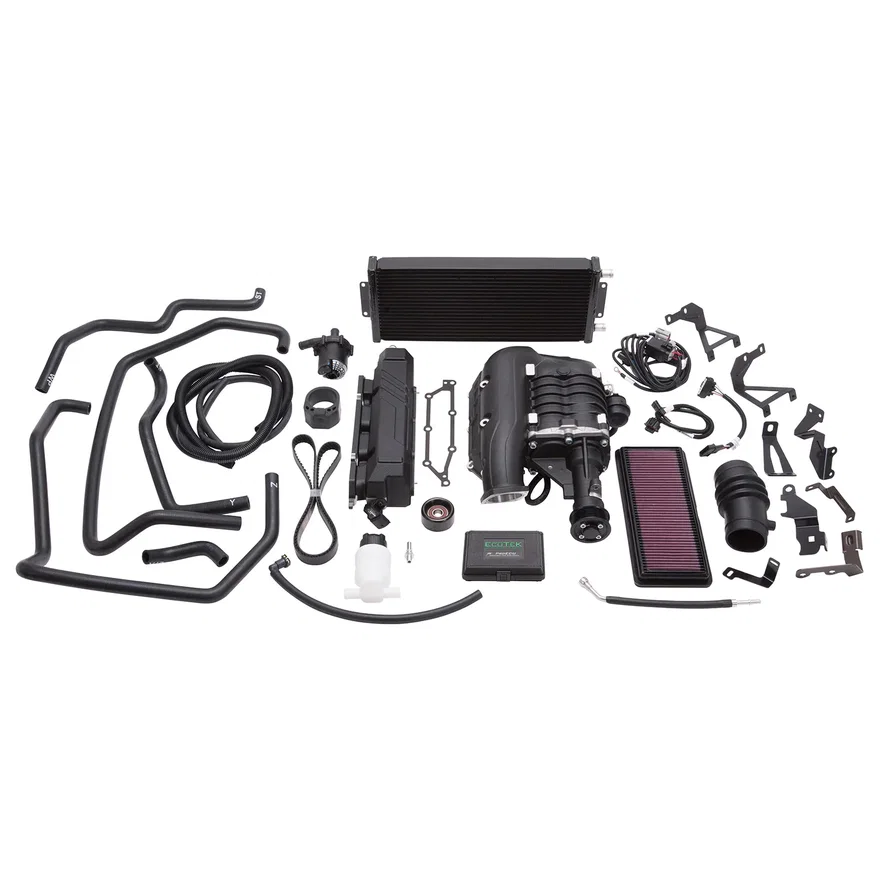

Edelbrock E-Force Supercharger for 2016-18 Mazda MX-5 Miata 2.0L

Part # 1554SKU EDE1554

Set your vehicle above for a fit verdict. 1 vehicle listed below.

Specifications
BrandEdelbrock
Part typeSupercharger Kit
Air Filter IncludedYes
CalibrationYes
Center Housing Cooling TypeIntercooler
FinishBlack Powder Coated
Gasket Or Seal IncludedYes
Harmonic Balancer DiameterStock
Hose IncludedYes
Housing MaterialCast Aluminum
Internal Step UpYes
Maximum Boost Pressure8.25 PSI
Maximum Horsepower198RW
Maximum Pressure Reading8.25 PSI
Maximum Torque182RW
Mounting Bracket IncludedYes
Mounting Hardware IncludedYes
Oil Capacity125 mL
Outside Pulley Diameter2.75 in
Pulley Belt Width6-Rib
QuantityKit
Rotor TypeEaton TVS 900
System TypeStage 1 - Street System
Universal Or Specific FitSpecific
Vehicle ModelMiata MX-5
UPC / GTIN00085347015542

Description

The Edelbrock Stage 1 Street Supercharger system part #1554 for 2016-18 Mazda MX-5 Miata increases the performance of your SKYACTIV -G 2.0L engine to 198 RWHP and 182 ft-lbs of torque at the rear wheels. Its unique design utilizes the Eaton R900 TVS rotor assembly for maximum efficiency in a compact package. An air-to-water intercooler and front mount heat exchanger deliver a cool, dense air charge resulting in dramatically improved performance with a smooth and linear power curve. The supercharger assembly is finished with a durable black powder coating that integrates seamlessly into the Miata engine bay. For safety, the Edelbrock-supplied program will retain the factory vehicle speed limiter setting. Increases horsepower by 41% and torque by 36% over stock. Unique compact design fits under the stock hood. Supplied with preformed hoses for ease of installation - no trimming needed. Bolt-on installation - everything fits right out of the box with no cutting or welding needed. Features Eaton Gen VI R900 TVS rotor assembly

Fits these vehicles 1

YearMakeModelEngine
2016 - 2018MazdaMX-5 Miata2.0L 122 I4
