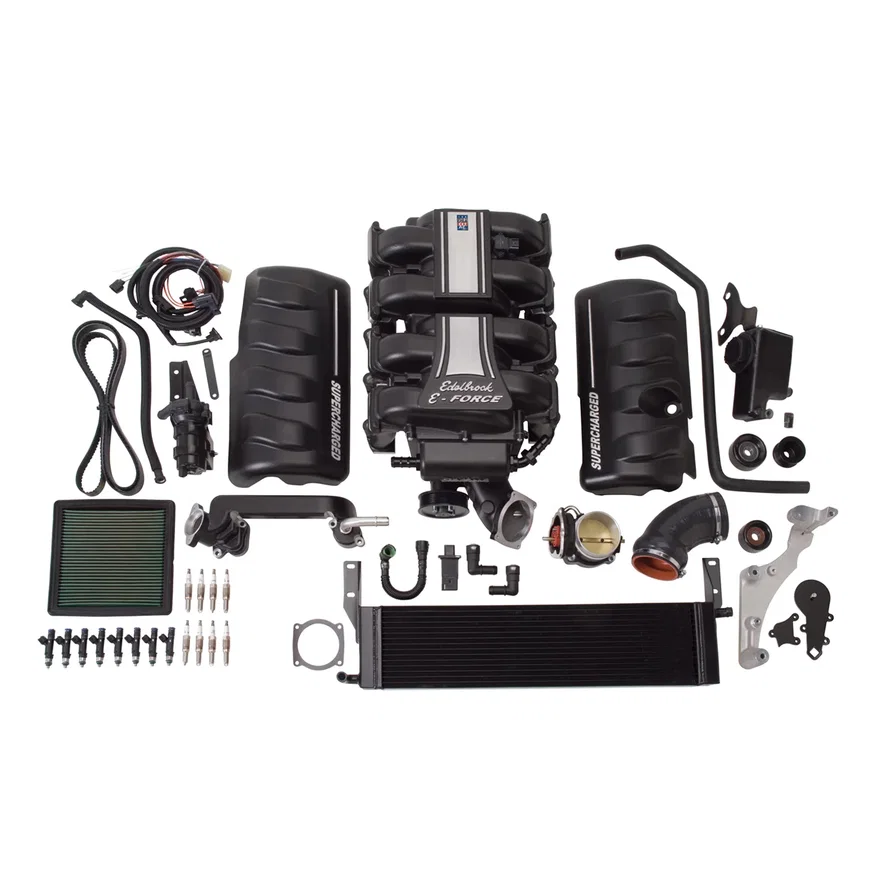

Edelbrock E-Force Supercharger for 2005-09 Mustang GT 4.6L 3V - Stage 1 (no Tune)

Part # 15800SKU EDE15800

Set your vehicle above for a fit verdict. 1 vehicle listed below.

Specifications
BrandEdelbrock
Part typeSupercharger Kit
Air Filter IncludedYes
CalibrationNo
Center Housing Cooling TypeIntercooler
FinishBlack Powder Coated
Fuel Injector Type41
Gasket Or Seal IncludedYes
Harmonic Balancer Diameter6.67 in
Hose IncludedYes
Housing MaterialCast Aluminum
Internal Step UpYes
Mounting Bracket IncludedYes
Mounting Hardware IncludedYes
Oil Capacity150 mL
Outside Pulley Diameter3.875 in
Pulley Belt Width6-Rib
QuantityKit
Rotor TypeEaton TVS 2300
Spark Plugs IncludedYes
System TypeStage 1 - Street System
Universal Or Specific FitSpecific
Vehicle ModelMustang
UPC / GTIN00085347158003

Description

The Edelbrock supercharger Stage 1 Street system part #15800 for 2005-09 Ford Mustangs increases the performance of your 4.6L 3V engine to 466 horsepower and 439 ft-lbs of torque at the crank when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

Fits these vehicles 1

YearMakeModelEngine
2005 - 2009FordMustang4.6L 281 V8
