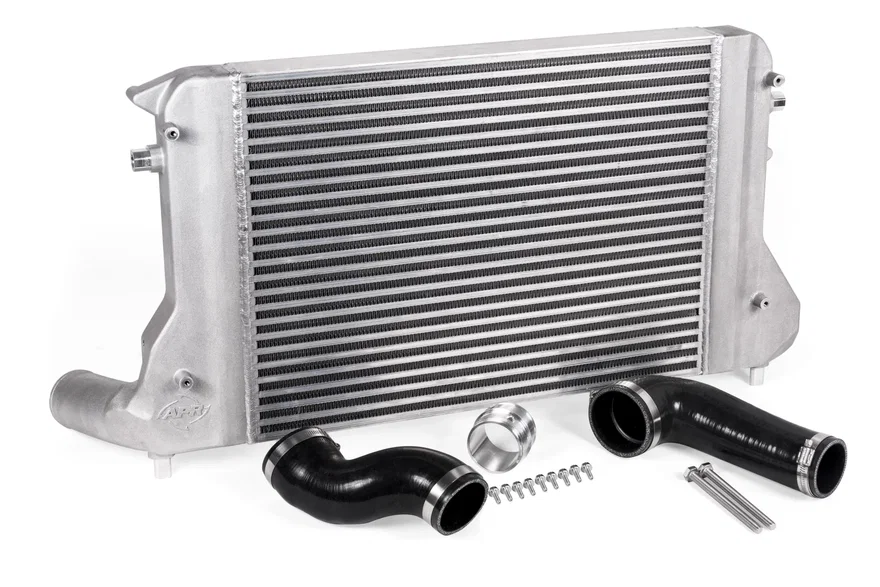

APR Intercooler System - 1.8T/2.0T EA113 / EA888 G1/2 MK5/6
Part # IC100012SKU APRIC100012
Set your vehicle above for a fit verdict. 15 vehicles listed below.
| Brand | APR |
|---|---|
| Part type | Intercooler |
| Brand | APR |
| Category | Belts and Cooling |
| Color | Silver / Natural |
| Cooler Type | Air to Air |
| Core Frontal Area | 357.50 sq.in. |
| Core Height | 16.25 in |
| Core Type | Bar and Plate |
| Core Volume | 804.38 cu.in |
| Core Width | 2.25, 22 in |
| Direct Fit | Yes |
| Emission Code | 7 |
| End Tank Construction | Cast |
| End Tank Material | 356-F Aluminum |
| Hose Clamp Type | T-Bolt |
| Hose Type | Silicon |
| Product Type | Intercooler Systems |
| Sub Category | Radiators, Coolers and Related Components |
| Version | EA113, EA888.1, & EA888.2 |
| Welding Type | TIG |
| UPC / GTIN | 00810904030627 |
| Warranty | Warranted to be free from defects in the materials and workmanship prior to installation |
- Dramatically lowers intake air temperature
- Increases horsepower and torque while prolonging performance
- APR intercooler core dimensions: 2.25" x 16.25" x 22"
- 40% larger than stock
- Larger inlets and outlets
- Pressure tested for leak proof operation
- Smooth cast aluminum end tanks
- Barbed hose connection points for a slip proof fit
- Machined mounting points for extra weight savings
- CNC machined billet adapter
- Multi Ply Silicone Hoses with APR's EZ-Flow stepped design
- Direct OEM fitment with no trimming necessary
- Full install directions and APR's world-renowned customer support
Description
The APR Intercooler System dramatically lowers charge air temperature and resists heat soak far better the factory intercooler system. Through a massively increased core volume, superior intercooler core design and smooth, cast end tanks, APR's engineers were able to create an intercooler capable of supporting power levels well beyond that of the factory unit. Expect increased horsepower and torque and dramatically prolonged performance.
More from APR
| IC100028 | $3,289.93 |
| IC100018 | $2,315.99 |
| IC100024 | $2,315.99 |
| IC100025 | $2,315.99 |
| IC100017 | $1,942.99 |
| IC100022 | $2,240.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2006 - 2009 | Audi | A3 | 2.0L 121 I4 |
| 2010 - 2013 | Audi | A3 | 2.0L 120 I4, 2.0L 121 I4 |
| 2009 - 2013 | Audi | A3 Quattro | 2.0L 121 I4 |
| 2008 - 2009 | Audi | TT | 2.0L 121 I4 |
| 2009 - 2015 | Audi | TT Quattro | 2.0L 121 I4 |
| 2009 - 2015 | Audi | TTS Quattro | 2.0L 121 I4 |
| 2012 | Volkswagen | Beetle | 2.0L 121 I4 |
| 2013 | Volkswagen | Beetle | 2.0L 120 I4, 2.0L 121 I4 |
| 2009 - 2017 | Volkswagen | CC | 2.0L 121 I4 |
| 2007 - 2016 | Volkswagen | Eos | 2.0L 121 I4 |
| 2012 - 2013 | Volkswagen | Golf R | 2.0L 121 I4 |
| 2006 - 2014 | Volkswagen | GTI | 2.0L 121 I4 |
| 2006 - 2008 | Volkswagen | Jetta | 2.0L 121 I4 |
| 2009 - 2013 | Volkswagen | Jetta | 2.0L 120 I4, 2.0L 121 I4 |
| 2006 - 2010 | Volkswagen | Passat | 2.0L 121 I4 |
