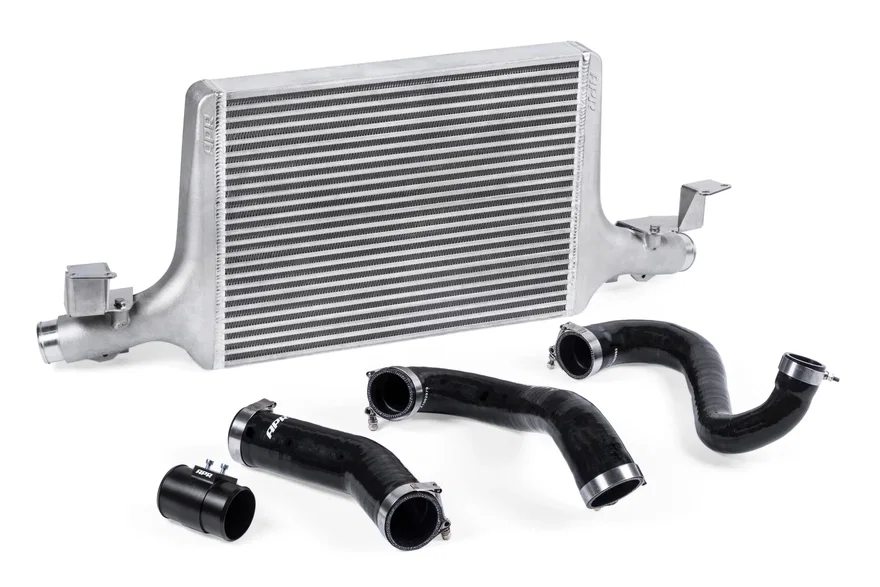

APR Intercooler System - B9 1.8/2.0 TFSI for Audi
Part # IC100022SKU APRIC100022
Set your vehicle above for a fit verdict. 4 vehicles listed below.
| Brand | APR |
|---|---|
| Part type | Intercooler |
| Brand | APR |
| Category | Belts and Cooling |
| Color | Silver / Natural |
| Cooler Type | Air to Air |
| Core Frontal Area | 357.50 sq.in. |
| Core Height | 16.25 in |
| Core Type | Bar and Plate |
| Core Volume | 804.38 cu.in |
| Core Width | 2.25, 22 in |
| Direct Fit | Yes |
| Emission Code | 7 |
| End Tank Construction | Cast |
| End Tank Material | 356-F Aluminum |
| Hose Clamp Type | T-Bolt |
| Hose Type | Silicon |
| Product Type | Intercooler Systems |
| Sub Category | Radiators, Coolers and Related Components |
| Version | B9 2.0T (A4/A5) |
| Welding Type | TIG |
| UPC / GTIN | 00810904030689 |
| Warranty | Warranted to be free from defects in the materials and workmanship prior to installation |
- Dramatically lowers intake air temp (IAT)
- Increases HP while minimizing power-robbing heat soak!
- Retained as high as 45 AWHP compared to the factory system!
- Massive frontal surface area and core volume
- 3.125" x 5.75" x 28.25" - 162.4 in² front. & 507.62 in³ volume - OEM
- 2.250" x 16.2" x 22.00" - 356.4 in² front. & 801.90 in³ volume - APR
- Highly effective core design
- Bar-and-plate core with staggered and louvered fins.
- Rigorous testing determined core style, fin density, and size.
- Low pressure drop + highly effective cooling = high performance!
- Smooth cast end tanks
- Engineered for low turbulence/restriction and maximum flow
- Organically shaped to promote airflow across entire core.
- Pressure tested to prevent power robbing boost leaks.
- Silicone inlet and outlet hoses
- Multi-ply silicone design with internal wire reinforcement, fluorosilicone internal protective layer and APR's EZ-Flow stepped design.
- Clampco T-bolt clamps
- Strong, stainless-steel Clampco T-Bolt clamps provide better clamping for increased protection against hose slippage and boost leaks.
- Billet MAP housing
- Precision CNC-machined for secured sensor placement with an attractive matte-black anodized finish.
- Easy to install
- Simple bolt-on install with no trimming or drilling necessary!
- Designed by engineers with lasers
- With the best equipment and smartest engineers, it just works!
Description
The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.
More from APR
| IC100028 | $3,289.93 |
| IC100012 | $2,315.99 |
| IC100018 | $2,315.99 |
| IC100024 | $2,315.99 |
| IC100025 | $2,315.99 |
| IC100017 | $1,942.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2017 - 2020 | Audi | A4 | 2.0L 121 I4 |
| 2017 - 2020 | Audi | A4 Quattro | 2.0L 121 I4 |
| 2018 - 2020 | Audi | A5 Quattro | 2.0L 121 I4 |
| 2018 - 2020 | Audi | A5 Sportback | 2.0L 121 I4 |
