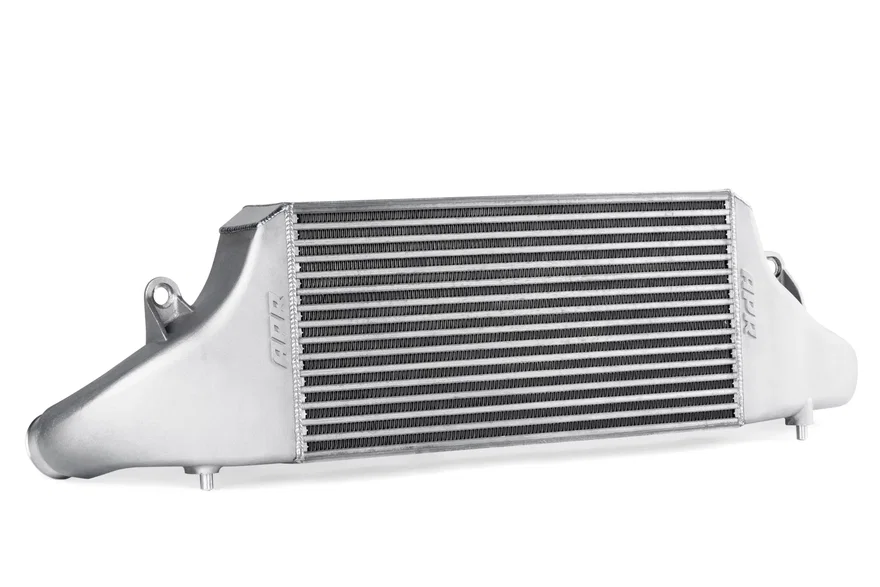

APR Intercooler System - 2.5 TFSI EVO (TT RS) for Audi TT RS Quattro
Part # IC100025SKU APRIC100025
Set your vehicle above for a fit verdict. 1 vehicle listed below.
| Brand | APR |
|---|---|
| Part type | Intercooler |
| Brand | APR |
| Category | Belts and Cooling |
| Color | Silver / Natural |
| Cooler Type | Air to Air |
| Core Frontal Area | 228.80 sq.in. |
| Core Height | 10.4 in |
| Core Type | Bar and Plate |
| Core Volume | 800.80 cu.in |
| Core Width | 22, 3.5 in |
| Direct Fit | Yes |
| Emission Code | 7 |
| End Tank Construction | Cast |
| End Tank Material | 356-F Aluminum |
| Product Type | Intercooler Systems |
| Sub Category | Radiators, Coolers and Related Components |
| Version | TT RS |
| Welding Type | TIG |
| UPC / GTIN | 00810009930976 |
| Warranty | Warranted to be free from defects in the materials and workmanship prior to installation |
- Dramatically lowers intake air temp (IAT)
- Increases HP while minimizing power-robbing heat soak!
- Dynoed 26 AWHP over to the factory system (STG 1 93)!
- Effective cooling for more than double factory horsepower levels!
- Massive frontal surface area and core volume
- 6.38" x 25.33" x 3.16" - 161.6 in² front. & 510.67 in³ volume - OEM
- 10.4" x 22.00" x 3.50" - 228.8 in² front. & 800.8 in³ volume - APR
- Highly effective core design
- Bar-and-plate core with staggered and louvered fins.
- Rigorous testing determined core style, fin density, and size.
- Low pressure drop + highly effective cooling = high performance!
- Smooth cast end tanks
- Engineered for low turbulence/restriction and maximum flow.
- Organically shaped to promote airflow across entire core.
- Pressure tested to prevent power robbing boost leaks.
- Easy to install
- Simple plug-and-play design with no trimming or drilling necessary!
- Designed by engineers with lasers
- With the best equipment and smartest engineers, it just works!
Description
The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.
More from APR
| IC100012 | $2,315.99 |
| IC100022 | $2,240.99 |
| IC100023 | $2,240.99 |
| IC100028 | $3,289.93 |
| IC100018 | $2,315.99 |
| IC100024 | $2,315.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2018 - 2022 | Audi | TT RS Quattro | 2.5L 151 I5 |
