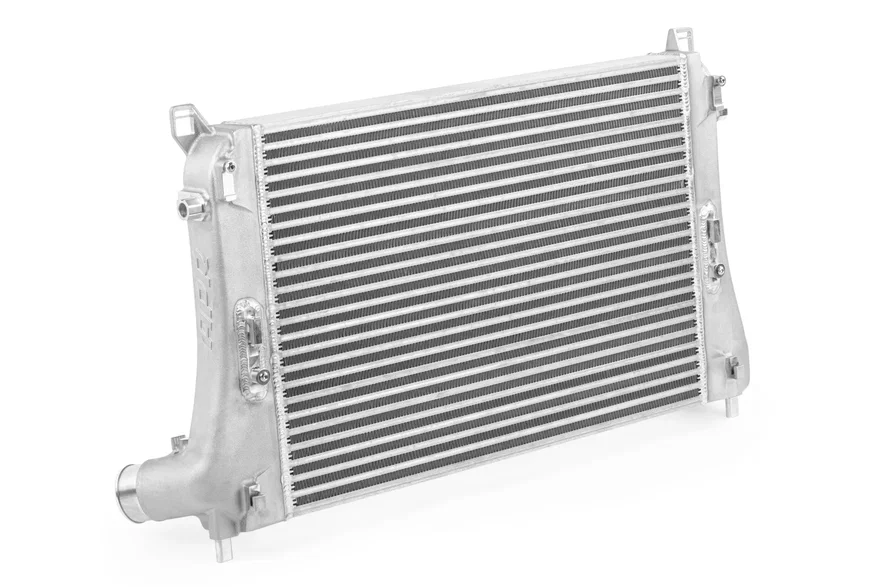

APR Intercooler System - MQB 2.0T (8SPD) (Tiguan/Arteon/Q3)
Part # IC100029SKU APRIC100029
Set your vehicle above for a fit verdict. 3 vehicles listed below.
| Brand | APR |
|---|---|
| Part type | Intercooler |
| Brand | APR |
| Category | Belts and Cooling |
| Color | Silver / Natural |
| Cooler Type | Air to Air |
| Core Frontal Area | 390.00 sq.in. |
| Core Height | 16.25 in |
| Core Type | Bar and Plate |
| Core Volume | 877.50 cu.in |
| Core Width | 2.25, 24 in |
| Direct Fit | Yes |
| Emission Code | 7 |
| End Tank Construction | Cast |
| End Tank Material | 356-F Aluminum |
| Product Type | Intercooler Systems |
| Sub Category | Radiators, Coolers and Related Components |
| Version | 8 Speed Tiptronic |
| Welding Type | TIG |
| UPC / GTIN | 00810009934998 |
| Warranty | Warranted to be free from defects in the materials and workmanship prior to installation |
- Dramatically lowers intake air temp (IAT)
- -- Increases horsepower while minimizing power-robbing heat soak!
- -- Effectiveness tested to over 500 HP!
- -- 21 horsepower gain over the factory system!
- Massive core size
- -- Use of the OEM-location allows for a massive intercooler core.
- -- 24.25" x 16.25" x 1.16" - 457.1 in³ - OEM Tiguan
- -- 24.25" x 16.25" x 1.25" - 492.5 in³ - OEM MK7 GTI
- -- 24.25" x 16.25" x 1.37" - 529.8 in³ - OEM MK7 Golf R (Similar to Arteon)
- -- 24.00" x 16.25" x 2.25" - 877.5 in³ - APR
- Intercooler installed in the best location for this platform
- - Utilizes factory air dams for exceptional airflow across the core.
- - 100% compatible with the Adaptive Cruise Control (ACC) system.
- Highly effective core design
- -- Bar-and-plate core with staggered and louvered fins.
- -- Rigorous testing determined core style, fin density, and size.
- -- Low pressure drop + highly effective cooling = high performance!
- Smooth cast end tanks
- -- Engineered for low turbulence/restriction and maximum flow.
- -- Organically shaped to promote airflow across entire core.
- -- Pressure tested to prevent power robbing boost leaks.
- -- No hidden labor costs or permanent modifications
- No trimming, cutting, or other costly modification required.
- -- No modification to the Adaptive Cruise Control System required.
- -- Full directions and APR world-renowned customer support included.
- Designed by engineers with lasers
- -- With the best equipment and smartest engineers, it just works!
Description
The APR Intercooler System is a OEM-location upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is a direct bolt-on upgrade that requires no trimming and is recommended at every stage of performance.
More from APR
| IC100012 | $2,315.99 |
| IC100022 | $2,240.99 |
| IC100023 | $2,240.99 |
| IC100028 | $3,289.93 |
| IC100018 | $2,315.99 |
| IC100024 | $2,315.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2019 - 2025 | Audi | Q3 | 2.0L 121 I4 |
| 2019 - 2021 | Volkswagen | Arteon | 2.0L 121 I4 |
| 2018 - 2024 | Volkswagen | Tiguan | 2.0L 121 I4 |
